Specifications
Brand Name :
VOBEN
Model Number :
30-60 mesh(35S)
Place of Origin :
China
MOQ :
20 MTS
Price :
US$220-500/MT FOB Qingdao
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5-10,000 MTS Per year
Delivery Time :
20days
Packaging Details :
25 kgs in plastic bag, 40 bags/Pallet ,1000kg/bag,
Certification :
ISO9001
Color :
White or Gray
AL2O3 Min :
43-46%
SIO2 :
50.5-52.5%
FE2O3 Max :
1.5-2.3%
B.D g/ccm :
2.5-2.55%
Refractory Index :
1750
Description

30-60 Mesh High-aluminum Mullite Refractory Sands for Mold Making of Investment Casting with Low Thermal expansion

1. Production Introduction and Application

The mullite refractory sand has high aluminum content, low iron content, small dust, reasonable particle size distribution, high bulk density, high temperature strength and low residual strength.

Available:10~16 mesh,16~30 mesh,30~60 mesh,60M,70 mesh,100 mesh,200 mesh,325 mesh.other sizes can be customized.

Mainly used in the aluminum smelting industry, refractory materials, precision casting , aluminum silicate refractory fiber and ceramic industry.

We have different grades of refractory sands for you to choose.

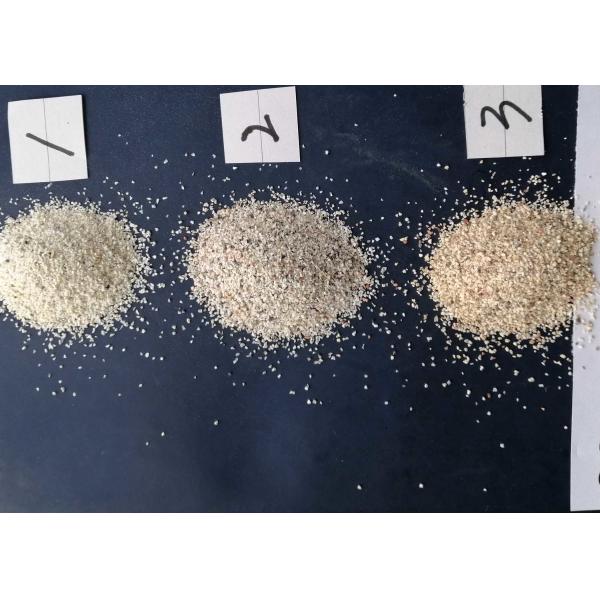

30-60mesh Grade I

Customizable Refractory Sand , 30 - 60 Mesh High Aluminum Mullite Sand

30-60Mesh Grade II

Customizable Refractory Sand , 30 - 60 Mesh High Aluminum Mullite Sand

30-60MESH Grade III

Customizable Refractory Sand , 30 - 60 Mesh High Aluminum Mullite Sand

Customizable Refractory Sand , 30 - 60 Mesh High Aluminum Mullite Sand

2. Specification of refractory sand

The Physical and chemical indicators
Grade Fe2O3%
max		 AL203%
min		 SiO2%
min		 TiO2%
max		 B.Dg/ccm
min		 Refractoriness
℃
A Prime Grade 1.20 46.00 50.50 0.70 2.55 1750
High Grade 1.50 44.00 51.50 0.90 2.53 1750
Normal Grade 2.30 43.00 52.50 1.00 2.50 1730
200 mesh
200 mesh 90% min
22S (16---30 mesh)
16-12 mesh 1.18-1.70mm 25-35%
20-16 mesh 0.85-1.18mm 40-50%
30-20 mesh 0.60-0.85mm <25%
50-30 mesh 0.30-0.60mm 0.02%
—50 mesh 0.00-0.30mm 0.04-0.06%
35S (30-60 mesh)
50-30 mesh 0.30-0.60mm 65-75%
80-50 mesh 0.18-0.30mm 1.00%
—80 mesh 0.00-0.18mm 0.04-0.06%

3. Process of making shell

Customizable Refractory Sand , 30 - 60 Mesh High Aluminum Mullite Sand

4. Our company

Our mine company was established in September 2003, and Qingdao Jinjunxuan International Trade Co.,ltd is an trade company combined with production, processing and sale. Its main products include flint clay, high bauxite, synthetic mullite precision foundry sand, refractory product, casting refractory material, refractory fiber and other refractory raw materials. The above products are used in many kinds of field including metallurgy, non-ferrous metal, generating electricity foundry and so on. The market covers many countries and areas in the world such as European Union, South Africa, Japan, Australia, Thailand, Malaysia India, China Taiwan and also more than ten cities in China
