High-alumina Cement of Refractory Products with Low Content of FE2O3 For Rush Construction

1.Products description

High-alumina cement is a rapid-hardening cement made by fusing at 1,500° to 1,600° C (2,730° to 2,910° F) a mixture of

bauxite and limestone in a reverberatory or electric furnace or in a rotary kiln. It also can be made by sintering at about 1,250° C (2,280° F).

High aluminum cement is produced by preparing raw material consisting of applicable bauxite and limestone, burning the raw

meaterial and grinding into cement.

The high aluminum cement can resist a high temperature at which a relative high temperature at which a relative high strength

still remains.Its refractoriness increases with the content of CA2. Therefore it is suitable to make refractory concrete as a binder.

Depending on the refractory aggregate(fireclay,high aluminum)used,the refractory concrete made of the cement can be used

below 1400°C.

We can supply some derivative products of aluminatum cement series according to requirements of special engineerings.

Character :

1. Quick hardening and early strengthening

2. Used in urgent repairing

3. Used in the project under construction in winter

4. Sound anti-corrasion from sulfate effect

5. Anti-freezing

6. High purity

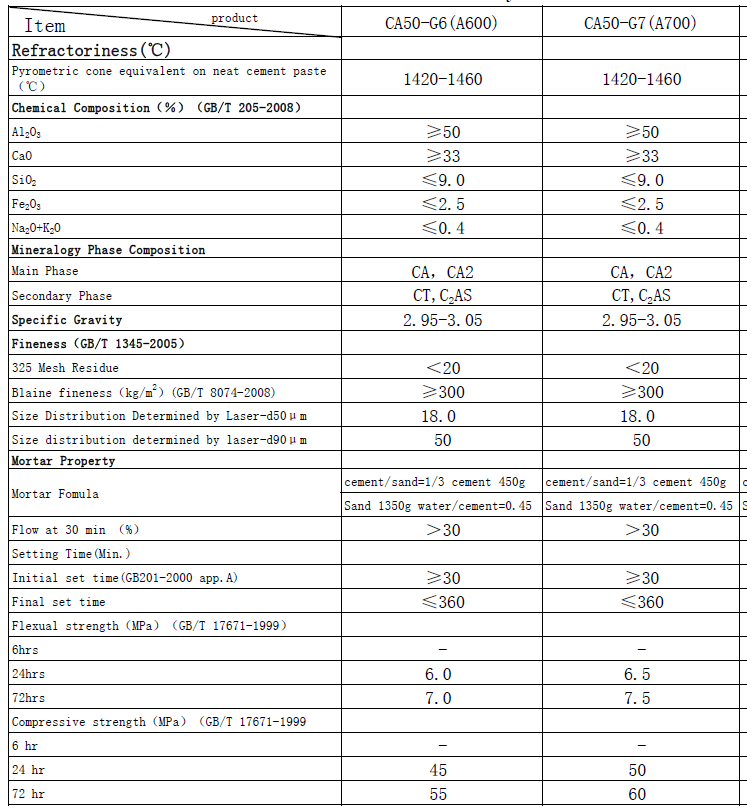

2.technical index

3.Application

A. Construction of sulfate corrosion resistance and high temperature proof.

B. Used in rush repairs, leakage stopping , resistance to sulfate attack.

C. Ideal binder for refractories such as refractory concrete, refractory castable, ramming mixing, gunning mixing and manmade marble bricks.

D. Used as ceramic adhesive.

E. Used for sealing coating products and refractory mortar.

F. Used in chemical industry, metallurgical industry, building materials.

G. Used for road, bridge maintenance .
