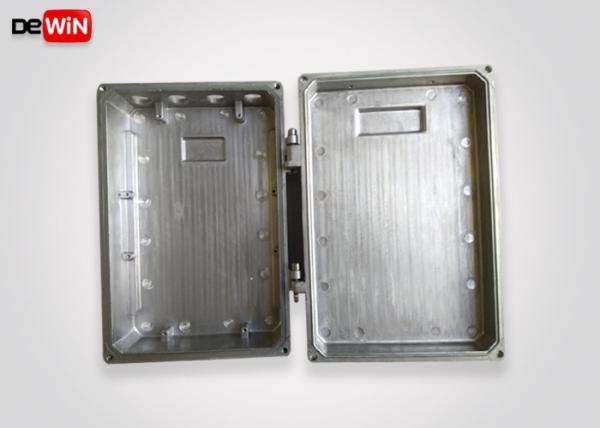

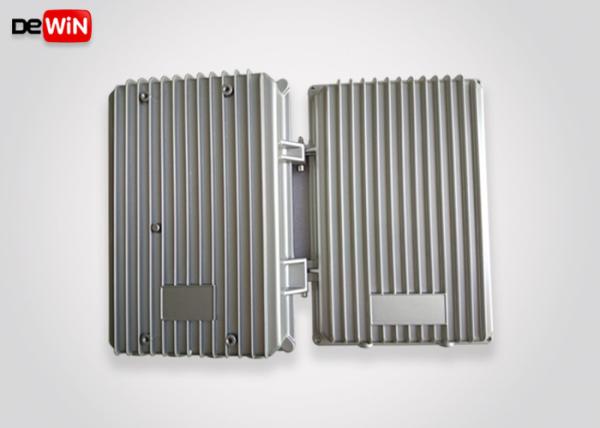

Customized ADC12 A380 Aluminum alloy die casting heatsink shell

Description

The heatsink shell is an aluminum die cast. This part uses a lightweight frame, end plates and heat sinks, lower operating temperatures and motor vibration to extend motor life.

Aluminum die casting heatsink housing is a kind of pressure casting part. The aluminum or aluminum alloy that is heated in the liquid state is poured into the material inlet of the die casting machine. The die casting machine is used for die casting to cast the die. The limited shape and size of aluminum parts or aluminum alloy parts, such parts are often called aluminum die castings.

Product Specification

Feature:

The material is melted in high temperature and become liquid status, then we pour it into the mould,. After cooling down, the product could be finished easily. We will take good care during the cooling process to avoid the bubble occurs. There’s wide range of shape for heat sink in die-casting process.

In addition, if the quantity is huge enough, the cost would me much cheaper.
Many complicated metal components are produced by this process.

● High structural integrity

● Smooth cast surface

● Reduce or eliminate secondary machining operation

● Rapid production rate

Application

Aluminum die castings are used in tractor arm accessories, automobile parts, motorcycle parts, motor housings, oil pump parts, transmission machinery housings and other aluminum die-casting housings, aluminum die-casting covers, and other decorative accessories.

Advantage

(1) Aluminum die casting has good fluidity and is suitable for the production of thin-walled parts. For example, Led lamp radiator shell, led street lamp shell, etc. Because the secondary processing of the die casting is less, the production efficiency is also faster.

(2) It can produce metal parts with complex shapes, clear outlines and thin walls and deep cavities. Since the molten metal maintains high fluidity at high pressure and high speed, it is possible to obtain metal parts that are difficult to process by other processes.

Any aluminium die casting parts are customized according to the clients’ drawing or samples.

(3) High material utilization rate. Due to the high precision of die castings, they can be assembled and assembled with a small amount of machining, and some die castings can be assembled directly. Its material utilization rate is about 60%--80%, and the blank utilization rate is 90%.
(4) High production efficiency. Due to the high-speed filling, the filling time is short, the metal industry solidifies quickly, and the cycle speed of the die-casting operation is fast. Among various casting processes, the die casting method has the highest productivity and is suitable for mass production.
(5) Convenient use of inserts. It is easy to set the positioning mechanism on the die-casting mold to facilitate the inlaying of the inserts and meet the special performance requirements of the die-casting parts.

Process

1, Sign Drawing (General clients provide the drawing or samples)

2, Opening the Mould

3, Die Casting ( Aluminium or Aluminium Alloys)

4, Precision Machining (Burring, Lathe, Milling, etc)

5, Surface treatment: Polishing, Electroplating, Sandblasting, Anodizing

Competitive

1. We provide products with good quality at best price for clients in quick delivery.
2. 100% custom pass guaranteed.
3. Always immediate and best after-sale service.
4. Flexible and negotiable payment terms.
5. Our clients distribute widely, like in UK, France, Germany, Norway, Poland, Finland, Spain, Russia,USA, Canada, Brazil, Mexico, Australia, Japan, Thailand, Indonesia, Uruguay and many other countries.

Packaging

Inside Packing: 1 Pieces per Vacuum Plastic bubble paper.

External Packing: 500-1000 Pieces per Hard Carton

Shipment Packing: 10-20 Cartons per Wooden Case or Pallet

Shipping Term: By Air, Land, Sea.

Trade Term: FOB, CFR, CIF, EXW
