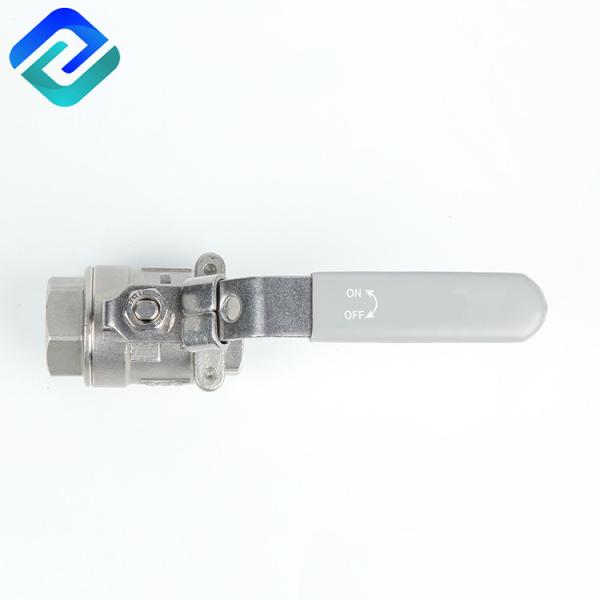

Manual BSP Thread 2PC Ball Valve Cf8m 1000 Wog Sandblasting Iso9001
Manual BSP Thread 2PC Ball Valve Cf8m 1000 Wog Sandblasting Iso9001
Specifications
Brand Name :
Cencho
Model Number :
1/4''- 4''
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
CF8/CF8M/WCB
Medium :
Water Oil Gas
Connection :
Thread
Pressure :
1000PSI (PN16)
Working Temperature :
-25℃+180℃
Power :
Manual
Port Size :
1/4''- 4''
Inspection Testing :
API 598,EN 12266
Technology :
Investment Casting
Structure :
Ball
Packing :
Wooden case
Surface Treatment :
Sandblasting/acid Pickling
Description

Stainless Steel Casting NPT/BSP Threaded 2PC Ball Valve

1. Stainless steel 2PC ball valve and flange gate valve belong to the same type of valve. The difference is that its closing part is a ball. The ball rotates around the center line of the 2PC ball valve body to open and close the valve.

2. 2PC ball valve is mainly used to cut off, distribute and change the flow direction of medium in pipeline.

3. 2PC ball valve and 3PC ball valve are widely used in recent years.

Three advantages of stainless steel 2PC ball valve:

1. Stainless steel 2PC ball valve has the advantages of simple structure, small volume and light weight.

2. The flow resistance of stainless steel 2PC ball valve is small, and the 2PC ball valve with full diameter basically has no flow resistance.

3. When the 2PC ball valve is fully opened or closed, the sealing surface of the ball and valve seat is isolated from the medium, and the medium will not cause the erosion of the valve sealing surface.

Material List

ITEM PART MATERIAL QTY
1 BODY A216-WCB A351-CF8 A351-CF8M 1
2 SEAT PTFE/RPTFE 2
3 BALL 304 304 316 1
4 GASKET PTFE 1
5 CAP A216-WCB A351-CF8 A351-CF8M 1
6 STEM 304 304 316 1
7 THRUST WASHER PTFE 1
8 PACKING PTFE 1
9 GLAND NUT 304 304 304 1
10 HANDLE 304 304 304 1
11 SPRING WASHER 304 304 304 1
12 NUT 304 304 304 1
13 LOCK 304 304 304 1
14 HANDLE COVER PLASTIC 1

Dimension Table

SIZE Φ d L H W N.M KGS
DN6 1/4” 12.5 50 49 106 4 0.19
DN10 3/8” 12.5 50 49 106 4 0.19
DN15 1/2” 15 56 52 106 5 0.27
DN20 3/4” 20 66 57 115 8 0.40
DN25 1” 25 80 73 148 10 0.67
DN32 1-1/4” 32 91 79 148 14 1.00
DN40 1-1/2” 38 99 84 182 24 1.28
DN50 2” 50 122 97 182 40 2.08
DN65 2-1/2” 65 147 127 251 48 3.84
DN80 3” 76 172 136 251 80 5.71
DN100 4” 94 222 158 283 103 10.70

Drawing

Manual BSP Thread 2PC Ball Valve Cf8m 1000 Wog Sandblasting Iso9001

FAQ

Q:What abount the lead time for mass production?

A:Honestly,it depends on the order quantity and your specific requirements of products.

Q.What are your quality control procedures?

A: We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.

Q: Are you trading company or factory?

A: We're factory and worked in stainless steel products with more than one decade, OEM ODM are all available for us.

Q: Which payment term you accept?

A: T/T or L/C

Q: How long is your delivery time?

A: Normally 15-30 workdays
