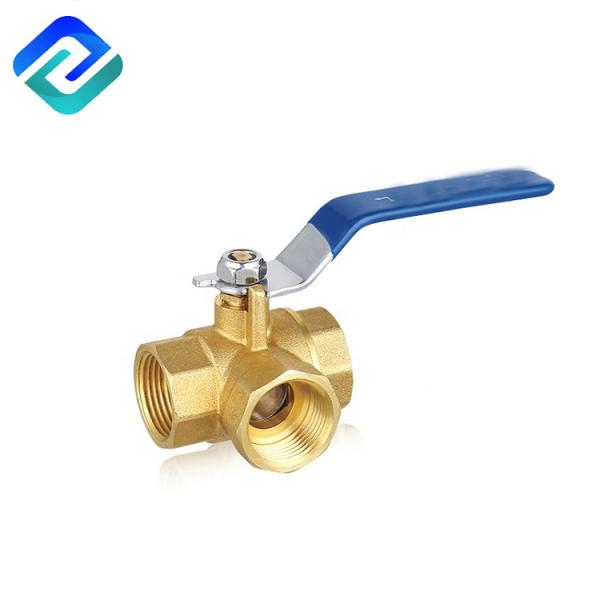

Brass Investment Casting Stainless Steel 3 Way Valve CuZn39Pb3 L Pattern ISO228
Brass Investment Casting Stainless Steel 3 Way Valve CuZn39Pb3 L Pattern ISO228
Brass Investment Casting Stainless Steel 3 Way Valve CuZn39Pb3 L Pattern ISO228
Brass Investment Casting Stainless Steel 3 Way Valve CuZn39Pb3 L Pattern ISO228
Specifications
Brand Name :
Cencho
Model Number :
1/4''--4''
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
Brass
Medium :
Water Oil Gas
Number of ways :
Three way L port
Connection :
Thread
Pressure :
1000PSI (PN63)
Sealing Material :
PTFE
Working Temperature :
-25℃+180℃
Power :
Manual
Color :
Yellow Brass Color
Inspection Testing :
API 598,EN 12266
Description

L-Pattern Brass Investment Casting SS Three Way Ball Valve

1. The SS three way Ball valve is available in T-Port SS three way Ball valve and L-Port SS three way Ball valve configurations completing the range of Threaded Full Port SS three way Ball valve for Brewing.

2. The T-Port SS three way Ball valve is allows flow in all 3 ports or it allows Flow in two ports only. Where as the L-Port SS three way Ball valve allows flow in a 2 directions in a L formation and it allows no flow at all .

3. Making this a Specialized 1/2" SS three way Ball valve necessary for anyone who wants to direct Flow in 3 lines.

Specifications

1. Material
SS three way ball valve Body :Brass CuZn39Pb3 according to EN12164 or EN12165
SS three way ball valve Stem: Brass CnZn39Pb3 according to UNI-EN12164
Stem Sealing Ring: NBR 70

2. Size
1/2" 3/4 "
3. Surface
Yellow brass color
4. Point
Thread: ISO228 ( Equivalent to DIN259 and BS2779)
Min and Max working temperature : -10 ≤ to ≤ 120 °C


Dimension Table

SIZE Φd L H W h L1 J ISO5211 L2 N.M KGS
DN6 1/4’’ 9.5 75 66 130 36.8 37.5 9 F03/F04 57.5 8 0.71
DN10 3/8’’ 11 75 66 130 36.8 37.5 9 F03/F04 57.5 8 0.68
DN15 1/2’’ 12 75 66 130 36.8 37.5 9 F03/F04 57.5 8 0.64
DN20 3/4’’ 15 85 72 161 41.2 42.5 11 F04/F05 65.5 9 0.95
DN25 1’’ 20 100 77 161 46.5 50 11 F04/F05 79 15 1.40
DN32 1-1/4’’ 25 122 92 203 56 61 14 F05/F07 97 20 2.90
DN40 1-1/2’’ 32 131 96 203 60 65.5 14 F05/F07 106.5 30 3.65
DN50 2’’ 40 158 107 203 70.5 79 14 F05/F07 129 45 6.30
DN65 2-1/2’’ 49 178 135 254 95.5 89 17 F07/F10 145 60 8.96
DN80 3’’ 60 202 147 254 106 101 17 F07/F10 167 90 13.10
DN100 4’’ 75 246 160 310 119 123 17 F07/F10 203 120 22.11

Drawing

Brass Investment Casting Stainless Steel 3 Way Valve CuZn39Pb3 L Pattern ISO228


FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q:Do you have any MOQ limit for valve order?

A: Low MOQ, ball valve for sample checking is available.

Q:How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.

Q:When can I get the quotation?

A:We usually quote within 12 hours after we get your inquiry.If you are very urgent to get the price,pls call us or tell us in your email so that we will regard your inquiry priority.

Brass Investment Casting Stainless Steel 3 Way Valve CuZn39Pb3 L Pattern ISO228
