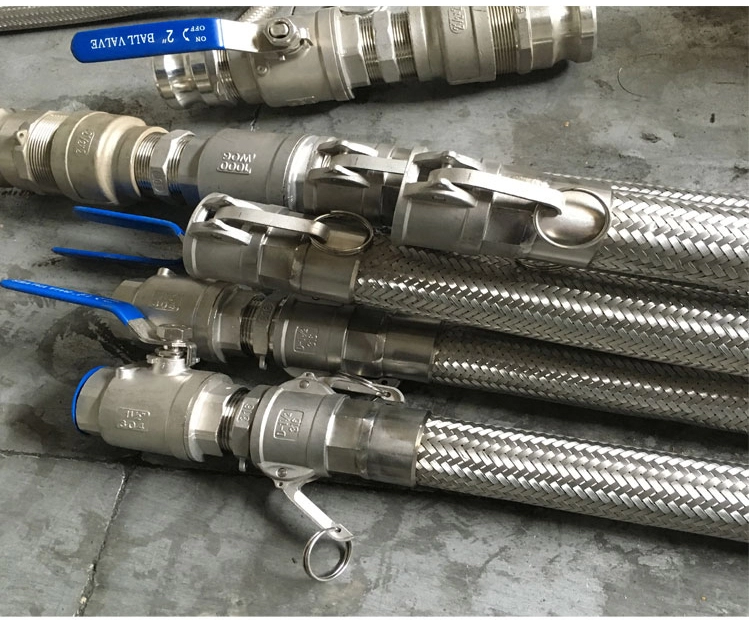

MIL Camlock Quick Connect 3 Inch Female Camlock Fitting Male Thread
MIL Camlock Quick Connect 3 Inch Female Camlock Fitting Male Thread
Specifications
Brand Name :
Cencho
Model Number :
1/2" - 12"
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
Stainless steel 304/316
Types :
A,B,C,D,E,F,DC,DP
Cam levers :
Stainless steel cam levers or brass cam levers
Pins, Rings and Safety clips :
We use steel plated Pins,Rings and Safety clips.
Threads :
NPT, BSP ( female thread parallel BSPP, male thread tapered BSPT)
Surface treatment :
Grind,Oidation,Sand blast
Port Size :
1/2" - 12"
Inspection Testing :
API 598,EN 12266
Locking Device :
Optional
Working Temperature :
65℉~6000℉ (-53℃~648℃)
Description

Steel A, B, C, D, E, F, DC, DP Camlock Quick Couplings

This is stainless steel camlock quick couplings . Camlock quick couplings also called cam and groove coupling, Camlock quick couplings is a kind of hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different liguids and a variety of sizes to accommodate hose or piping diameter.
Describe:
Material: made in Stainless Steel
Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8" etc
Thread: NPT, BSP(female thread parallel usually is BSPP, male thread tapered usually is BSPT)
Sealings' material: NBR, EPDM, Viton, PTFE envelop gasket
Standard: A - A-59326(previously called MIL-C-27487)or DIN 2828
Pressure: 6.4MPA
1X20GP container: 20 pallets can be loaded
Type:
Camlock quick couplings A, B, C, D, E, F, DC, DP(A, B, D, F with thread, B, C, D, DC with handles)
Type A: Male Adapter x Female
Type B: Female Coupler x Male
Type C: Female Coupler x Hose Shank
Type D: Female Coupler x Female
Type E: Male Adapter x Hose Shank
Type F: Male Coupler x Male
Type DC: Dust Cap
Type DP: Dust Plug
Remark: Can be customized.

Drawing:

MIL Camlock Quick Connect 3 Inch Female Camlock Fitting Male Thread

Packing

MIL Camlock Quick Connect 3 Inch Female Camlock Fitting Male Thread
