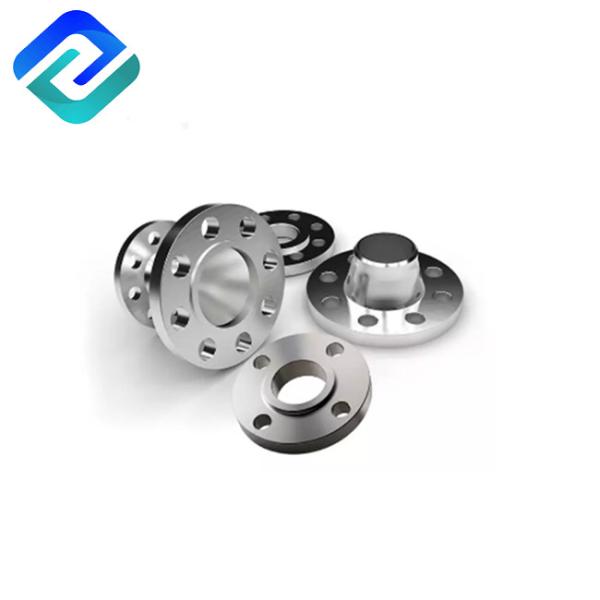

DN40 Socket Weld Pipe Flanges PN25 Weld Neck Raised Face Flange
DN40 Socket Weld Pipe Flanges PN25 Weld Neck Raised Face Flange
Specifications
Brand Name :
Cencho
Model Number :
DN15-DN1800
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
50pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
SS 316/316L
Dimensions :
DN15-DN1800
Connection :
Welding, Threaded
Standard :
ANSI, BS, DIN, GB, ISO, JIS, JPI, ASME
Surface treatment :
Rust-proof Oil,Black,Yellow
Logo Printing :
Customizable
Flange Tolerance :
Investment casting/Forged
Quality Control :
±0.01mm
Technique :
Casting stainless steel flange
Packing :
Wooden box
Description

DN25 DN40 DN80 DN100 DN150 DN600 Stainless Steel Flanges

1. Stainless steel flanges is a kind of disk-shaped parts, which is the most common in pipeline engineering.

2. Stainless steel flanges are used in pairs and with the matching stainless steel flanges on the valve. In pipeline engineering, stainless steel flanges is mainly used for pipeline connection. In the need to connect the pipeline, all kinds of installation of a stainless steel flanges, low-pressure pipeline can use thread stainless steel flanges, 4 kg pressure above the use of welding stainless steel flanges.

3. This kind of parts can be called "stainless steel flanges parts". But this kind of connection is only a part of the equipment, such as the connection between the stainless steel flanges and the water pump, it is not good to call the water pump "stainless steel flanges parts". Relatively small, such as valves, can be called "stainless steel flanges parts".

Meaning of PN

PN is the nominal pressure, which means that the unit is 0.1MPa in the international system of units and kgf / cm2 in the engineering system of units. Pipe stainless steel flanges commonly used bar (kgf / cm2, 1bar = 0.1MPa), equipment stainless steel flanges commonly used MPa.

The determination of nominal pressure should be based not only on the maximum working pressure, but also on the maximum working temperature and material characteristics, not only on the nominal pressure greater than the working pressure. Another parameter of flange is DN, which is the parameter of stainless steel flanges size

Product Name Class 150 Flange Dimensions Stainless Steel Flange Fitting Pipe Flange
Items Plate, Welding Neck, Slip on, Blind, Socket Welding, Lap joint, Threaded Flange etc.
Standard ANSI ANSI B16.5, ASME B16.47 series A/B
DIN Germany 6bar, 10bar, 16bar, 25bar, 40bar
GOST GOST 12820/12821/12836
EN1092-1 EN1092-01/05/11/12/13
JIS JIS B 2220-1984, KS B1503, JIS B 2216
BS4504 BS4504 BS10 Table D/E
Material ANSI CS A105, S235, Steel 20; SS 304/304L, 316/316L
DIN CS RST37.2, S235JRG, P245GH, P250GH; SS 304/304L, 316/316L
GOST CS Steel 20, 16MN, Q235
EN1092-1 CS RST37.2, S235JRG, C22.8
JIS SS400, SS 304/304L, 316/316L
BS4504 CS RST37.2, S235JRG, C22.8; SS 304/304L, 316/316L
Pressure ANSI Class 150, 300, 600, 900, 1500, 2500lbs
DIN PN6, PN10, PN16, PN25, PN40
GOST PN6, PN10, PN16, PN25, PN40, PN63, PN100
EN1092-1 PN6, PN10, PN16, PN25, PN40, PN63, PN100
JIS 5K, 10K, 16K, 20K, 30K, 40K
BS4504 PN6, PN10, PN16, PN25, PN40
Size ANSI 1/2 " - 80 "
DIN DN15-DN2000
GOST DN15-DN2000
EN1092-1 DN15-DN2000
JIS 15A-1500A
BS4504 DN15-DN2000

DN40 Socket Weld Pipe Flanges PN25 Weld Neck Raised Face Flange

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q:What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and

the courier cost.

Q:When can I get the quotation?

A:We usually quote within 12 hours after we get your inquiry.If you are very urgent to get the price,pls call us or tell us in your email so that we will regard your inquiry priority.

Q:How about your delivery time?

A: If you order items through RTS ( Ready To Ship ), it takes 15-25 days after receiveing your payment. Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order

Q:What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q: Which payment term you accept?

A: T/T or L/C
