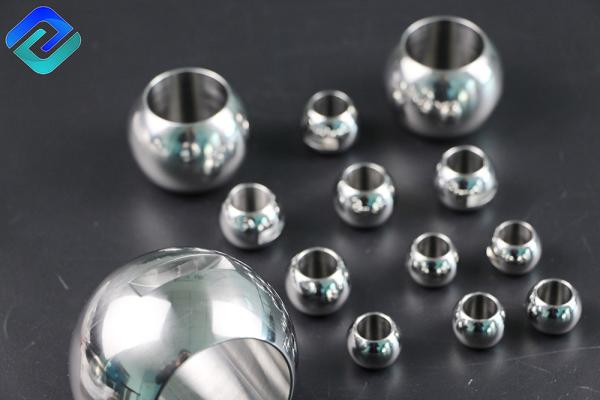

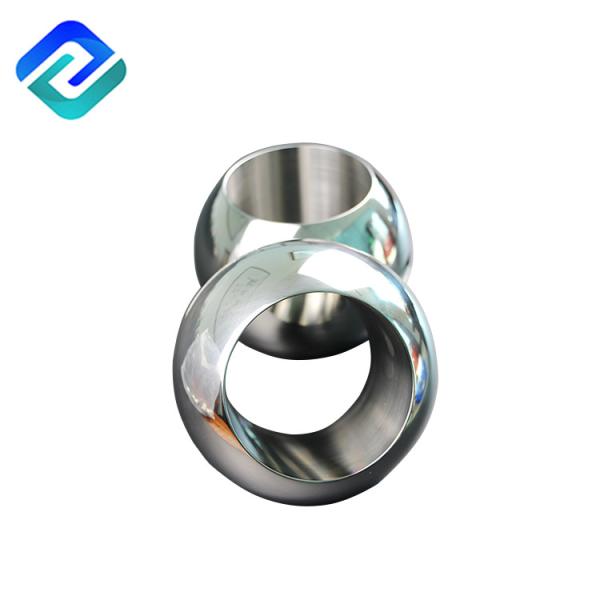

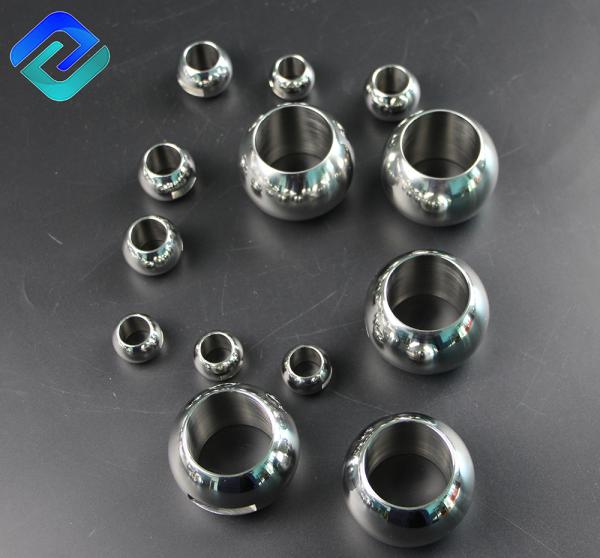

F316 Oilfield Stainless Steel Hollow Sphere 1.4301 Metal Hollow Ball
F316 Oilfield Stainless Steel Hollow Sphere 1.4301 Metal Hollow Ball
F316 Oilfield Stainless Steel Hollow Sphere 1.4301 Metal Hollow Ball
F316 Oilfield Stainless Steel Hollow Sphere 1.4301 Metal Hollow Ball
F316 Oilfield Stainless Steel Hollow Sphere 1.4301 Metal Hollow Ball
F316 Oilfield Stainless Steel Hollow Sphere 1.4301 Metal Hollow Ball
Specifications
Brand Name :
Cencho
Model Number :
V11-106
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
SS304,SS316
Size :
Normal
Type :
Valve ball
Color :
Sliver
Structure :
Hollow ball
Temperature :
Normal Temperature
Application :
Oilfield, Oil
Power :
Manual
Packing :
Carton Packing
Description

Hollow Ball For Valve Casting Ball Valve Accessories

1. This is valve ball, the ball can be divided into hollow ball and solid ball,they are all ball valve accessories. Ball valve accessories hollow ball is cheaper than soild ball.

2. The floating ball valve only has upper stem and the ball can have a slight displacement, so it is called floating ball valve.

3. As the ball is floating, so under the pressure of the medium, the floating ball (ball valve accessories) will move and against the downstream seat., so the seal of the floating ball valve belongs to the single-side seal.

4. The sealing of it is realized by the pressure of the medium,when the ball valve is closed, the floating ball(ball valve accessories) is pressed against the sealing surface under the action of pressure to realize sealing.

Ball valve accessories specifications:

Size:1/2″~56″

Ball valve accessories feature:

Material: F304, F316, CF8M, CF8, 1.4301 1.4008,4A …etc. by Forging and centrifugal casting

Roundness ≤0.03mm

Surface roughness=0.4μm

Outside diameter. 1/2″-4″ +-0.03 mm, 6″-12″+-0.05 mm (Outside diameter tolerance) Inner diameter 1/2″-4″ 0~0.03mm,6″~12″ 0~0.05mm (Inner diameter tolerance)

Material: Carbon Steel, Stainless Steel, Cryogenic steel, and Alloy steel. CF8, CF8M, 304, 316, 1.4401, 1.4301, ASTM A105, ASTM LF2, SS, A182 F304 (L), A182F316 (L),Duplex F51, F55, 17-4PH, Inconel 625, 690, 600, 617, 718, 718 SPF, Monel 1400, Monel R-405,Monel, K-500, Titanium Gr3, Gr4, Gr7,Incoloy 800, 825, 903, 907, Hastelloy C serial, Hastelloy B,09G2S….
Size: 1/4”, 1/2”, 3/4”, 1”, 1 1/4”, 1 1/2”, 2”, 2 1/2”, 3”, 4”, 4 1/2”, 5”, 6”, 7”, 8”, 9”, 10”, 12”, 14”, 16”, 18”, 20”, 22”, 24″, 26″, 28″, 30″, 32″, 34″, 36”, 38”, 40”, 42”, 44”, 46”, 48”, 50”, 56”.
Pressure: 150lb,300lb,600lb,900lb,1500lb,2500lb.
Processing of blank: Forging, centrifugal casting , coil welding
Sample making time: Normally 5days
Lead time: Normally within 30 days
Package: Cartons if no special requests

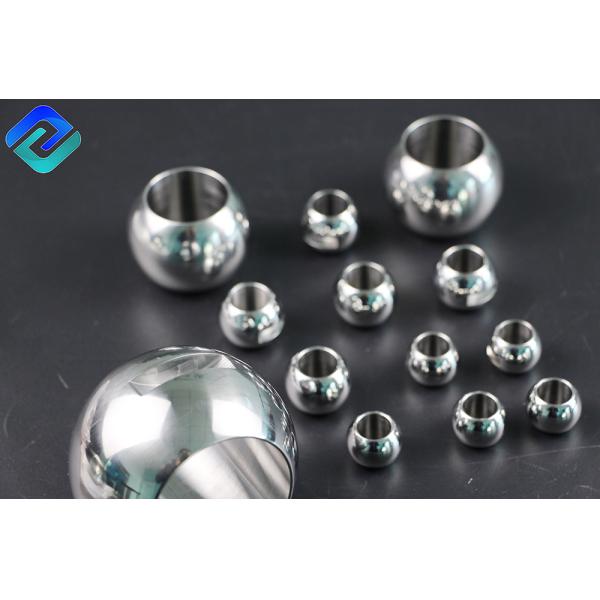

F316 Oilfield Stainless Steel Hollow Sphere 1.4301 Metal Hollow Ball

FAQ

Q: Are you trading company or factory?

A: We're factory and worked in stainless steel products with more than one decade, OEM ODM are all available for us.

Q: Which payment term you accept?

A: T/T or L/C

Q: What's your MOQ ?
A: MOQ is 1000 usually. But MOQ of each product is different.

Q: How long is your delivery time?

A: Normally 15-30 workdays

Q: Can I print my logo on the products ?
A: Yes, we can print your logo on the products as you required.

Q:Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q: How about your service?
A: We have pre-sale service, in-sale service and after-sale service and you can know about them in our service.
