Lost Wax 1000wog Casting Ball Valve Lockable 2 Stainless Steel DN6
Lost Wax 1000wog Casting Ball Valve Lockable 2 Stainless Steel DN6
Specifications
Brand Name :
Cencho
Model Number :
1/4''- 4''
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
CF8/CF8M/WCB
Medium :
Water Oil Gas
Locking :
with
Pressure :
1000PSI (PN16)
OEM/ODM :
OK
Power :
Manual
Port Size :
Standard ball valve
Inspection Testing :
API 598,EN 12266
Technology :
Investment Casting
Structure :
Ball
Standard :
ANSI,BS,DIN
Surface Treatment :
Sandblasting/acid Pickling
Description

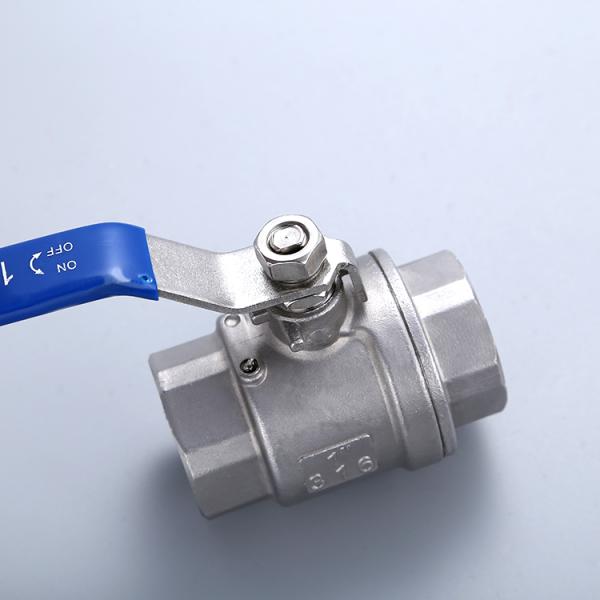

Lost Wax Casting Lockable 1000wog Casting Ball Valve

1. This casting ball valve is produce by investment casting,also called lost wax casting, it is lockable casting ball valve, and pressure is 1000psi.

2. Casting ball valve is open when the ball's hole is in line with the flow and closed when Casting ball valve is pivoted 90-degrees by the Casting ball valve handle.

3. Stainless steel 2PC Casting ball valve and flange gate valve belong to the same type of valve. The difference is that its closing part is a ball.

4. This 2PC casting ball valve is lockable 1000wog, material is stainless stee 304 / 316.

5. The working principle of stainless steel 2PC casting ball valve is to make the valve unblocked or blocked by rotating the valve.

Three advantages of stainless steel 2PC casting ball valve:

1. Stainless steel 2PC Casting ball valve is easy to operate, open and close quickly, from full open to full close as long as 90 ° rotation, easy to remote control.

2. The fluid resistance is small, and its resistance coefficient is equal to that of the same length of pipe.

3. Wide range of application, diameter from small to several millimeters, to several meters, from high vacuum to high pressure can be applied. When the ball rotates 90 degrees, it should be spherical at the inlet and outlet, so as to cut off the flow.

Our company strictly complies with ISO9001:2008 system,and we have certificates CE,API,TS.We mainly produce valves according to ANSI,DIN,JIS and China GB standards.Our products are widely used in the fields of water,oil,gas,petroleum,chemical and city pipeline networks.With good quality and services,we have gained a good reputation from customers from home and abroad.

Dimension Table

SIZE Φ d L H W N.M KGS
DN6 1/4” 12.5 50 48 106 4 0.19
DN10 3/8” 12.5 50 48 106 4 0.19
DN15 1/2” 15 56 52 106 5 0.28
DN20 3/4” 20 65 57 115 8 0.40
DN25 1” 25 80 73 148 10 0.67
DN32 1-1/4” 32 90 79 148 14 1.00
DN40 1-1/2” 38 99 84 183 24 1.25
DN50 2” 50 122 97 183 40 2.08
DN65 2-1/2” 65 147 127 251 48 3.84
DN80 3” 76 172 136 251 80 5.70
DN100 4” 94 222 158 283 103 10.70

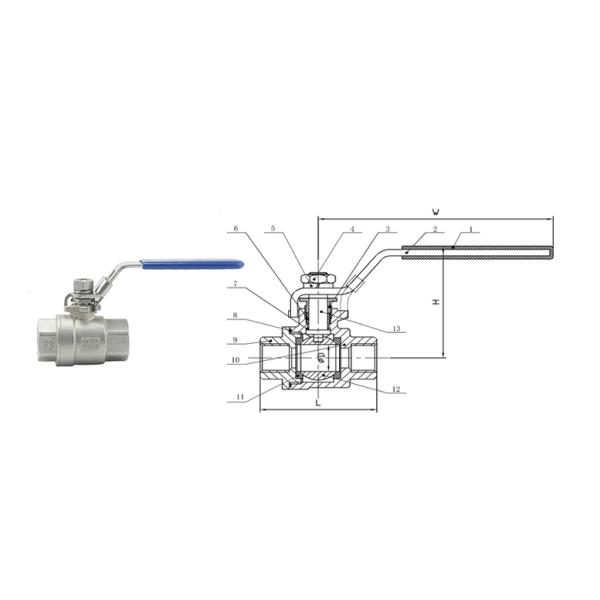

Drawing

Lost Wax 1000wog Casting Ball Valve Lockable 2 Stainless Steel DN6

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q:When can I get the quotation?

A:We usually quote within 12 hours after we get your inquiry.If you are very urgent to get the price,pls call us or tell us in your email so that we will regard your inquiry priority.

Q: How to proceed an order?

A: Stepl Let us know your requirements or application.

Step2 We quote according to your requirements or our suggestions.

Step3 Customer confirms the samples and places deposit for formal order.

Step4 We arrange the production.

Q: What's the payment term?
A: We accept T/T, western union, L/C and Trade Assurance. For bulk order by T/T and Western Union, we will require 30% deposit
first and 70% balance before delivery.
