1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
1/2 Sanitary Stainless Steel Hygienic Casting Ball Valve
Specifications
Brand Name :
Cencho
Model Number :
1/4''- 4''
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
Stainless Steel
Medium :
Water Oil Gas
Number of ways :
3-way ball valves
Seat Material :
PTFE, , Peek or Upon Your Request
Connection :
Clamp, Weld, Male and Female, Flange, or Combinations
Flow Pattern :
Straight
Operating Type :
Manual, Pneumatic, Electric
Standard :
ANSI,BS,DIN
Max.Temperature :
120℃
Inspection Testing :
API 598,EN 12266
Description

1/2" Sanitary Stainless Steel Hygienic Casting Ball Valve

1. 1/2" sanitary stainless steel hygienic casting ball valve is our main product, this casting ball valve used stainless steel investment casting method,and pressure is 1000wog,the material is cf8 or cf8m,we also can produce thread type casting ball valve.

2. Full-package casting ball valve design, no retention, high clean, to meet the CIP, SIP sterilization and cleaning requirements, high temperature 150C, pressure 25bar, automatic compensation seal design, with torque, long life and other characteristics the normal switch 100,000 times.

3. Can be equipped with a variety of executive structures, such as the electric head, horizontal pneumatic head, stainless steel three-dimensional pneumatic, the key manual handle, you can also install the control unit, positioner, position sensor, can also be installed automatic control system.

Material stainless steel 304, 316L.
Seal material PTFE,0 type seal ring
All the surface CNC, 0.8rn, to RA0.4cm, electrical polishing up to 0.25cm
Application bio-pharmaceuticals, food and beverage, wine, chemical and other industrial fields.
Feature Valve stem anti-flying design
The connection between valve body and bonnet with positioning stage design
Circulation
Stem seal packing with compensating device
Padlock device

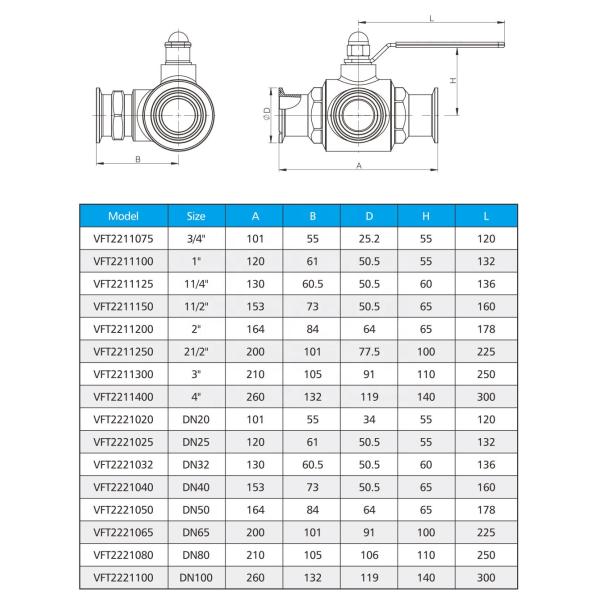

1/2

FAQ

Q: Can I have a sample order?

A: Definitely Yes. We welcome sample order to test and check quality.Mixed samples are acceptable.

Q: Do you have any MOQ limit for valve order?

A: One pcs for sample checking is available. For stocks, low MOQ is available.

Q: Can you do the design for us?

A: Yes. We have a professional and experienced team. Please send us high resolution images,your logo and other materials needed.We will send you finished files for confirmation.

Q: What is your terms of delivery?

A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient for you.
