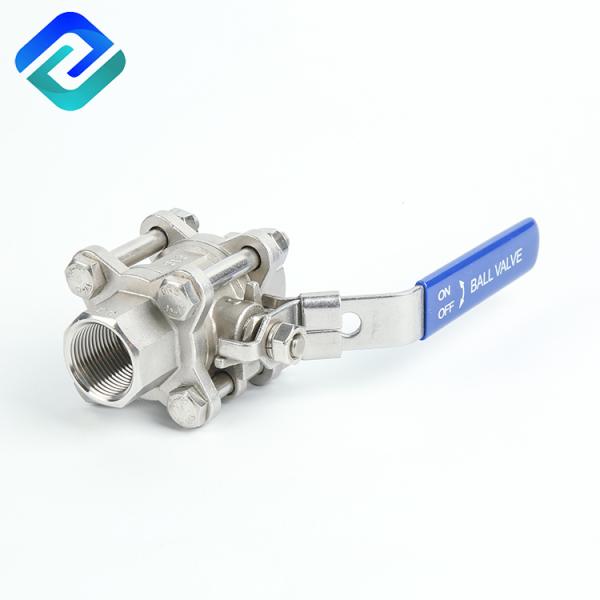

1000wog Stainless Steel 304 / 316 3pc Ball Valve
1000wog Stainless Steel 304 / 316 3pc Ball Valve
1000wog Stainless Steel 304 / 316 3pc Ball Valve
1000wog Stainless Steel 304 / 316 3pc Ball Valve
1000wog Stainless Steel 304 / 316 3pc Ball Valve
1000wog Stainless Steel 304 / 316 3pc Ball Valve
Specifications
Brand Name :
Cencho
Model Number :
1/4''- 4''
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
304 / 316
Port Size :
1/4''- 4''
Medium :
Water Oil Gas
Locking :
With
Pressure :
PN63
Working Temperature :
-25℃~+180℃
Power :
Manual
Technology :
Investment Casting
Surface Treatment :
Sandblasting/acid Pickling
Application :
Petroleum, Chemical, Power, Electronics, Machinery, Shipbuilding, Etc
Description

1000wog Stainless Steel 304 / 316 3pc Ball Valve

Description:

1) Design standard: ASME B16.34
2) Threaded ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
3) Testing: API 598
4) Mateiral:ASTM A351 CF8M,CF8,CF3M,SS316,SS304
ASTM A216-WCB
5) Size: 1/4”, 1/2”, 3/4”, 1”, 1 1/4”, 1 1/2”, 2”,3",4"
6) Working pressure: max 1000 WOG
7) Working temperature: -25 to 180°C
8) Working medium: Water, Oil, Gas, Acid, etc


Features:
1) Blow-out proof stem
2) Investment Casting Body
3) Pressure Blance Hole in Ball Slot
4) Reduce Bore
5) Threaded type: NPT,PT,BSP,BSPT,R,Rc,Rp,DIN is available6) Locking device is available

Characteristics:

Three-piece ball valve consists of valve body, two covers, a ball, a valve stem, a packing gland, a handle,a lock nut and other important components. Three-piece ball valve media can be closed from left to right, from right to left, clockwise direction, counterclockwise direction to open. The main performance and structural characteristics of the three-piece ball valve:

1. Full diameter design, large flow, large flow,low resistance.

2.The three-piece valve body structure is resistant to pressure and corrosion. If a hard seal is used, it can be resistant to wear and high temperature.

3.All parts are precision processed with high-quality stainless steel materials, and the sealing is made of high-quality PTFE polytetrafluoroethylene, which has a good sealing effect and corrosion resistance.

1000wog Stainless Steel 304 / 316 3pc Ball Valve
