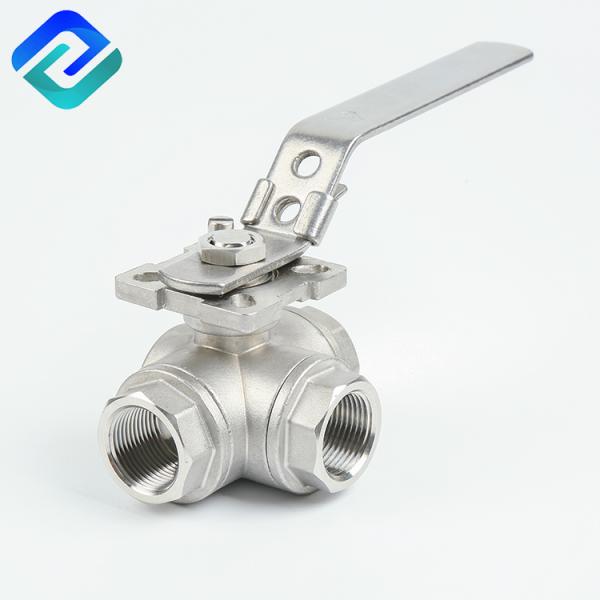

2 Inch SS 316 Three Way Stainless Steel Ball Valve
2 Inch SS 316 Three Way Stainless Steel Ball Valve
2 Inch SS 316 Three Way Stainless Steel Ball Valve
2 Inch SS 316 Three Way Stainless Steel Ball Valve
2 Inch SS 316 Three Way Stainless Steel Ball Valve
2 Inch SS 316 Three Way Stainless Steel Ball Valve
Specifications
Brand Name :
Cencho
Model Number :
1/4''-4''
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
CF8/CF8M/WCB
Medium :
Water Oil Gas
Number of ways :
Three way L port / T port
Connection :
Thread
Pressure :
1000PSI (PN63)
Sealing Material :
PTFE
Working Temperature :
-25℃~+180℃
Power :
Manual
Mounting Pad :
ISO5211
Inspection Testing :
API 598,EN 12266
Description

2 Inch SS 316 Three Way Stainless Steel Ball Valve

The 1/2" SS three way ball valve is available in T-Port and L-Port configurations completing the range of Threaded Full Port SS three way ball valve for Brewing. The T-Port is allows flow in all 3 ports or it allows Flow in two ports only. Where as the L-Port allows flow in a 2 directions in a L formation and SS three way ball valve allows no flow at all . Making this a Specialized 1/2" SS three way ball valve necessary for anyone who wants to direct Flow in 3 lines..

The SS three-way ball valve is suitable for parallel connections of corrosive or non-corrosive liquids, gases, powders and mixed media at temperatures between -46 ℃ and 200℃. Smooth runner reduces pressure loss during opening and closing, making it easy to operate. Easy to maintain; Manual, pneumatic, electrical control.

Material List

ITEM PART MATERIAL QTY
2 CAP A216-WCB A351-CF8 A351-CF8M 3
GASKET PTFE 3
3 SEAT PTFE/RPTFE 4
4 BALL 316 1
5 BODY A216-WCB A351-CF8 A351-CF8M 1
6 STEM 304 304 316 1
7 STEM THRUST WASHER PTFE 1
8 O RING VITON 1
9 PACKING 304 1
10 GLAND NUT 304 304 304 1
11 BELLWVLLE WASHER 301 1
12 NUT 304 2
13 PLATE WASHER 304 1
14 STOPPER NUT 304 1
15 LOCK 304 1
16 HANDLE 304 1
17 HANDLE COVER PLASTIC 1
18 STOP PIN 304 1

Dimension Table

SIZE Φd L H W h L1 J ISO5211 L2 N.M KGS
DN6 1/4’’ 9.5 75 66 130 36.8 37.5 9 F03/F04 57.5 8 0.71
DN10 3/8’’ 11 75 66 130 36.8 37.5 9 F03/F04 57.5 8 0.68
DN15 1/2’’ 12 75 66 130 36.8 37.5 9 F03/F04 57.5 8 0.64
DN20 3/4’’ 15 85 72 161 41.2 42.5 11 F04/F05 65.5 9 0.95
DN25 1’’ 20 100 77 161 46.5 50 11 F04/F05 79 15 1.40
DN32 1-1/4’’ 25 122 92 203 56 61 14 F05/F07 97 20 2.90
DN40 1-1/2’’ 32 131 96 203 60 65.5 14 F05/F07 106.5 30 3.65
DN50 2’’ 40 158 107 203 70.5 79 14 F05/F07 129 45 6.30
DN65 2-1/2’’ 49 178 135 254 95.5 89 17 F07/F10 145 60 8.96
DN80 3’’ 60 202 147 254 106 101 17 F07/F10 167 90 13.10
DN100 4’’ 75 246 160 310 119 123 17 F07/F10 203 120 22.11

Drawing

2 Inch SS 316 Three Way Stainless Steel Ball Valve

2 Inch SS 316 Three Way Stainless Steel Ball Valve
