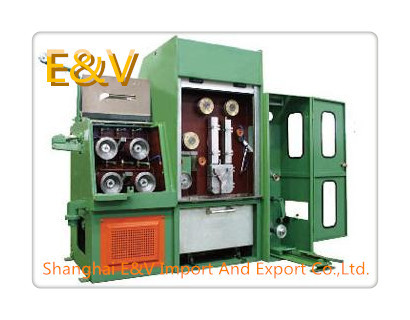

Copper / Brass Continuous Wire Drawing Machine With Heavy Tension Buffer Rod
Copper / Brass Continuous Wire Drawing Machine With Heavy Tension Buffer Rod
Copper / Brass Continuous Wire Drawing Machine With Heavy Tension Buffer Rod
Copper / Brass Continuous Wire Drawing Machine With Heavy Tension Buffer Rod
Specifications
Brand Name :
E&V
Model Number :
24D
Place of Origin :
CHINA
MOQ :
1set
Supply Ability :
1set per 20 days
Delivery Time :
20days
Packaging Details :
standard packing
Machine Type :
fine wires drawing machine
Outlet Dia :
0.08mm
Color :
option
Description

copper / brass fine wires small drawing machine /24DS

No. Name Date
1 Input diameter Φ1.0 —Φ0.5mm
2 Output wire diameter Φ0.25 —Φ0.08mm
3 Output speed 2500 MPM/ MAX
4 No.Of die (Max) 24pcs (one set provided by the seller); outside diameter specification Φ25mm×8
5 Wire-drawing area reduction NO.1-NO. 23 die: 13% NO. 24 die: 8%
6 Wire-drawing mode 4 bearings of vertical type, horizonal wire-drawing slipping continuous wire-drawing
7 Power

main motor: 15HP(11KW) AC motor controlled by inverter

Coiling motor: 5.5HP(3.7KW) AC motor controlled by inverter
8 Machine composition integrated casting
9 Transmission part whole machine transmit by flat belt
10 Wire-drawing wheel chromic oxide sprayed on the surface
11 Wire-drawing lubrication system 40 L/min of wire-drawing oil needed ( not include water pump); spray over die and wire-drawing wheel
12 Wire-setting mode 110W Low-speed synchronous motor; width (Max): 270mm
13 Coiling control mode

equip heavy tension buffer rod, automatically calculate, amend and control coiling tension.
