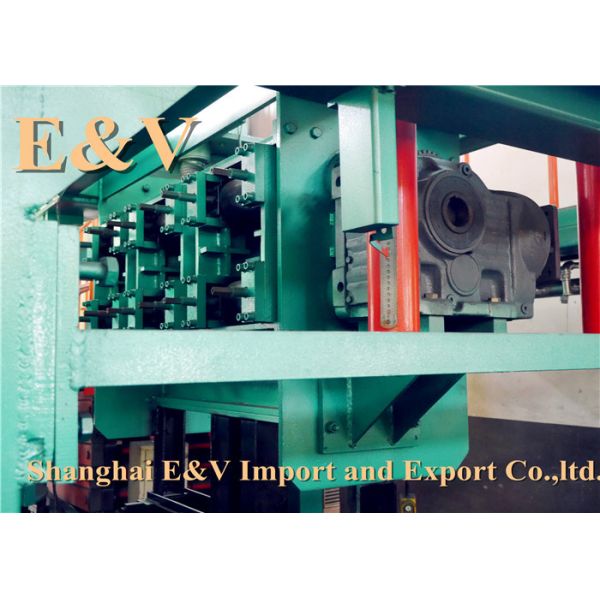

Ф350×10 Red Copper Strip Horizontal Continuous Casting Machine Line Two Strands
Ф350×10 Red Copper Strip Horizontal Continuous Casting Machine Line Two Strands
Ф350×10 Red Copper Strip Horizontal Continuous Casting Machine Line Two Strands
Ф350×10 Red Copper Strip Horizontal Continuous Casting Machine Line Two Strands
Specifications
Brand Name :
E&V
Place of Origin :
China
MOQ :
1set
Supply Ability :
1set per 60days
Delivery Time :
60days
Packaging Details :
standard export packing
Description

Ф350×10 Red Copper Strip Horizontal Continuous Casting Machine Line Two Strands

1.1 Main technical parameters

1.1.1 Casting style: two strands

1.1.2 Casting material: red copper

1.1.3 Casting specification: thickness:20mm

width:250 mm

1.1.4 Casting speed:

pulling speed:0～43mm/s(No grade to regulation)

reversing speed:0～43mm/s(No grade to regulation)

1.15 power

Melting furnace 300KW

holding furnace 150kw

tractor 7.5kw

1.1.6 output production: about 3000tons per year

1.1.7 Hydraulic cutting system

shearing force:60T

shearing thickness: Max 14mm

1.1.8 Circling weight: Max 1000kg

Inner diameter of the coil: Ф500~Ф800 mm

Outer diameter of the coil:Max 1400 mm

1.1.9 Turriform degree: ≤25mm

1.1.10 Noise: ≤80Db

Ф350×10 Red Copper Strip Horizontal Continuous Casting Machine Line Two Strands
