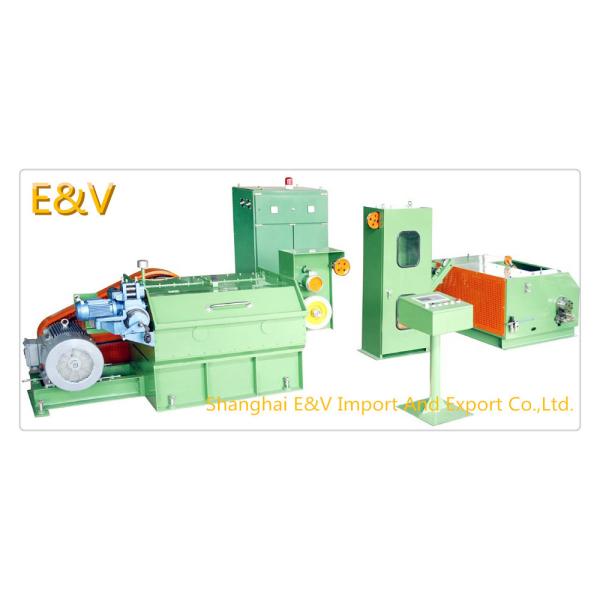

Four Axis Horizontal Copper Fine Wire Drawing Machine With Flip Up Security Door
Four Axis Horizontal Copper Fine Wire Drawing Machine With Flip Up Security Door
Specifications
Brand Name :
E&V
Model Number :
17MDST
Place of Origin :
China
MOQ :
1set
Supply Ability :
1set per 35days
Delivery Time :
35 days
Packaging Details :
standard export packing
name :
medium drawing machine
color :
option
input size :
2.6/3.0mm
output size :
0.4mm
Description

Four Axis Horizontal Copper Fine Wire Drawing Machine With Flip Up Security Door

Main technical parameters

  • type:four-axis horizontal
  • inlet wire scope:Ф3.2-Ф2.0mm
  • outlet wire scope:Ф0.4-Ф1.2mm
  • highest machinery machine speed:1200m/min(with anneal highest 1000 m/min)
  • outlet speed:(for reference)
Outlet dia(mm) 1.20-0.80 0.80-0.60 0.60-0.40
Outlet speed(m/min) 17MDS 600--300 800--600 1200--800
Outlet speed(m/min) 17MDST 600--300 800--600 1200--600
elongation of cord 25-33% 20-28% 22-25%

  • max eye mould:17
  • eye mould size:Ф30mm×15mmT or Ф25mm×10mmT

8. extend wire reduce rate:1-16 eye moulds: 15%

17 eye mould: 11%

9 extend wire lubricating system:spray type

10 quantity demaned of extend wire oil:100lit/min

11, drawing oil : 100 liter/minute

12, drawing machine use horsepower:45KW-4P

13, coiler use horsepower:11kw-4P induction motor

14, cable:90W motor cable,attach limit switch

15, security door:flip-up

any questions for this machine, plz let contact us!!!
