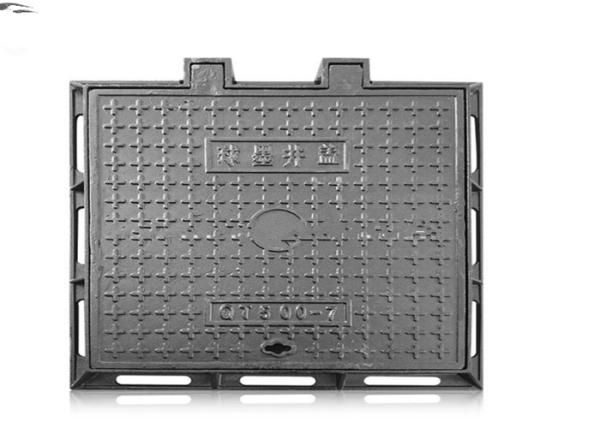

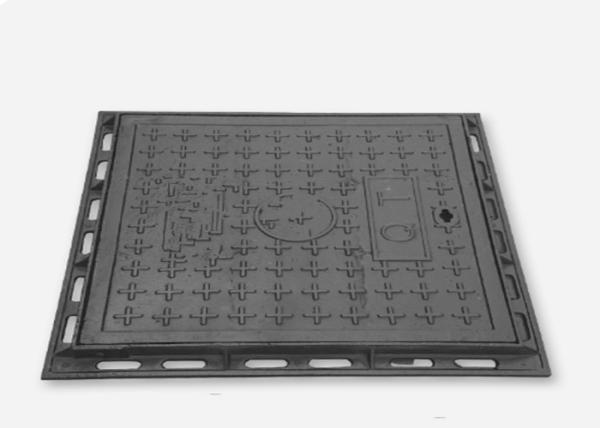

Heavy Duty Ductile Iron Manhole Cover Customized Dimension And Colors
Heavy Duty Ductile Iron Manhole Cover Customized Dimension And Colors
Heavy Duty Ductile Iron Manhole Cover Customized Dimension And Colors
Heavy Duty Ductile Iron Manhole Cover Customized Dimension And Colors
Specifications
Brand Name :
ZHF
Model Number :
Per drawing
Certification :
ISO9001
Place of Origin :
China
MOQ :
500 Pieces
Payment Terms :
T/T
Supply Ability :
10000/month
Delivery Time :
4 weeks
Packaging Details :
wooden crates
Process :
Sand casting
Dimensions :
per the drawings
Leakage test :
100% check
Finish :
Sand blasting
Application :
Building facilities,Municipal l construction
Product name :
Ductile iron manhole cover
Type :
Square
Standard :
EN124 Standard
Description

Square Municipal Engineering Application Automatic line,Sand Casting, Ductile Iron Manhole covers D400

Heavy Duty Ductile Iron Manhole Cover Customized Dimension And Colors

1. Shallow manhole
It is provided at shallow depth of 75-90cm (2'-3'). It is provided at the beginning of branch sewer or at a place not subjected to heavy traffic. It is provided with a light cover at its top it is also called inspection chamber.

2. Normal Manhole
It is provided in sewer line at depth of 150cm with a heavy cover on its top. It is generally of square shape (or rectangular shape).

3. Deep Manhole
They are provided at depth greater than 150cm with heavy cover at the top. The size is gradually increased and a facility for going down is provided.

CLASS A15 - Areas to be used only by pedestrians and cyclists.

CLASS B125 - Pavements, pedestrianised areas and similar surfaces,parking areas and multistorey car parks.

CLASS C250 - For covering devices installed on roadsides and in gutters at the side of streets.

CLASS D400 - Road surfaces (including pedestrianised streets), hard shoulders and parking areas for vehicles of all kinds.


CLASS E600 - Areas used by heavy vehicles, such as surfaces in airport and dock facilities.

CLASS F900 - Areas sudject to particularly heavy loading, for example surfaces in airports.

Material Ductile iron GGG50; Grey cast iron
Standard ISO9001, EN124
Scope A15, B125, C250, D400, E600, F900
Shape Round, Square, Rectangle, Triangle
Diameter From 300mm to 1000 mm
Weight From 5.5kg to 100kg
Applicable medium Gases; Liquids; Steam.
Surface treatment Black bitumen coated
Color Pitch black or as per customer’s requirement.
Logo Can be printed on enterprise logo
Usage Municipal roads, highways, communications, electric power, running water, village, schools and various kinds of the park.
Packing Normal packing is wooden pallet and plastic film or as per customer’s requirement
Minimum order 20 tons
Delivery time 20 days after place an order
Payment term L/C, T/T (30% of total amount deposit and 70% balance after faxing the B/L copy in 3 days)
Special requirement As per customer’s requirement.

Heavy Duty Ductile Iron Manhole Cover Customized Dimension And Colors

We can provide product cutomization services. Send us the drawing and give an ideal product.
