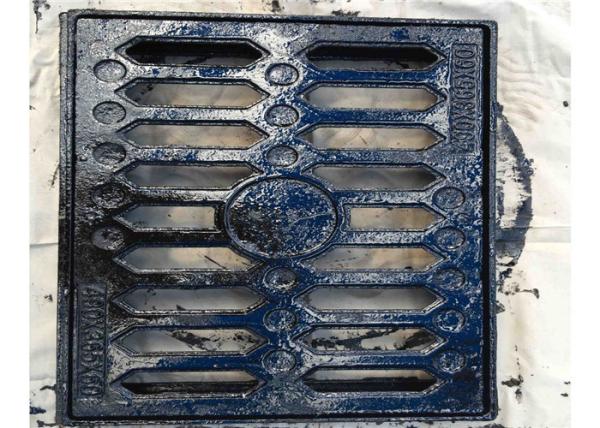

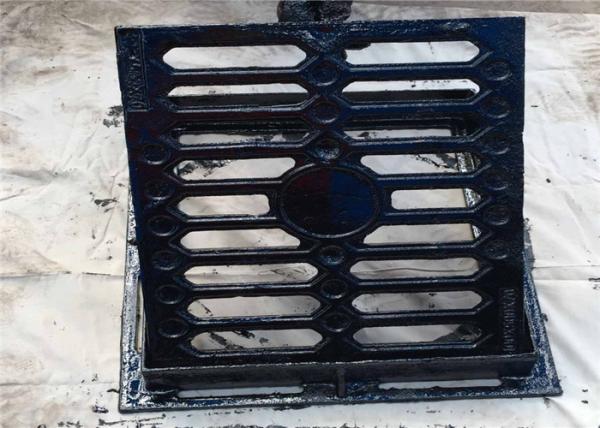

Anti Frozen Cast Iron Grating And Frame Square Type Corrosion Resistance
Anti Frozen Cast Iron Grating And Frame Square Type Corrosion Resistance
Anti Frozen Cast Iron Grating And Frame Square Type Corrosion Resistance
Anti Frozen Cast Iron Grating And Frame Square Type Corrosion Resistance
Specifications
Brand Name :
SHUANGXING
Model Number :
Drainage Channel
Certification :
ISO
Place of Origin :
Cangzhou, Hebei
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
about 15 days after received the balance money
Packaging Details :
wooden pallet/plastic
Material :
Ductile Cast Iron
Standard :
EN124 Standard
feature :
anti-frozen/durable/shock absorption/security
Size :
Customization
OEM :
YES
Description

Anti Frozen Cast Iron Grating And Frame Square Type Corrosion Resistance


product parameters

Material Ductile cast iron, grey cast iron, steel
Specification A15,B125,C250,D400,E600,F900
Process Shell core casting, Sand casting
Application Sewer, Electronic, Sanitary, telecommunications, sewage, drainage, water, stormwater, fire protection & etc.
Casting Tolerance Min. 0.05mm
Machining Tolerance Min. 0.02mm
Surface Treatment Painting, Powder coating, spraying, galvanization, chrome plating
Unit weight 32kg/set
Application Sewer, Electronic, Sanitary, telecommunications, sewage, drainage, water, stormwater, fire protection & etc.
Technical Support Owning experienced designing team
Standard ISO, ASTM,JIS, ANSI, DIN, BS, GB
Certification ISO9001:2008
Feature Single Seal, Double Seal, Bolt Hinge, Removable Hinge, Lock Device, Spring Bar, Auto-locking Device, Safety-Design, Solid, Vent Cover, Lifting Key Hole, Rubber/PE Gasket, GRP Plate, Cut-Corner Design, single seal, double seal, hinge type, ventilated, watertight, airtight, and anti-theft & etc.

Item
Description
Frame size (mm)
Clear opening (mm)
Height (mm)
Unit weight (kg/pc)
Square type grating
1

C250 Square type grating
300*300
170*170
45
9
2
C250 Square type grating
400*400
270*270
45
15
3
C250 Square type grating
500*500
370*370
50
23
4
C250 Square type grating
550*550
420*420
50
27
5
C250 Square type grating
600*600
470*470
55
31
6
C250 Square type grating
700*700
570*570
60
48
7
D400 Square type grating
500*500
370*370
80
32
8
D400 Square type grating
550*550
420*420
80
38
9
D400 Square type grating
600*600
500*500
80
43
10
D400 Square type grating
700*700
570*570
80
58
11
D400 Square type grating
700*700
600*600
100
95

3) product used

The product was used for the roads / idewalk / highway / airport

Anti Frozen Cast Iron Grating And Frame Square Type Corrosion Resistance


Product advantage


· All standard size covers weigh under 25kg allowing safe one person handling

· Wide range of sizes in 1.5T and 25T loading

· Central keyhole position allows safe one person lift

· Lockable as standard

· Excellent slip resistance

· 100mm deep frame eliminates traditional maintenance issues

· Frames can be secured to chambers for ultimate stability

· No inherent scrap value thus reducing risk of theft
