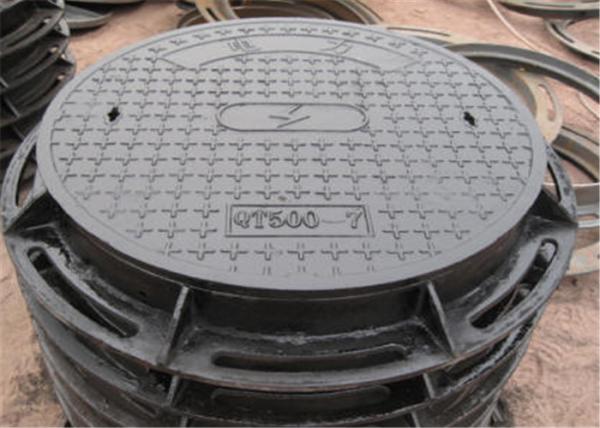

Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm
Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm
Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm
Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm
Specifications
Brand Name :
SHUANGXING
Model Number :
Drainage Channel
Certification :
ISO
Place of Origin :
Cangzhou, Hebei
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
about 15 days after received the balance money
Packaging Details :
wooden pallet/plastic
Standard :
EN124 Standard
Material :
Ductile Cast Iron
place of origin :
Cangzhou,Hebei
Dimensions :
Customer Required
application :
sidewalk/highway/airport
feature :
durable/shock absorption
pattern :
according to customers' requirements
Description

Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm

B125
Name Outer Size Inter Size Height Kg Pcs/Pallets
Manhole Cover 300x300 200x200 24 6.5 60
400X400 300x300 24 9 60
500x500 400x400 36 16 30
600x600 500x500 40 26 30
700x700 600x600 40 41 15
800x800 700x700 45 53 16

C250
Name Outer Size Inter Size Height Kg Pcs/Pallets
Manhole Cover 400x400 300x300 35 13 60
500x500 400x400 40 22 30
550x550 450x450 45 28 30
600x600 500x500 45 30 30
700x700 600x600 50 50 13
800x800 700x700 60 64 12
Square Drainer 400x400 300x300 45 15 60
500x500 400x400 50 23 30
550x550 450x450 45 26 30
600x600 500x500 55 35 20
700x700 600x600 60 48 13
Manhole Cover 400x400 300x300 75 21 20
500x500 400x400 75 32 20
550x550 450x450 75 38 20
600x600 500x500 75 46 10
700x700 600x600 75 57 1

D400
Name Outer Size Inter Size Height Kg Pcs/Pallets
Manhole Cover 400x400 300x300 75 23 40
500x500 400x400 75 31 26
550x550 450x450 75 35.5 20
600x600 500x500 75 45 20
700x700 600x600 75 66 10
800x800 700x700 75 81 10
900X900 800X800 90 110 10
Rectangular Manhole Cover 1000X1000 900X900 100 135 10
600x800 500x700 60 48 10
600x800 500x700 75 60 10


3) product used

The product was used for the roads / idewalk / highway / airport

Drainage Cast Iron Drain Grate Round Inspection Chamber Cover 850x850 Mm


Product Application

1. They are used to carry out inspection, cleaning and removing obstruction in the sewer line.

2. Manhole allows joining of sewers or changing the direction of sewer or alignment of sewer or both.

3. They allow the escape of considerable gases through perforated cover and thus help in ventilation of sewage.

4. They facilitate the laying of sewer line in convenient lengths.

Main Features

1. Shallow manhole
It is provided at shallow depth of 75-90cm (2'-3'). It is provided at the beginning of branch sewer or at a place not subjected to heavy traffic. It is provided with a light cover at its top it is also called inspection chamber.

2. Normal Manhole
It is provided in sewer line at depth of 150cm with a heavy cover on its top. It is generally of square shape (or rectangular shape).

3. Deep Manhole
They are provided at depth greater than 150cm with heavy cover at the top. The size is gradually increased and a facility for going down is provided.
