Durable Rainwater Outlet Grating Cast Iron Gully Grate For Motor Vehicle Road
Durable Rainwater Outlet Grating Cast Iron Gully Grate For Motor Vehicle Road
Durable Rainwater Outlet Grating Cast Iron Gully Grate For Motor Vehicle Road
Durable Rainwater Outlet Grating Cast Iron Gully Grate For Motor Vehicle Road
Specifications
Brand Name :
SHUANGXING
Model Number :
300*300*50
Certification :
ISO
Place of Origin :
Cangzhou, Hebei
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
about 15 days after received the balance money
Packaging Details :
wooden pallet/plastic
Material :
Cast Iron
place of origin :
Cangzhou,Hebei
pattern :
according to customers' requirements
product name :
Rain Water Drain Grates
feature :
anti-frozen/durable/shock absorption/security
application :
sidewalk/highway/airport
Surface Finished :
Black Paited
OEM :
YES
Description

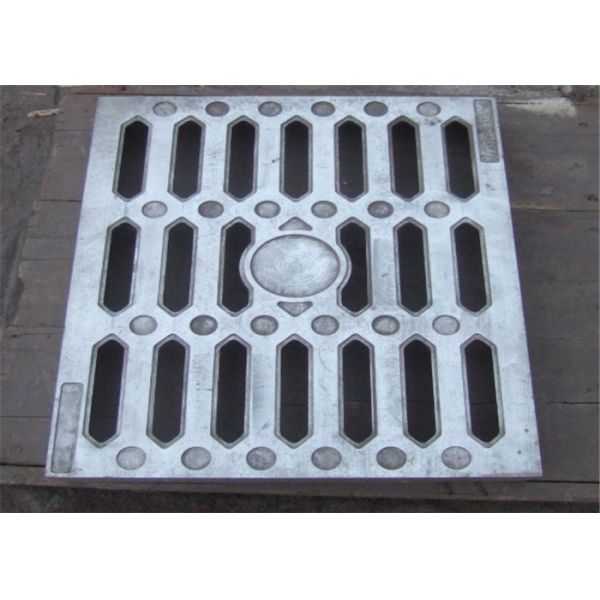

Durable Rainwater Outlet Grating Cast Iron Gully Grate For Motor Vehicle Road

grating size:300*300*50mm

1. Class: A15, B125, C250, D400, E600 and F900.

2.Standard: BS EN124:1994.

3. Material grade: GGG500/7

4. Test: testing before shipping for the smooth surface and loading.

5. Coating: coating black bitumen/epoxy, or coating as customers' requirements.

cast iron drain grating

Item
Description
Frame size (mm)
Clear opening (mm)
Height (mm)
Unit weight (kg/pc)
GULLY GRATING
1
C250 gully grating
300*300
170*170
45
9
2
C250 gully grating
400*400
270*270
45
15
3
C250 gully grating
500*500
370*370
50
23
4
C250 gully grating
550*550
420*420
50
27
5
C250 gully grating
600*600
470*470
55
31
6
C250 gully grating
700*700
570*570
60
48
7
D400 gully grating
500*500
370*370
80
32
8
D400 gully grating
550*550
420*420
80
38
9
D400 gully grating
600*600
500*500
80
43
10
D400 gully grating
700*700
570*570
80

58
11
D400 gully grating
700*700
600*600
100
95



3) product used

The product was used for the roads/idewalk/highway/airport

Durable Rainwater Outlet Grating Cast Iron Gully Grate For Motor Vehicle Road

4) Product advantage

1. Moderate weight and easy installation
2. No inherent scrap value thus reducing risk of theft
3. 30 years of service life
4. Can be used in -30℃ to 70 ℃ degrees environment
5. Corrosion resistance, meet the needs of environmental protection, and reduce the exploitation of mining resources; beautify the city, classify the coloring, and enhance the taste of the city.
6. Tested by national security agencies. Compressive, bending and impact resistant. Heat, cold, acid, etc
.
