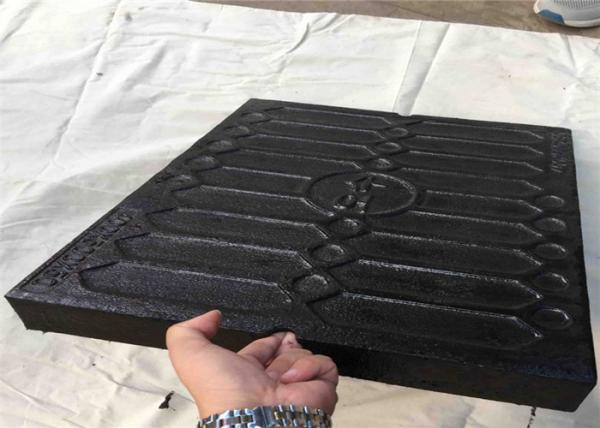

Square Single Seal DI Manhole Cover Frames With Lock Black Painted Finished
Square Single Seal DI Manhole Cover Frames With Lock Black Painted Finished
Square Single Seal DI Manhole Cover Frames With Lock Black Painted Finished
Square Single Seal DI Manhole Cover Frames With Lock Black Painted Finished
Specifications
Brand Name :
SHUANGXING
Model Number :
According to the customers' need
Certification :
ISO9001-2008
Place of Origin :
Cangzhou, Hebei
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
about 15 days after received the balance money
Packaging Details :
wooden pallet/plastic
MATERIAL :
GREY IRON , DUCTILE IRON
Surface treatment :
Paint/Alkyd paint/Asphalt paint
Loading Test :
customer required
Drawing format :
Solid Work
Application :
Public places and construction
Standard :
BS EN124
Dimensions :
DN600,DN700,DN800, standard
Description

Square Single Seal DI Manhole Cover Frames With Lock Black Painted Finished

Product Description

ductile cast iron manhole cover

Product information:Manhole covers are manufactured for road construction, natural gas, water supply and drainage, telecommunications. Manhole covers and gratings should be smooth, no blisters, holes, distortion or any other defects.
Size: 500mm*500mm,600mm*600mm,700mm*700mm,800mm*800mm, 850mm*850mmand so on.Many size can be choose,or according to customer's drawing or requirements.
Material
Ductile Iron GGG500,or according to customers requirement
Designs
EN124 A15, B125, C250, D400, E600 and F900 or As per customers' drawings or samples
Processes:
A) Moulding boards
B) Green sand with hand moulding
Coating
Cold applied black bitumen Or without Coating or as per customers' requirement
Inspection:
Third party inspection available upon request

Material Ductile Iron GGG500-7 & 400-12 , Grey Iron GG20.
Designs EN124 A15, B125, C250, D400, E600 and F900 , As per customers' drawings or samples.
Coating Cold applied black bitumen ; Without coating ; Coating as per customers'requirement.
Packing Steel or wood pallet, or as per customers' requirements.
Application

Expressway, sidewalk, park, garden, municipal pipeline,

telecommunication, water and electrical power projects.


Square Single Seal DI Manhole Cover Frames With Lock Black Painted Finished

manhole dimensions Advantages:

1. High load rating and strength

V As hard as cast iron, ductile iron manhole cover. Barcol hardness 63

V Designed to meet and exceed A15/B125/C250/D400/E600 loading rating, according to EN124:1994. We also could design the products according to the customers' local standard such as AS3996, FACTA standard, U.S.A. Standard AASHTO, etc.

V Less noise and lower vibration transmissions.

2. Against theft and safety options

V Zero theft value, reducing potential accident and further maintenance cost caused by thieves.

V Surface anti-slip thread guarantees safe road condition even in extreme weather.

V Locks are available as an option molded into the cover to improve security rate.

V Non-electricity conduction and non-heat conduction.
