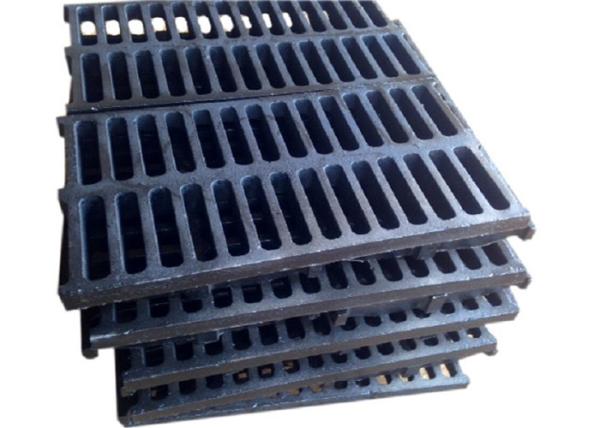

Heavy Duty Driveway Drain Grate Trench Drain Grating Cover Black Color
Heavy Duty Driveway Drain Grate Trench Drain Grating Cover Black Color
Heavy Duty Driveway Drain Grate Trench Drain Grating Cover Black Color
Heavy Duty Driveway Drain Grate Trench Drain Grating Cover Black Color
Specifications
Brand Name :
SHUANGXING
Model Number :
400*500
Certification :
ISO
Place of Origin :
HEBEI CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 MT /MONTH
Delivery Time :
15 DAYS
Packaging Details :
WOOD PALLET
Material :
Iron
Color :
black
Packing :
wooden case/pallets
Standard :
EN124 Standard
Usage :
Drainage System
Shape :
rectangle
Description

Heavy Duty Driveway Drain Grate Trench Drain Grating Cover Black Color

Product Details

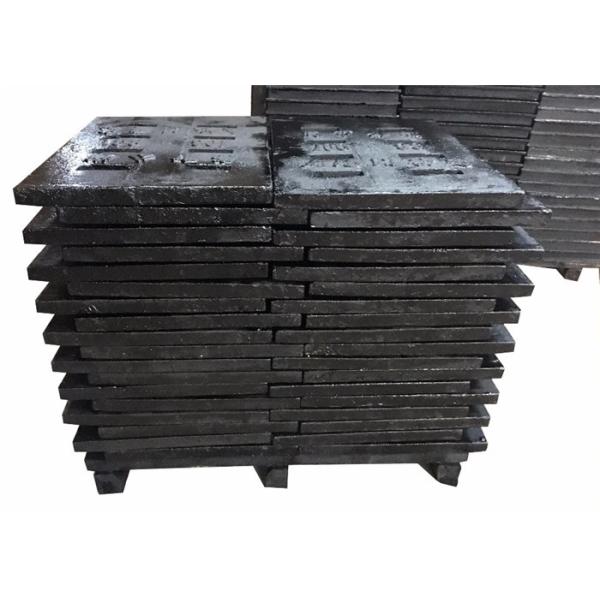

Item Waterproof square 60x60 ductile iron manhole cover
Brand name Better United Casting
Size 200mm-1000mm
Type: Round,square
Material Gray Iron, Ductile Iron, Malleable iron
Coating

Cold applied black bitumen Antirust oil, Plating, Paint, Powder Coating, epoxy coating

or as per customers' requirement.
Application Municipal construction
Loading pressure EN124 A15,B125,C250,D400,E600,F900, or as per customers' drawings or samples.
Advantages Anti-noise ,Anti-theft,anti-rust,long life service.
Package Pallet and wooden case,or as per customers’ requirements

Class A15 Area which can only be used by pedestrians and pedal cyclists

Class B125 Folkways, pedestrian areas and comparable areas, car parks or parking decks

Class C250 For gratings installed in the area of kerbside channels of roads which, when measured from the Serb edge, extend maximum 0.5 m into the carriageway and maximum 0.2 m into the foot way

Class D400 Arrive ways of roads (pedestrian streets included), hard shoulders and parking areas for all types of road vehicles.

Class E600 Areas subject to high axle loads such as docks and airports

Class F900 Areas subject to very high axle loads such as airports


Standards and features:

1. high strength. Tensile strength σs≥420MPa, yield strength σs≥300MPa, same as low carbon steel, three times that of gray iron

2. Good toughness. The impact value is similar to that of medium carbon steel, which is more than 10 times that of gray iron material.

3. Good plasticity. The elongation is as large as 7%, which is similar to high carbon steel, while the gray iron steel has an elongation of zero.

4. Strong corrosion resistance. In the water spray corrosion test, the corrosion amount in 90 days is only one tenth of that of the steel pipe, which is one tenth of that of the gray iron pipe. The service life is twice that of gray cast iron, which is 5 times that of ordinary steel pipe.

Heavy Duty Driveway Drain Grate Trench Drain Grating Cover Black Color
