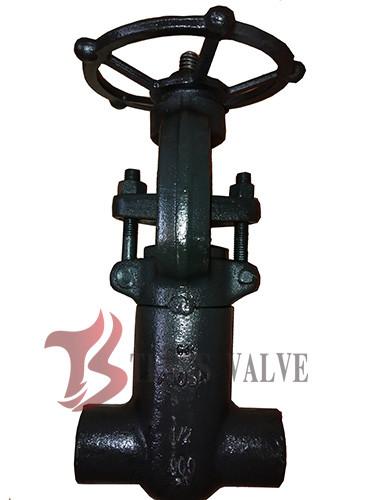

Pressure Seal Bonnet PSB Forged Steel Gate Valve Solid Wedge 900LB Full Bore SW NPT

Quick Details:
1. Product: Pressure Seal Bonnet PSB Gate Valve 900LB

2. Constructions: PSB
3. Bore type: Full Bore
4. Size Range: 1/2" to 2".
5. Pressure Ratings: ANSI Class 900LB / 900#
6. End Connections: SW, NPT
7. Materials Available in: A105 N, LF2, F5, F11, F22, F304, F316, F316L, F51, F53 or Equivalent;

8. Various trim materials are available to suit different service conditions
9. Special: NACE MR 0175

Featuers

1. Bonnet Gasket Style

Stainless steel + flexible graphite combined gasket

Ring joint gasket

Pressure seal Design

2. Packing Seal

As usual, flexible graphite is used for packing material. PTFE or combined packing material can be also used if being requested by the customer.

3. Body and Bonnet Connection

Pressure Seal Bonnet.

4. Operation

Hand wheel, Bare Stem, Electric actuator

5. Disc Design
NPS<2 Gate valves are solid wedge gate.

6. Backseat Design

All gate valves have backseat design.

7. Stem Design

The stem is integral forged design. The minimum diameter of the stem shall be as per the standard requirement.

8. Seat

For carbon steel gate valve, the seat is usually forged steel. The seat sealing surface is overlaying welded with hard alloy specified by the customer. For Stainless steel gate valve, the seat is integral with body, or it can be machined directly after hard alloy welded. Threaded or welded type seat is also optional for stainless steel gate valve.

Description

1. PSB Forged Gate Valve Parts and Material List

900LB Forged Steel Valves Pressure Seal Bonnet PSB Solid Wedge Full Bore

NO. Part name A105/F6a A105/F6aHFS LF2/304 F11/F6aHF F304(L)/304(L) F316(L)/316(L) F51/410HF
1 Body A105 A105 LF2 F11 F304(L) F316(L) F51
2 Seat 410 410HF 304 410HF 304(L) 316(L) F51
3 Wedge F6a F6a F304 F6aHF F304(L) F316(L) F51
4 Stem 410 410 304 410 304(L) 316(L) F51
6 Bonnet A105 A105 LF2 F11 F304(L) F316(L) F51
8 Pin 410 410 410 410 304 304 304
9 Gland 410 410 304 410 304 316 F51
10 Gland eyebolt B7 B7 L7 B16 B8(M) B8(M) B8(M)
11 Gland flange A105 A105 LF2 F11 F304 F304 F304
12 Hex nut 2H 2H 2H 2H 8(M) 8(M) 8(M)
13 Stem nut 410 410 410 410 410 410 410
14 Locking nut 35 35 35 35 35 35 35
15 Nameplate AL AL AL AL AL AL AL
16 Handwheel A197 A197 A197 A197 A197 A197 A197
17 Lubricating gasket 410 410 410 410 410 410 410
18 Packing Graphite Graphite Graphite Graphite Graphite Graphite Graphite
23 Seal gasket 420 420 304 304 304(L) 316(L) 420
24 P.S.ring 304 304 304 304 304 316 316
25 P.S.seat 420 420 304 304 304(L) 16(L) F91
26 Nut pad 410 410 410 410 410 410 410
27 Packing nut Cast steel Cast steel Cast steel Cast steel Stainless steel Stainless steel Stainless steel

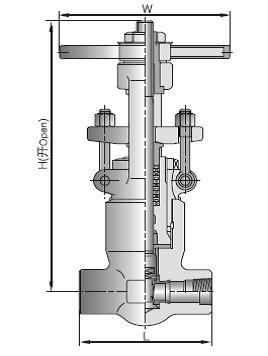

2. Main Connection Dimensions for 900LB PSB Forged Steel Gate Valve

900LB Forged Steel Valves Pressure Seal Bonnet PSB Solid Wedge Full Bore

Specification (NPS) F.P Pressure Rating 3/8 1/2 3/4 1 1 1/4 1 1/2 2
Face to face (mm) L CL900 140 140 140 140 178 178 216
Handwheel diameter (mm) w CL900 200 200 200 200 280 280 300
Heihgt (mm) H CL900 318 318 318 322 467 468 540
Flow port dimension (mm) d CL900 14 14 14 19 25 30 36.5
Weight (Kg) CL900 11.5 11.5 11 10.5 19.6 21.0 55.4
