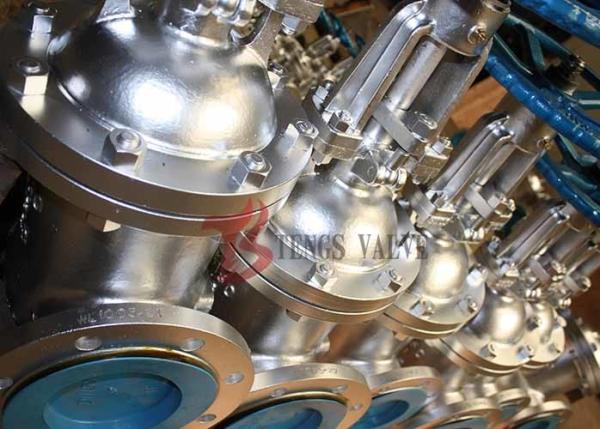

Din Cast Steel Gate Valve Metal Seat HF Rising Stem RS with Manual Operated Flanged / BW

1. Standards

Design Standard DIN3352
Face to Face DIN3202
Flange Ends DIN2543-2545
Test & Inspection DIN3230

2. Bonnet Gasket Style

Stainless steel + flexible graphite combined gasket;

Stainless steel + flexible graphite wounded gasket;

Ring joint gasket;

Pressurized seal design.

3. Packing Seal

Flexible graphite is used for packing material. PTFE or combined packing material can be also used.

4. Body and Bonnet Connection

Bolted Bonnet design. (B.B)

5. Operation

Hand wheel or bevel gear box is usually used for gate valve operation, electric actuator also can be used for gate valve operation if being requested by the customers.

6. Disc Design
NPS≥2 Gate valves are flexible wedge gate, NPS<2 Gate valves are solid wedge gate.

7. Backseat Design

All gate valves have backseat design.

8. Stem Design

The stem is integral forged design.

9. Stem Nut

Usually, the stem nut is made of ASTM A439 D2. It is also can be made of copper alloy or other materials if being requested by the customer.

10. Seat

For carbon steel gate valve, the seat is usually forged steel. The seat sealing surface is overlaying welded with hard alloy specified by the customer. For Stainless steel gate valve, the seat is integral with body, or it can be machined directly after hard alloy welded. Threaded or welded type seat is also optional for stainless steel gate valve.

OEM Din Cast Steel Gate Valve , HF Rising Stem RS Forged Steel Gate Valve

11.Parts and Material List

Parts Name Material
CS/Trim 1 CS/Trim 8 CS/Trim 5 Stainless Steel
1 Body DIN 17245 GS-C25+CR 13 DIN 17245 GS-C25+STL DIN 17245 GS-C25+STL DIN 17445 1.4308 DIN 17445 1.4408
2 Wedge DIN 17245 GS-C25+CR 13 DIN 17245 GS-C25+CR 13 DIN 17245 GS-C25+STL DIN 17445 1.4308 DIN 17445 1.4408
3 Stem ASTM A182 F6a ASTM A182 F304 ASTM A182 F316
4 Nut A194 2H A194 8 A194 8
5 Bolt A193 B7 A193 B8 A193 B8
6 Gasket SS Spiral Wound W/graphite, or SS Spiral Wound W/ PTFE, or Reinforced PTFE
7 Bonnet DIN 17245 GS-C25+CR 13 DIN 17245 GS-C25+CR 13 DIN 17245 GS-C25+CR 13 DIN 17445 1.4308 DIN 17445 1.4408
8 Packing Braided Graphite or Reformed Graphite Ring or PTFE
9 Gland ASTM A182 F6a ASTM A182 F304 ASTM A182 F316
10 Gland Flange DIN 17245 GS-C25 DIN 17445 1.4308 DIN 17445 1.4408
11 Stem Nut Copper Alloy or A439 D2
12 Hand Wheel Ductile Iron or Carbon Steel

12. Hydro Test Specifications:

Nominal Pressure (MPa) Shell Test (MPa) Sealing Test(MPa) Suitable Medium
1.6 2.4 1.76 Water, Oil & Gas
2.5 3.75 2.75
4.0 6.0 4.4
6.4 9.6 7.04

Product tags

wedge gate valve parts

,

cast steel gate valve class 150

,

forged gate valve
