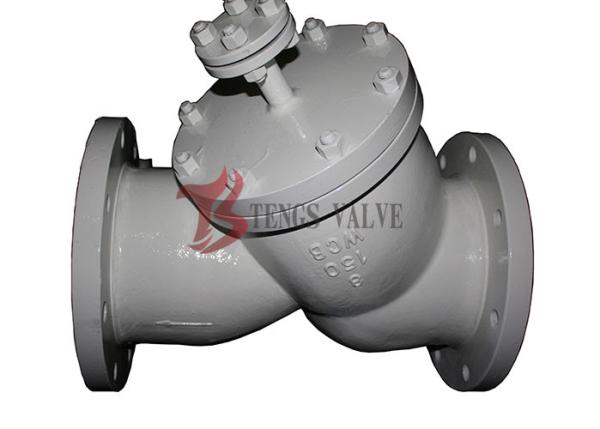

WCB Carbon Steel Y Strainer 150LB With Flanged Drain Plug Special Design
WCB Carbon Steel Y Strainer 150LB With Flanged Drain Plug Special Design
WCB Carbon Steel Y Strainer 150LB With Flanged Drain Plug Special Design
WCB Carbon Steel Y Strainer 150LB With Flanged Drain Plug Special Design
Specifications
Brand Name :
Tengs Valve
Model Number :
Y Type
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Pc
Price :
Negotiable
Supply Ability :
500 Pcs
Delivery Time :
30 Days
Packaging Details :
Seaworthy Plywoods
Body Material :
Carbon Steel A216 WCB
Screen :
SS304, SS316 (L), UNS S31803 (2205), S32750 (2507)
Size :
2in - 36in
Pressure Rating :
Class 150LB / 150#
Connection Ends :
RF, FF, BW
Perforated Hole :
2mm, 3mm, 5mm etc.
Drain Plug :
Flanged Type
Other :
Oem Aavailable
Description

Cast Steel Y Type Strainer A216 WCB 150LB with Flanged Drain Plug Special Design

Quick Details:

1. Strainer Type: Y Type

2. Sizes: 2”- 36”

3. Pressure rating: ANSI 150LB / 150#

4. Suitable medium: Water, gas, oil, steam etc.

5. Body material: Carbon Steel A216 WCB

6. Screen: Stainless steel (SS304, SS316, SS316L), Duplex Stainless Steel (2205, 2507)

7. Mesh size: 10mesh, 20mesh, 40mesh, 60mesh, 100mesh,200mesh,400mesh etc.

8. End connection: Flanged (RF, FF), Butt Welding (BW)

9. Drain Plug: Flanged Type

10. Nace Mr0175

Strainer Features

1. Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fibre, pharmaceutical and food industry etc.

2. Y Strainer Features

A compact type strainer with low fluid resistance and requiring less installation space.

The Y type strainer can be widely used for removing dirt and dust from pipelines.

Lightweight, compact, and designed for easy piping, the Y type strainer comes in a wide variety of structures, shapes, and mesh types.

Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.

Descriptions:

1. Y Type Strainer Standards

Design and Manufacture: ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5,ASME B16.47 A
BW end dimension: ASME B16.25
Face to face and end to end: ASME B16.10
(Check valve/Globe valve)
Pressure-temperature ratings: ASME B16.34

WCB Carbon Steel Y Strainer 150LB With Flanged Drain Plug Special Design

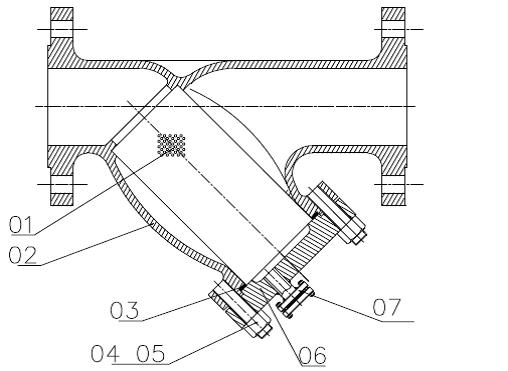

2. Main Parts and Material List For Y Type Strainer

No. Parts Name Material
1 Screen SS304 SS316 2205 2507
2 Body ASTM A216 WCB ASTM A216 WCB ASTM A216 WCB ASTM A216 WCB
3 Gasket Graphite+Stainless Steel(304, 304L, 316, 316L), EPDM, PTFE
4 Cover Bolt A193B7 A193B7 A193B7 A193B7
5 Cover Nut A194 2H A194 2H A194 2H A194 2H
6 Cover A105 (N) A105 (N) A105 (N) A105 (N)
7 Drain plug (Flange) A105 (N) A105 (N) A105 (N) A105 (N)

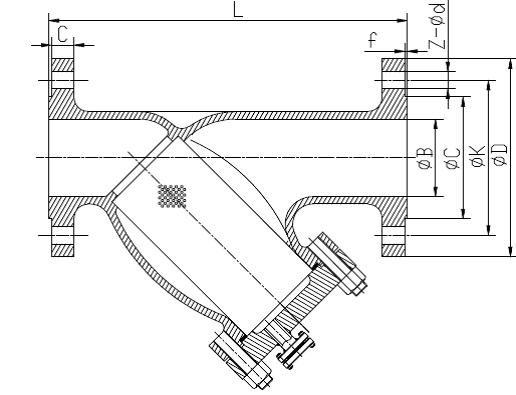

2. Main Connection Dimensions:

WCB Carbon Steel Y Strainer 150LB With Flanged Drain Plug Special Design

NPS DN L B D G f K Z-Ød C A
In mm RF BW
2 50 203 203 49 152 91.9 1.6 120.7 4-19.1 15.8 63
2 1/2 65 216 216 62 178 104.6 1.6 139.7 4-19.1 17.5 75
3 80 241 241 74 191 127 1.6 152.4 4-19.1 19.1 91
4 100 292 292 100 229 157.2 1.6 190.5 8-19.1 23.9 117
6 150 406 356 150 279 215.9 1.6 241.3 8-22.2 25.4 172
8 200 495 495 201 343 269.7 1.6 298.5 8-22.2 28.4 223
10 250 622 622 252 406 323.9 1.6 362 12-25.4 30.2 278
12 300 699 699 303 483 381 1.6 431.8 12-25.4 31.8 329
14 350 787 787 334 533 412.8 1.6 476.2 12-28.6 35.1 362
16 400 864 864 385 597 469.9 1.6 539.8 16-28.6 36.6 413
18 450 978 978 436 635 533.4 1.6 577.9 16-31.8 39.6 464
20 500 978 978 487 699 584.2 1.6 635 20-31.8 42.9 516
24 600 1295 1295 589 813 692.2 1.6 749.3 20-34.9 47.8 619
26 650 1295 1295 633 870 749.3 1.6 806.5 24-34.9 68.3 670
28 700 1448 1448 684 927 800.1 1.6 863.6 28-34.9 71.4 721
30 750 1524 1524 735 984 857.3 1.6 914.4 28-34.9 74.7 772
36 900 1965 1965 874 1168 1022.4 1.6 1085.9 32-41.3 90.4 927
