A351 CF8M 300LB Y Type Strainer , Stainless Steel Y Strainer Flange Type
A351 CF8M 300LB Y Type Strainer , Stainless Steel Y Strainer Flange Type
Specifications
Brand Name :
Tengs Valve
Model Number :
Y Type
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Pc
Price :
Negotiable
Supply Ability :
500 Pcs
Delivery Time :
30 Days
Packaging Details :
Seaworthy Plywoods
Body Material :
Cast Stainless Steel A351 CF8M
Screen :
SS304, SS316 (L), UNS S31803 (2205), S32750 (2507)
Size :
1/2in - 36in
Pressure Rating :
Class 300LB / 300#
Connection Ends :
RF, BW
Other :
OEM available
Description

Y Strainer Stainless Steel A351 CF8M Ansi CL300LB Cast Type Flanged Y Filter

Quick Details:

1. Strainer Type: Y Type

2. Sizes: 1/2”- 36”

3. Pressure rating: ANSI 300LB / 300#

4. Suitable medium: Water, gas, oil, steam etc.

5. Body material: Stainless Steel A351 - CF8M

6. Screen: Stainless steel (SS316, SS316L), Duplex Stainless Steel (2205, 2507)

7. Mesh size: 10mesh, 20mesh, 40mesh, 60mesh, 100mesh,200mesh,400mesh etc.

8. End connection: BW, RF

9. Nace Mr0175

Features

1. Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fibre, pharmaceutical and food industry etc.

2. Y Type Strainer Features

A compact type strainer with low fluid resistance and requiring less installation space.

The Y type strainer can be widely used for removing dirt and dust from pipelines.

Lightweight, compact, and designed for easy piping, the Y type strainer comes in a wide variety of structures, shapes, and mesh types.

Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.

Strainer Main Technical Paremeters
A) Operating Temperature(oC):CS:-30~380oC, SS: -80~450oC;

B) Operating Pressure(Mpa): 0.6 ~ 5.0 Mpa

C) Body Material: Carbon Steel, Stainless Steel etc.

D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.

E) Strainer Element Material: Stainless steel, Duplex Stainless Steel

F) Screen mesh from 10 mesh to 400 mesh,also we can produce according to customer's repuinement.
G) Shell inspection And Test: ISO5208 / API598

Descriptions:

1. Y Type Strainer Standards

Design and Manufacture: ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5,ASME B16.47 A
BW end dimension: ASME B16.25
Face to face and end to end: ASME B16.10
(Check valve/Globe valve)
Pressure-temperature ratings: ASME B16.34

A351 CF8M 300LB Y Type Strainer , Stainless Steel Y Strainer Flange Type

2. Main Parts and Material List For Y Type Strainer

No. Parts Name Material
1 Body ASTM A351 ASTM A351 ASTM A351 ASTM A351 ASTM A890 ASTM A890
CF8 CF3 CF8M CF3M 4A 5A
2 Screen SS304 SS304L SS316 SS316L SS316 / 2205 SS316 / 2507
3 Gasket Graphite Or Graphite+Stainless Steel(304, 304L, 316, 316L), EPDM, PTFE
4 Cover A182 F304 A182 F304L A182 F316 A182 F316L A182 F51 A182 F53
5 Cover Bolt A193B8 A193 B8 A193B8M A193B8M A193B8M A193B8M
6 Cover Nut A194 8 A194 8 A194 8M A194 8 A194 8M A194 8M
7 Drain plug A193 B8 A193 B8 A193 B8M A193B8M A193 B8M A193 B8M

3. Main Connection Dimensions

A351 CF8M 300LB Y Type Strainer , Stainless Steel Y Strainer Flange Type

NPS

In

DN

mm

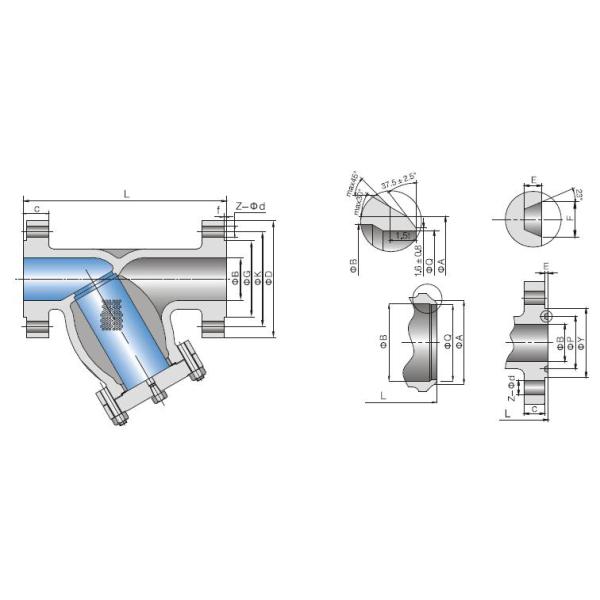

 L B D G f K Z-Ød C Groove Dimension A
RF RTJ BW Y P E F
1/2 15 152 164 - 13 95 35.1 1.6 66.5 4-15.9 14.2 51 34.14 5.56 7.14 -
3/4 20 178 191 - 19 117 42.9 1.6 82.6 4-19.1 15.7 63.5 42.88 6.35 8.74 -
1 25 203 216 203 25 124 50.8 1.6 88.9 4-19.1 17.5 70 50.8 6.35 8.74 35
1-1/4 32 216 229 216 32 133 63.5 1.6 98.6 4-19.1 19.1 79.5 60.32 6.35 8.74 45
1-1/2 40 229 241 229 38 155 73.2 1.6 114.3 4-22.2 20.6 90.5 68.27 6.35 8.74 52
2 50 267 283 267 49 165 91.9 1.6 127 8-19.1 22.4 108 82.55 7.92 11.91 63
2 1/2 65 292 308 292 62 191 104.6 1.6 149.2 8-22.2 25.4 127 101.6 7.92 11.91 75
3 80 318 333 318 74 210 127 1.6 168.3 8-22.2 28.4 146 123.82 7.92 11.91 91
4 100 356 371 356 100 254 157.2 1.6 200.2 8-22.2 31.8 175 149.22 7.92 11.91 117
6 150 445 460 445 150 318 215.9 1.6 269.8 12-22.2 36.6 241 211.12 7.92 11.91 172
8 200 533 549 533 201 381 269.7 1.6 330.2 12-25.4 41.1 302 269.88 7.92 11.91 223
10 250 622 638 622 252 445 323.9 1.6 387.4 16-28.6 47.8 356 323.85 7.92 11.91 278
12 300 711 727 711 303 521 381 1.6 450.9 16-31.8 50.8 413 381 7.92 11.91 329
14 350 838 854 838 334 584 412.8 1.6 514.4 20-31.8 53.8 457 419.1 7.92 11.91 362
16 400 864 879 864 385 648 469.9 1.6 571.5 20-34.9 57.2 508 469.9 7.92 11.91 413
18 450 978 994 978 436 711 533.4 1.6 628.7 24-34.9 60.5 575 533.4 7.92 11.91 464
20 500 1016 1035 1016 487 775 584.2 1.6 685.8 24-34.9 63.5 635 584.2 9.52 13.49 516
24 600 1346 1368 1346 589 914 692.2 1.6 812.8 24-41.3 69.9 749 692.15 11.13 16.66 619
26 650 1346 1372 1346 633 972 749.3 1.6 876.3 28-44.5 79.2 809.8 749.3 12.7 19.84 670
28 700 1499 1524 1499 684 1035 800.1 1.6 939.8 28-44.5 85.9 860.6 800.1 12.7 19.84 721
30 750 1594 1619 1594 735 1092 857.3 1.6 997 28-47.6 91.9 917.4 857.25 12.7 19.84 772
36 900 2083 2112 2083 874 1270 1022.4 1.6 1168.4 32-54 104.6 1092.2 1022.35 14.27 23.01 927
