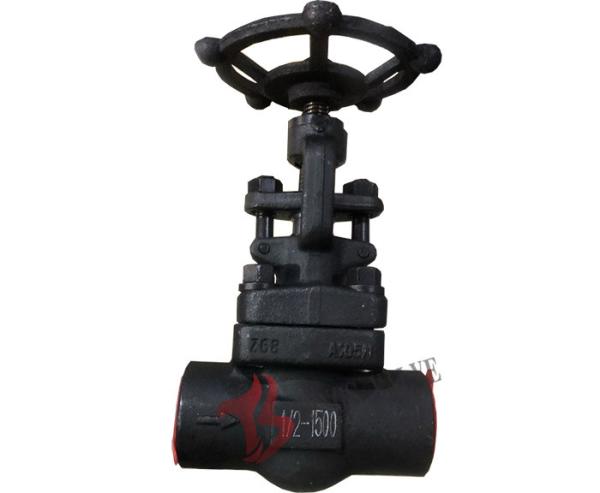

Class 1500LB SW Ends Forged Steel Globe Valve Bolted Bonnet Carbon Steel A105N Socket Welded
Class 1500LB SW Ends Forged Steel Globe Valve Bolted Bonnet Carbon Steel A105N Socket Welded
Specifications
Brand Name :
Tengs Valve
Model Number :
J11
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Pc
Price :
Negotiable
Supply Ability :
1000 Pcs
Delivery Time :
15 Days
Packaging Details :
Seaworthy Plywoods Case, Airworthy Plywoods Case
Body Material :
Carbon Steel A105 (N)
Trim :
13Cr, Half Stellite/ Full Stellite, SS304, SS316, Dss
Size :
1/2in - 2in
Pressure Rating :
Class 1500LB / 1500#
Actuator :
Manual: Handwheel Operated
Connection Ends :
SW, Socket Welded
Disc Type :
Plug, Needle, Parabolic, Ball Type Disc
Other :
OEM Available
Description

Class 1500LB SW Ends Forged Steel Globe Valve Bolted Bonnet Carbon Steel A105N Socket Welded

Quick Details:
1. Product: Forged Steel A105 Globe Valve 1500LB

2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet
3. Port type: Full Port, Reduced Port
4. Size Range: 0.5inch to 2inch.
5. Pressure Ratings: ANSI Class 1500LB / 1500#
6. End Connections: SW, Socekt Welded, SW-SW
6. Materials Available in: Carbon Steel A105

8. Various trim materials are available to suit different service conditions
9. NACE MR 0175 on request

Features

1. Structure Features of Globe Valve
Outside Screw and Yoke: Rising stems: Metallic seating surfaces

2. Body and Bonnet Connection
Bolted bonnet, Welded Bonnet, Pressure seal bonnet design.

3. Bonnet Gasket Style

Stainless steel + flexible graphite wounded gasket

Metal ring gasket

Pressure seal design

5. Packing Seal
Fexible graphite is used for packing material. PTFE or combined packing material can be also used if being requested by the customer.

6. Stem Design

The stem is of integral forged design. The minimum diameter of the stem shall per the standard requirement.

7. Backseat Design

All the globe valves have the backseat design. In most cases, the carbon steel globe valve is fitted with a renewable backseat. For stainless steel globe valve, the backseat is machined directly in the bonnet or is machined after welding.

8. Seat

For carbon steel globe valve, the seat is usually forged steel. The sealing surface of the seat is spray welded with hard alloy specified by the customer, For Stainless steel globe valve, integral seat is usually adopted, or to weld hard alloy directly integrally.

Standards

Design and manufacture: API602, BS5352, ASME B16.34
End connection Standards:
1) Socket-weld dimension: ANSI B16.11
2) Screw thread dimension: ANSI B1.20.1
3) Butt-welding dimension: ANSI B16.25
4) Flange end dimension: ANSI B16.5

Valve inspection and test: API598

Material according to ANSI/ASTM

Description

1. Parts and Material List

Class 1500LB SW Ends Forged Steel Globe Valve Bolted Bonnet Carbon Steel A105N Socket Welded

No. Part Name A105/F6a A105/F6aHFS LF2/304 F11/F6aHF F304(L)/304(L) F316(L)/316(L) F51/F51
1 Body A105 A105+HF LF2 F11+HF F304(L) F316(L) F51
3 Disc F6a F6a F304 F6aHF F304(L) F316(L) F51
4 Stem 410 410 304 410 304(L) 316(L) F51
5 Gasket 304 + Flexible garphite 316 + Flexible garphite
6 Bonnet A105 A105 LF2 F11 F304(L) F316(L) F51
7 Bolt B7 B7 F7 B16 B8(M) B8(M) B8(M)
8 Pin 410 410 410 410 304 304 304
9 Gland 410 410 304 410 304 316 F51
10 Eyebolt B7 B7 L7 B16 B8(M) B8(M) B8(M)
11 Gland Flange A105 A105 LF2 F11 F304 F304 F304
12 Hex nut 2H 2H 2H 2H 8(M) 8(M) 8(M)
13 Stem nut 410 410 410 410 410 410 410
14 Lock nut 35 35 35 35 35 35 35
15 Name plate AL AL AL AL AL AL AL
16 Hand wheel A197 A197 A197 A197 A197 A197 A197
18 Packing Graphite Graphite Graphite Graphite Graphite Graphite Graphite

2. Main Connection Dimensions for CL1500

Class 1500LB SW Ends Forged Steel Globe Valve Bolted Bonnet Carbon Steel A105N Socket Welded

Specification R.P - 1/2 3/4 1 1 1/4 1 1/2 2
(NPS) F.P 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2
Face to face (mm) L 92 111 111 120 152 172 220
Weight (Kg) 2.3 3.7 3.6 3.6 7.6 11.6 15
