0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
Specifications
Brand Name :
Casun
Model Number :
P35SHD0807-24B
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$4.14-$6.98
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
180mN.m
Current :
0.5A
Motor Length :
40mm
Shaft :
Milling Flat Shaft 24mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

The 35 step motor can quickly respond to control signals, achieving faster motion response speed.

By giving the correct pulse sequence, basic operations such as rotation and stop can be achieved.

Features:

  • Bipolar or unipolar versions available

  • Knowledgeable manufacturing and research

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Each model of stepper motor can be suitable for different scenarios

Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.5 A

Holding Torque

180 mN.m

Resistance

4.5 ohm

Inductance

5.8 mH

Rotor Inertia

35 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar

Appearance

0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor

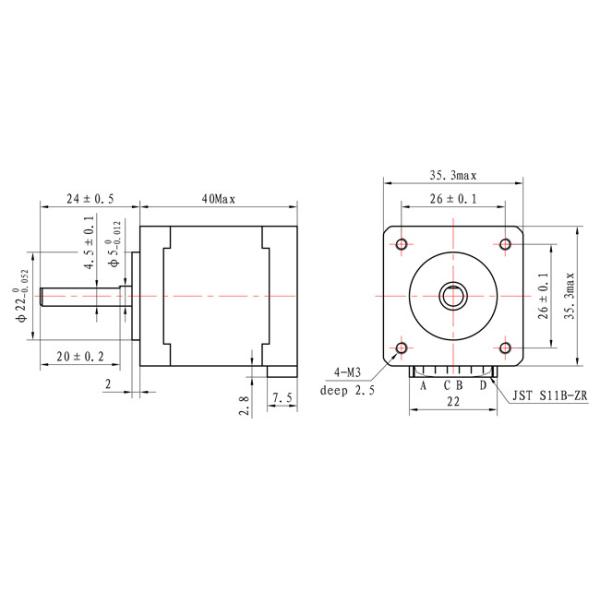

Dimensions

0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
