Specifications
Brand Name :
Casun
Model Number :
P35SHD0303-15H
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$4.14-$6.98
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
60mN.m
Current :
0.4A
Motor Length :
20mm
Shaft :
Round Shaft 15mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

The 35mm Hybrid Stepper Motor Series performs well in low-speed control and can provide precise and fine adjustments.

Small automation systems, water pumps, electric door locks, image scanners, and precision positioning tools.

Features:

  • Bipolar or unipolar versions available

  • High accuracy and torque

  • Available in single or double shaft versions

  • To offer the best solution, our engineers will contact you within 48 hours

  • Expert manufacturing research and development

Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

60 mN.m

Resistance

22 ohm

Inductance

15 mH

Rotor Inertia

10 g-cm²

Motor weight

0.09 kg

Number of leads

4

Connection

Bipolar

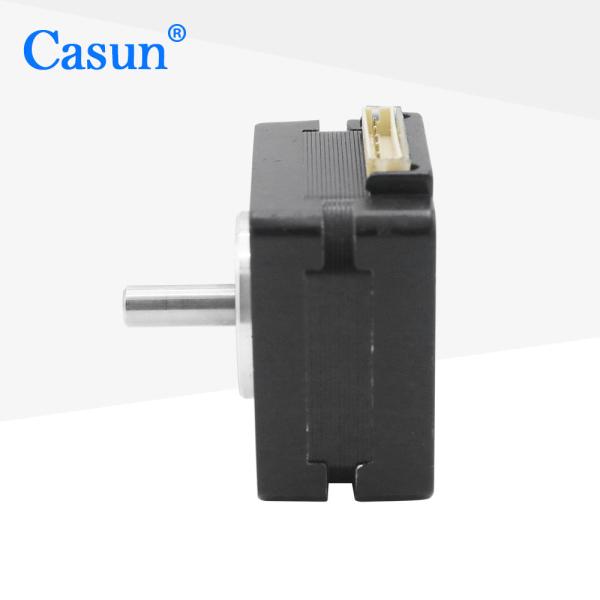

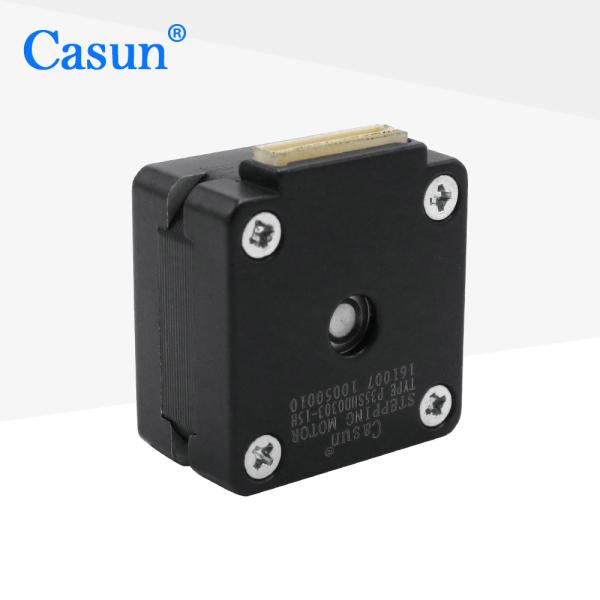

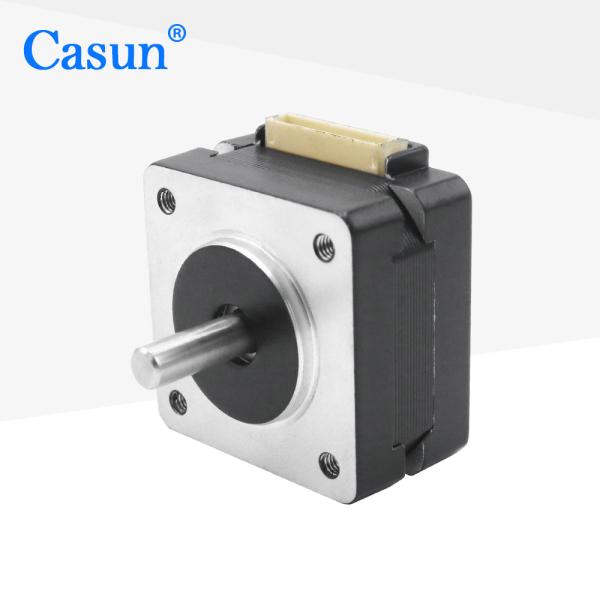

Appearance

35x35mm NEMA 14 Stepper Motor 1.8 Degree 2 Phase Casun Motor

Dimensions

35x35mm NEMA 14 Stepper Motor 1.8 Degree 2 Phase Casun Motor

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
