2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
Specifications
Brand Name :
Casun
Model Number :
42SHD0801-25B
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
600mN.m
Current :
1.5A
Motor Length :
60mm
Shaft :
Milling Flat Shaft 25mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

By applying a pulse signal to control the rotation of the rotor, for each pulse received, the rotor will rotate by a certain angle.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Accept contract manufacturing

  • Provide "multiple international certifications"

  • Our engineers will contact you within 48 hours to provide the best solution

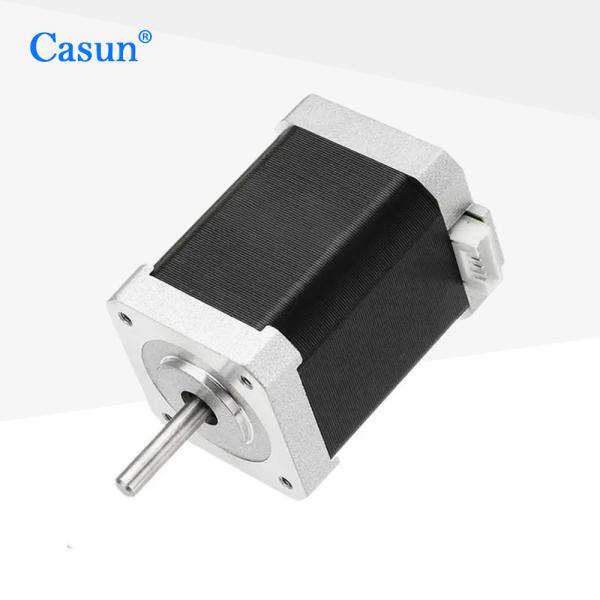

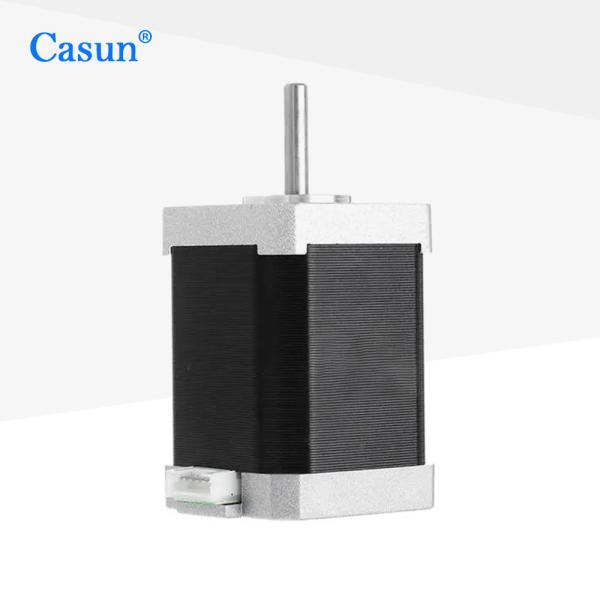

Appearance

2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument

Dimensions

2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

600 mN.m

Resistance

1.8 ohm

Inductance

3.2 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument 2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument 2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument 2.7V 0.6N.M Nema 17 Stepping Motor For XYZ Measuring Instrument
