1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
Specifications
Brand Name :
Casun
Model Number :
42SHD0807-20B
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
550mN.m
Current :
1.2A
Motor Length :
60mm
Shaft :
Milling Flat Shaft 20mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

【42SHD0807-20B】42x42x60mm 1.8 Degree 2 Phase 1.2A Nema 17 Stepper Motor For Robot With CE ISO ROHS

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers.

  • Our engineers will be in touch within 48 hours to provide the best solution

Appearance

1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision

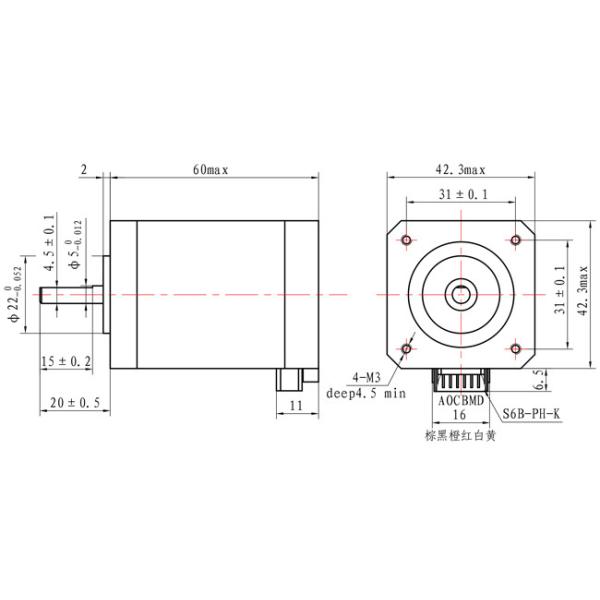

Dimensions

1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

550 mN.m

Resistance

2.4 ohm

Inductance

5.8 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision 1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision 1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision 1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision

Please click the "Get a quote" button below to tell us your requirements.
