CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
Specifications
Brand Name :
Casun
Model Number :
42SHD0811-25B
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
700mN.m
Current :
0.8A
Motor Length :
60mm
Shaft :
Milling Flat Shaft 25mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

The 42mm Hybrid Stepper Motor is driven by a single stepper pulse, so its motion is very reliable.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers.

  • We are open to contract manufacturing arrangements

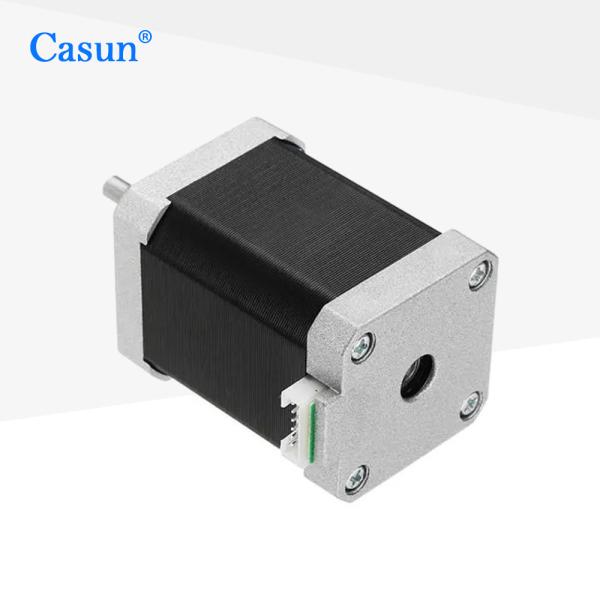

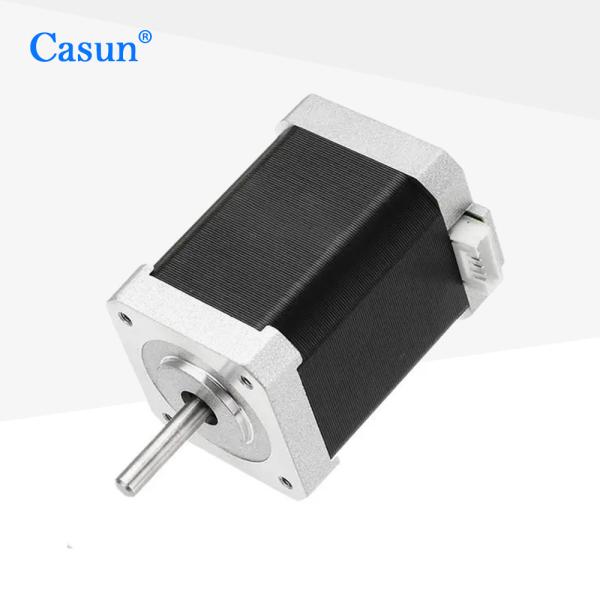

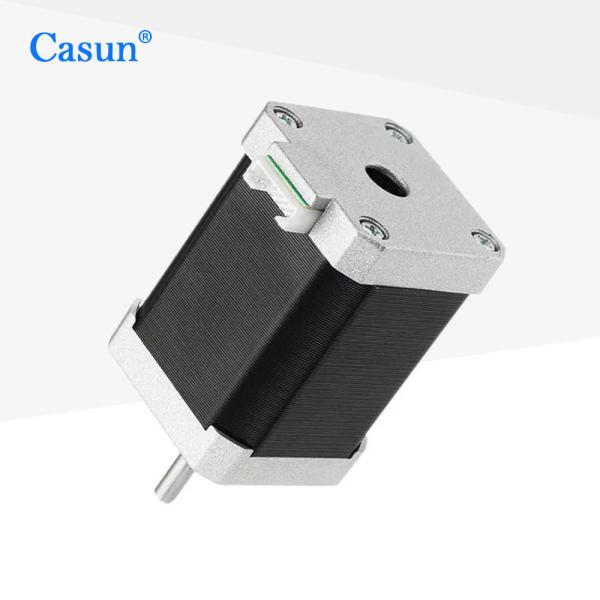

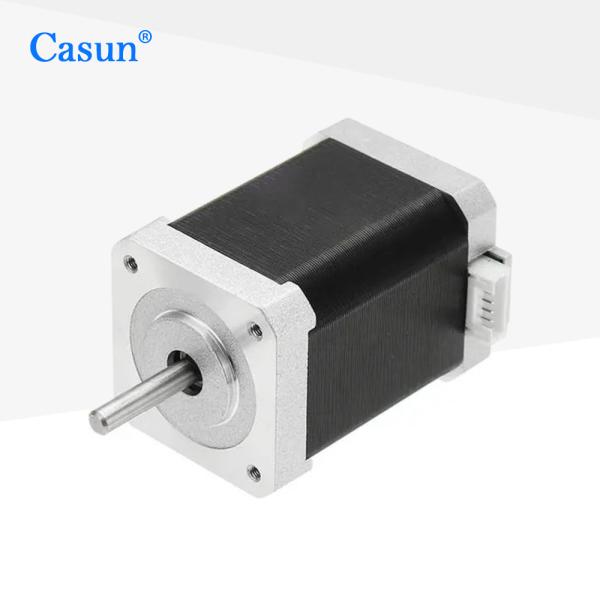

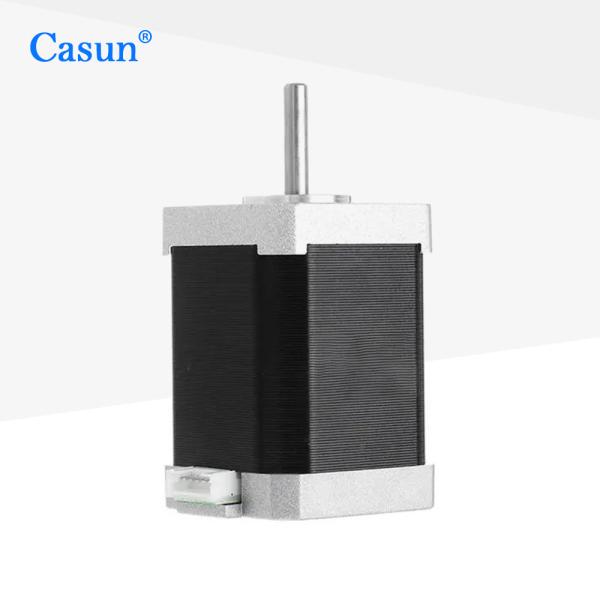

Appearance

CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor

Dimensions

CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

700 mN.m

Resistance

20 ohm

Inductance

42.5 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor CNC Robot 42mm NEMA 17 Stepper Motor 0.8A 700mN.M Casun Stepper Motor
