CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg
CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg
CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg
CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg
CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg
CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg
CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg
CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg
Specifications
Brand Name :
Casun
Model Number :
P35SHD0303-15H
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.29-$4.46
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
60mN.m
Current :
0.4A
Motor Length :
15mm
Shaft :
Round Shaft 22mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

Nema 14 Casun Stepper Motor 0.4A 35X23mm 60mN.m 1.8° 2-Phase Stepping Motor for CNC beauty equipment

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel

1.8 °

Fram Size

35mm

Number of Phase

2 Phase

Rated Current

0.4A

Holding Torque

60mN.m

Resistance

22ohm

Inductance

15mH

Rotor Inertia

10g-cm²

Motor weight

0.09 kg

Number of leads

0

Connection

Bipolar

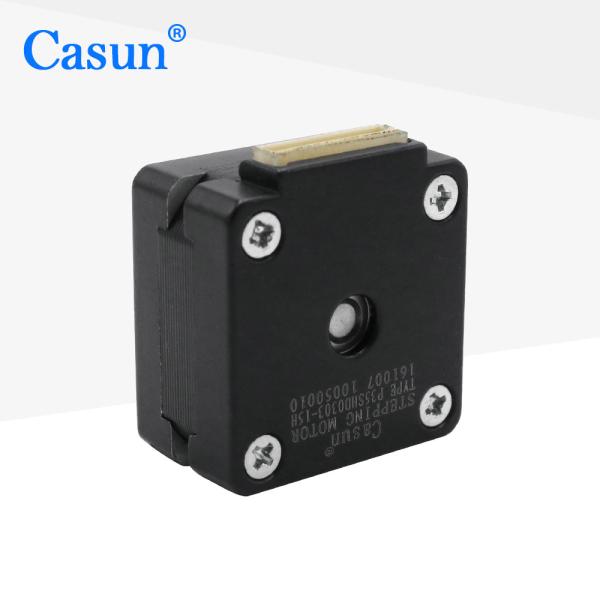

Appearance

CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg

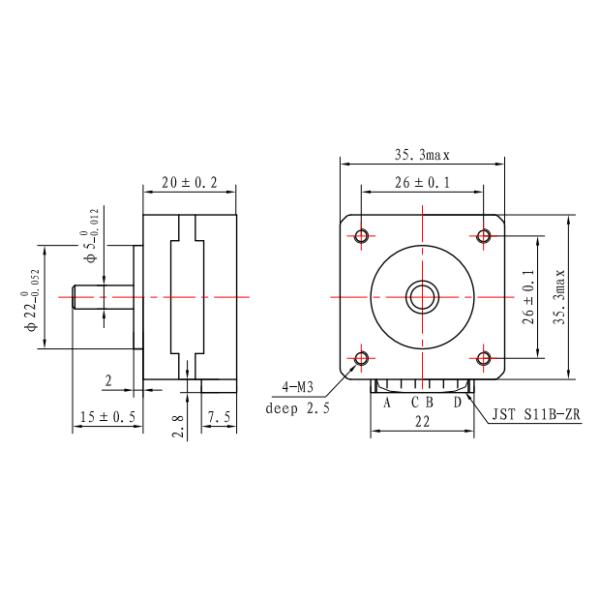

Dimensions

CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
