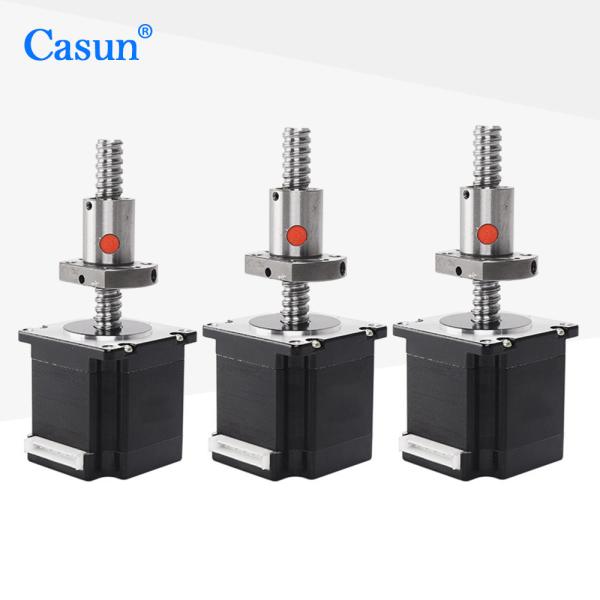

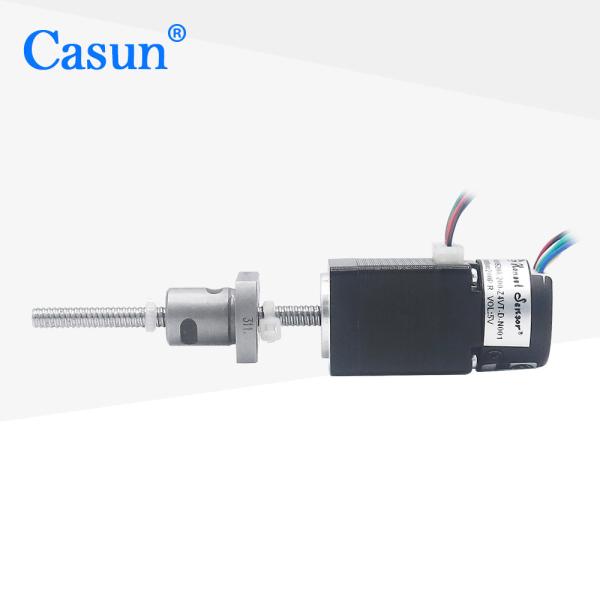

14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor
Specifications
Brand Name :
Casun
Model Number :
B20SHD4351-56GPQ
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$24.94-$35
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29xc14m
Color :
black
current :
0.5A
Holding torque :
14mN.m
Customized :
The motor can be designed &manufactured with customized request.
Description

Nema8 14mN.m 0.5mp Stepper Motor with ball screw L200/250/300MM motor for Drawing instrument

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor

Motor Specifications

Step Angel

1.8 °

Fram Size

20mm

Number of Phase

2 Phase

Rated Current

0.5A

Holding Torque

14mN.m

Resistance

5.5ohm

Inductance

1.5mH

Rotor Inertia

2g-cm²

Motor weight

0.08kg

Lead Screw

SF0401

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
