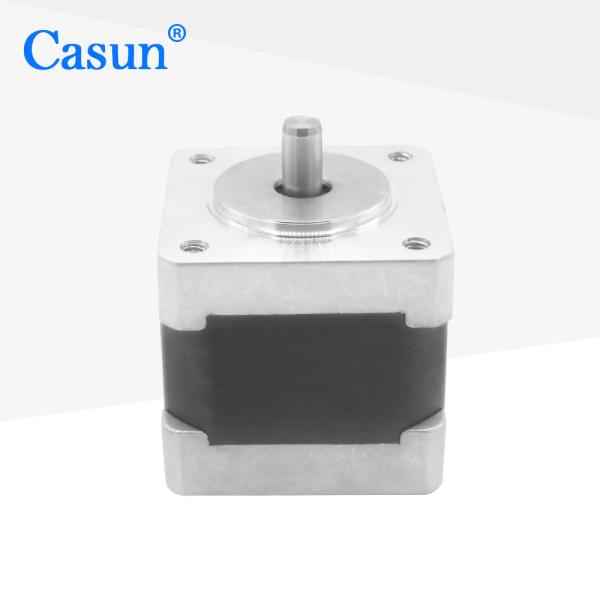

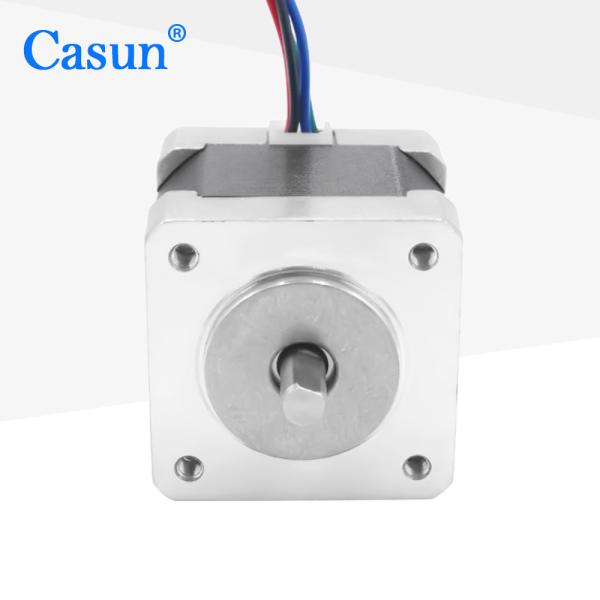

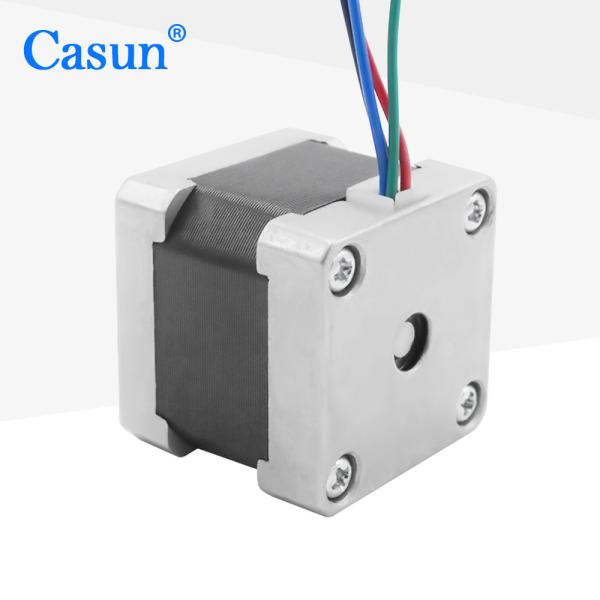

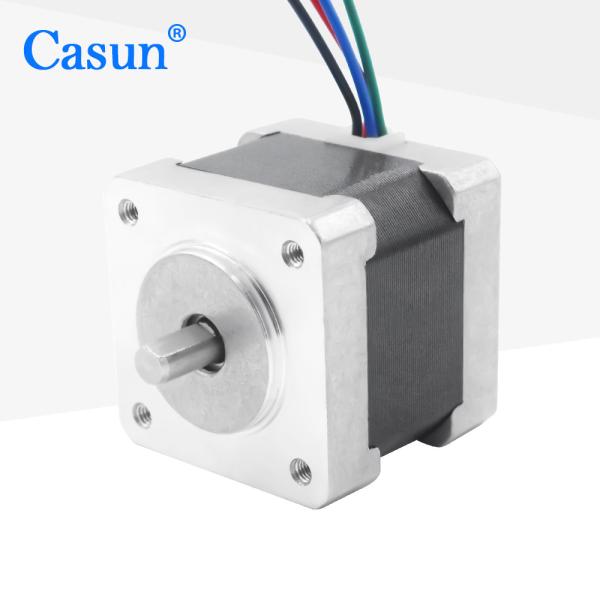

2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting
Specifications
Brand Name :
Casun
Model Number :
35SHD4103-10B
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$4.14-$6.98
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
155mN.m
Current :
1.0A
Motor Length :
34mm
Shaft :
Milling Flat Shaft 10mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting

The 35mm stepper motor can quickly start and stop after receiving control signals, and has good response speed.

Provide different configuration options, such as different step angles, lengths, and torque levels.

Features:

  • Established in China for 12 years, we have served more than 800 customers.

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • High torque and high precision are our specialties

  • Customizations on request

Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

155 mN.m

Resistance

3.8 ohm

Inductance

5.8 mH

Rotor Inertia

14 g-cm²

Motor weight

0.18 kg

Number of leads

4

Connection

Bipolar

Appearance

2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting

Dimensions

2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
