0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool
Specifications
Brand Name :
Casun
Model Number :
42SHD4002-24BH
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
300mN.m
Current :
0.55A
Motor Length :
34mm
Shaft :
Milling Flat Shaft 24mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

Stepping Motor 34mm Body 0.55A 0.3N.M NEMA 17 For CNC Machine Tool

The 42mm stepper motor does not require external sensors for position feedback during control, simplifying system design and reducing costs.

Accurate position control without feedback system.

Features:

  • Bipolar or unipolar versions available

  • Tailored service options

  • Available in single or double shaft versions

  • Offer "numerous international certifications" for high-tech and electronic industry equipment

  • Having operated in China for 12 years, we have catered to over 800 customers

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.55 A

Holding Torque

300 mN.m

Resistance

22 ohm

Inductance

28 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

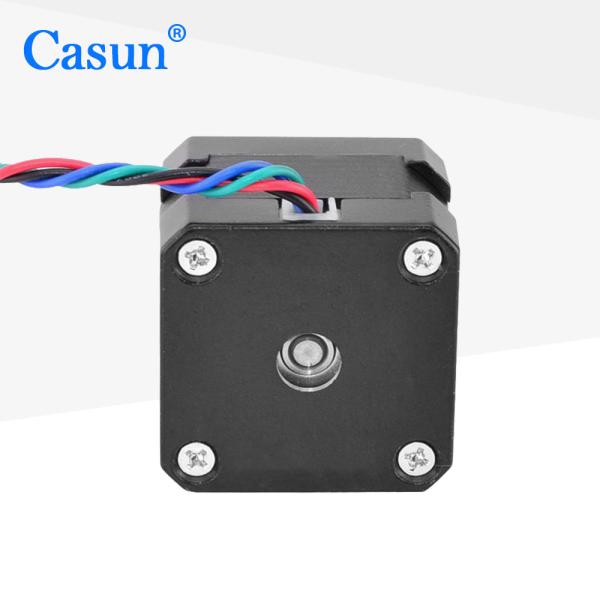

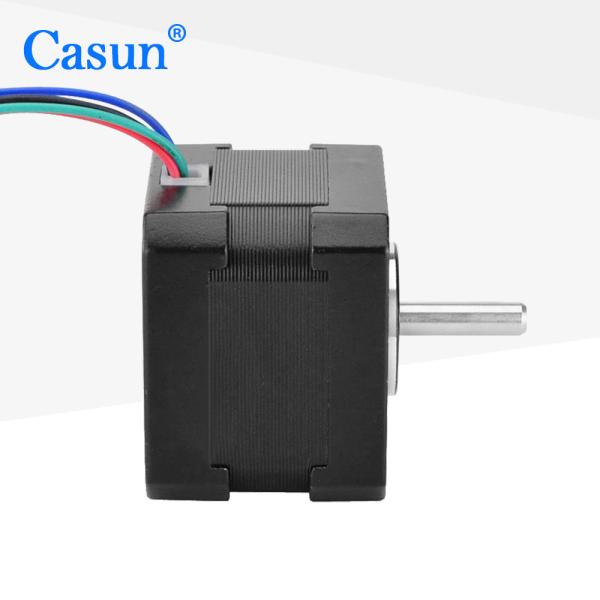

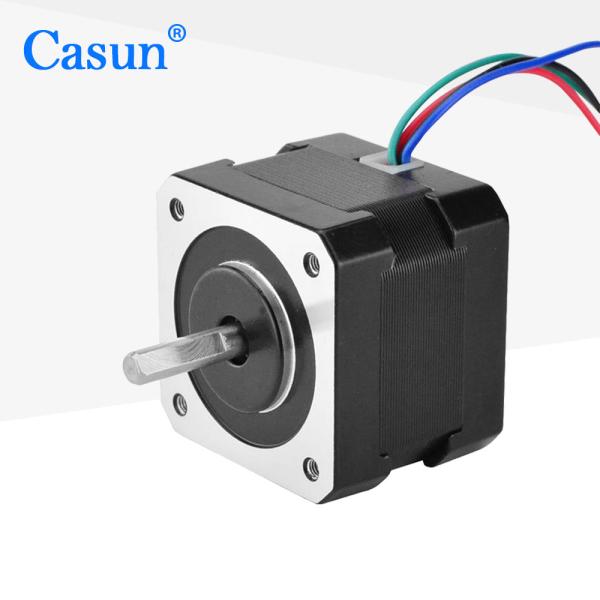

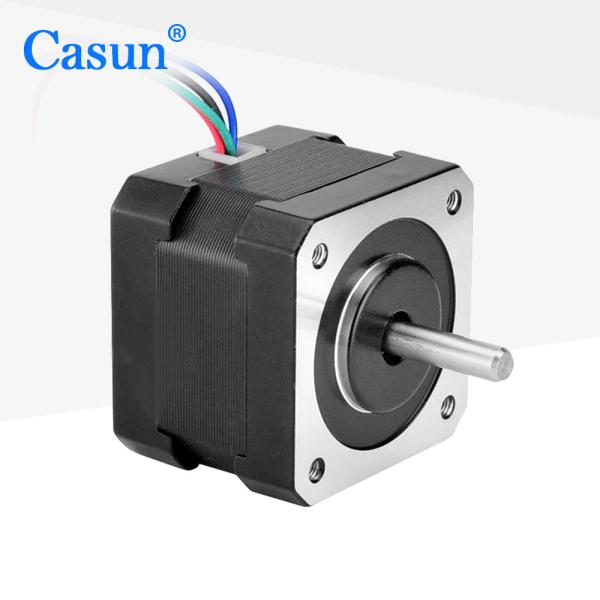

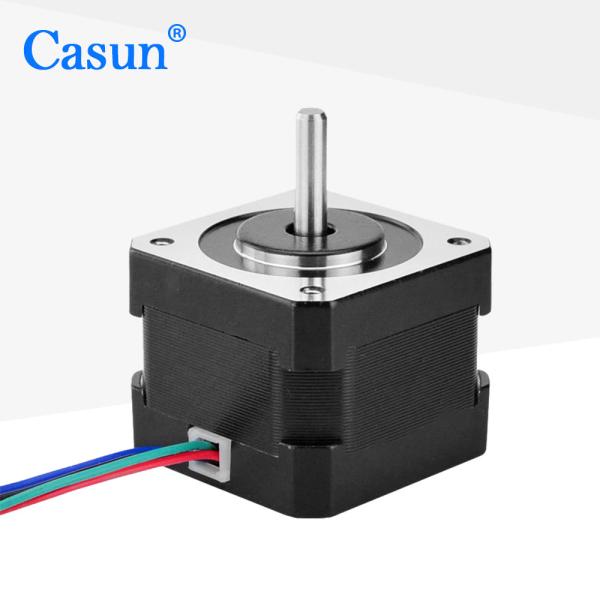

Appearance

0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool

Dimensions

0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool


Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool 0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool 0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool 0.55A 0.3N.M NEMA 17 Hybrid Stepping Motor 34mm Body For CNC Machine Tool

Please click the "Get a quote" button below to tell us your requirements.
