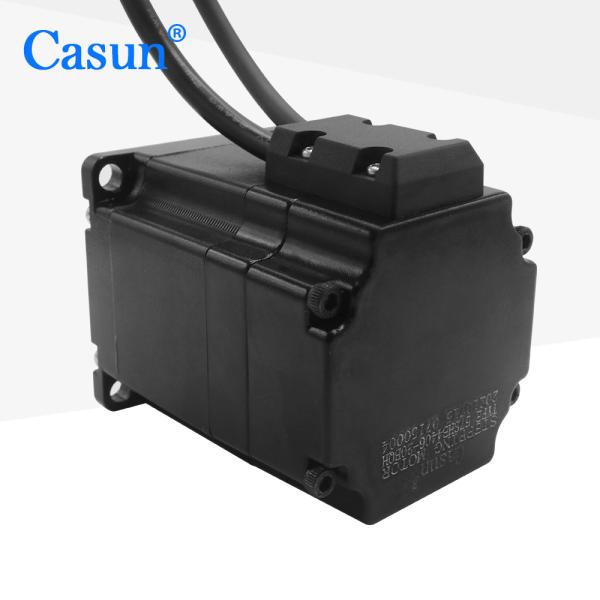

57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor
Specifications
Brand Name :
Casun
Model Number :
57SHB4406-20BQH
Certification :
CE, ISO, ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
US $20.00 - 10.00/ Piece
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100000/pcs per month
Delivery Time :
15 workdays
Packaging Details :
Carton:36x29x14cm
shaft :
6.35mm
torque :
1.2N.m
current :
3A
voltage :
2.7V
body :
54mm
application :
CNC machine
Customized :
The motor can be designed &manufactured with customized request.
Description

Nema 23 Colsed-loop Stepper Motor, 57*57*54mm 0.9 Degree 2 Phase, 1.2N.m Holding Torque.

Top Manufacturer Supplier 57*54mm 0.9 Degree Closed-Loop Nema 23 Stepper Motors 1.2N.M For Cnc Kit Electric Motor

The 57mm deceleration Colsed-loop stepper motor combines the characteristics of stepper motors, enabling precise positioning control and being suitable for applications that require high-precision positioning.

Features:

  • Bipolar or unipolar versions are available

  • We offer custom services and accept contract manufacturing. Wanted dealers! !

  • Available in single- or double-shaft versions

  • Professional drivetrain solution specialist

  • Customizations on request

Dimensions

57*54mm 0.9 Degree Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Electric Motor

Motor Specifications

Step Angel

 0.9 °

Fram Size

 57 mm

Number of Phase

 2 Phase

Rated Current

 3 A

Holding Torque

 1.2 N.m

Resistance

 0.9 ohm

Inductance

 4.5 mH

Rotor Inertia

 260 g-cm²

Motor weight

 0.8 kg

Shatf

 20 mm

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm		 27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
