Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
Specifications
Brand Name :
Casun
Model Number :
57SHD0037-21B
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
500mN.m
Current :
2.0A
Motor Length :
41mm
Shaft :
Milling flat Shaft 21mm Length
Shaft Diameter :
6.35mm
Customized :
The motor can be designed &manufactured with customized request.
Description

In 3D printers, stepper motors can precisely control the movement of the print head to ensure printing quality.

NEMA 23 stepper motors operate very smoothly at low speeds without any shaking or stepping loss.

Features:

  • High torque and high precision

  • accept contract manufacturing

  • Expertise in transmission system solutions, with a focus on specialized expertise

  • Combining proficient R&D with dedicated manufacturing processes

  • Professional research and development manufacturing

Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.0 A

Holding Torque

500 mN.m

Resistance

1.4 ohm

Inductance

2.5 mH

Rotor Inertia

135 g-cm²

Motor weight

0.42 kg

Number of leads

4

Connection

Bipolar

Appearance

Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer

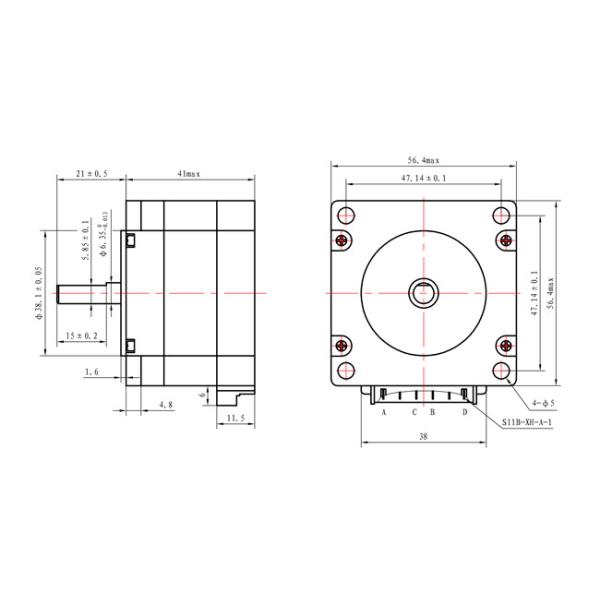

Dimensions

Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer


Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer Hybrid Stepper Motor NEMA 23 2.0A 0.5N.m 41mm Body For 3D Printer
