1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE
Specifications
Brand Name :
Casun
Model Number :
57SHD0045-20CB
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
353mN.m
Current :
0.4A
Motor Length :
41mm
Shaft :
Milling flat Shaft 20mm Length
Shaft Diameter :
8mm
Customized :
The motor can be designed &manufactured with customized request.
Description

Due to the absence of a commutator in stepper motors, mechanical wear is reduced, and the lifespan and reliability of the motor are improved.

Capable of quickly responding to control signals, achieving quick start, stop, and positioning.

Features:

  • High torque and high precision

  • accept contract manufacturing

  • We are experts in drivetrain solutions

  • With a 12-year history in China, we have assisted over 800 clients

  • Professional research and development manufacturing

Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

353 mN.m

Resistance

30 ohm

Inductance

34 mH

Rotor Inertia

135 g-cm²

Motor weight

0.42 kg

Number of leads

4

Connection

Bipolar

Appearance

1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE

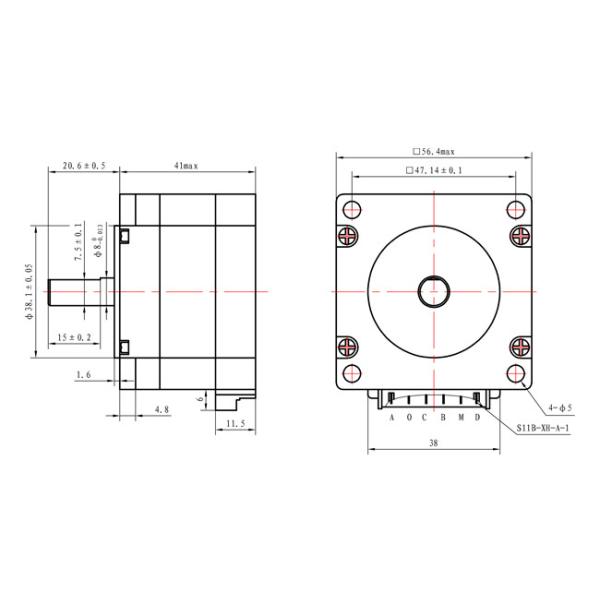

Dimensions

1.8 Degree 2 Phase Nema 23 Captive Stepper Motor 41mm Body With CE


Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
