NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC
Specifications
Brand Name :
Casun
Model Number :
57SHD8409-21S
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
1.26N.m
Current :
4.24A
Motor Length :
56mm
Shaft :
Dual Shaft 21mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

The dual output shaft design allows the motor to simultaneously drive two different loads or perform two different tasks.

Its flexible axis configuration allows it to be used in various applications, including robots, automation equipment, precision instruments, and more.

Features:

  • Experts in drivetrain solutions

  • We are open to contract manufacturing arrangements

  • Every stepper motor model is adaptable to various applications

  • Dealers are actively sought after

  • Our stepper motors are versatile and adaptable to various applications

Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

4 Phase

Rated Current

4.24A / 2.12A / 3.0A

Holding Torque

1.26N.m / 0.9N.m

Resistance

1.05ohm / 0.375ohm / 0.75ohm

Inductance

4.4 mH / 1.1mH

Rotor Inertia

220 g-cm²

Motor weight1

0.7 kg

Number of leads

8

Connection

Bipolar

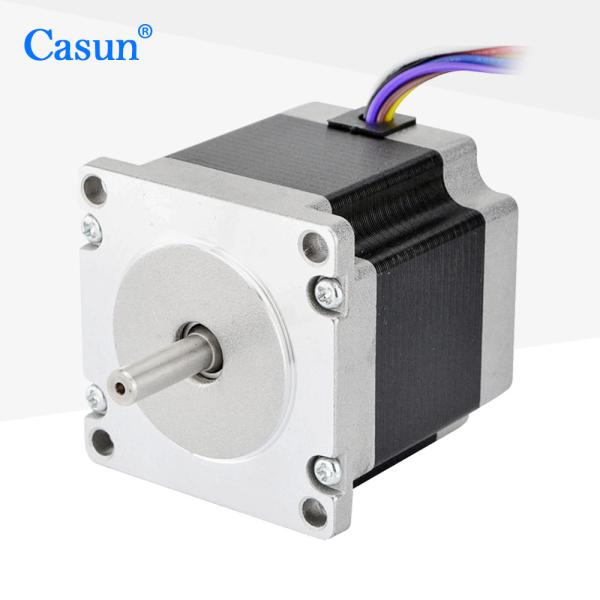

Appearance

NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC

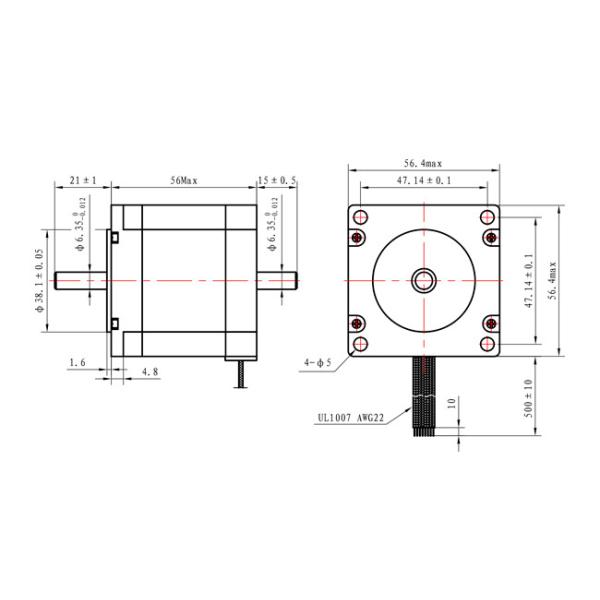

Dimensions

NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC


Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC NEMA 23 Dual Axis 8 Leads 1.8 Degree 1.26N.m Stepper Motor 57x57mm for CNC
