Specifications
Brand Name :
Casun
Model Number :
20SHD0302-83T1
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$13-$13.5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29xc14m
Color :
Black
current :
0.5Amp
Holding torque :
15mN.m
Detent torque :
2mN.m
Lead Screw :
Tr3.5×0.61
Customized :
The motor can be designed &manufactured with customized request.
Description

Desktop 3D printer, small mechanical device and precision positioning.

Through pulse signal control, it is easy to achieve complex motion trajectories.

Features:

  • Contract-based manufacturing services are welcome

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Every stepper motor model is adaptable to various applications

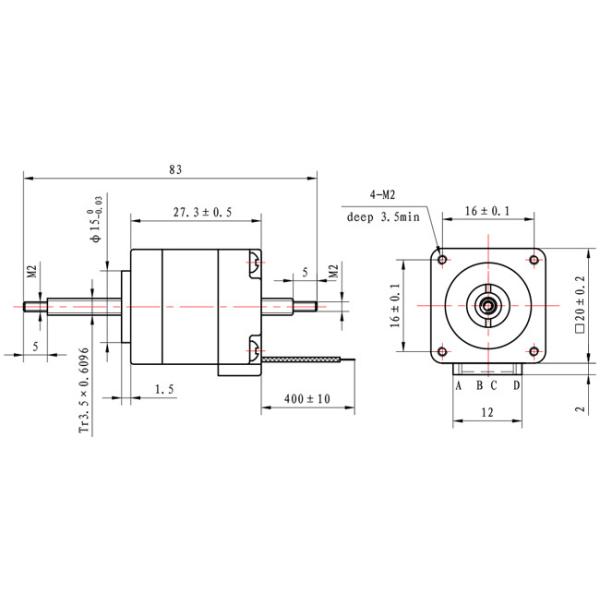

Dimensions

Nema 8 1.8 Degree Non Captive DC Stepper Motor 27mm Body 0.5A For Beauty Equipment

Motor Specifications

Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.5Amp

Holding Torque

15mN.m

Resistance

5.1ohm

Inductance

1.5mH

Rotor Inertia

2g-cm²

Motor weight

0.08kg

Lead Screw

Tr3.35X0.6096

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
