Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
Specifications
Brand Name :
Casun
Model Number :
57SHD4407-28H
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
1.2N.m
Current :
2.0A
Motor Length :
54mm
Shaft :
Milling Flat Shaft 28mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

The stepper motor does not experience speed fluctuations at low speeds, ensuring the stability and reliability of the system.

In the field of industrial automation, stepper motors can be used for driving and controlling various equipment.

Features:

  • High torque and high precision

  • Professional drivetrain solution specialist

  • Ten-year warranty and purchase with confidence

  • Provide “multiple international certifications” for high-tech industry and electronic industry equipment

  • Provide bespoke services

Appearance

Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC

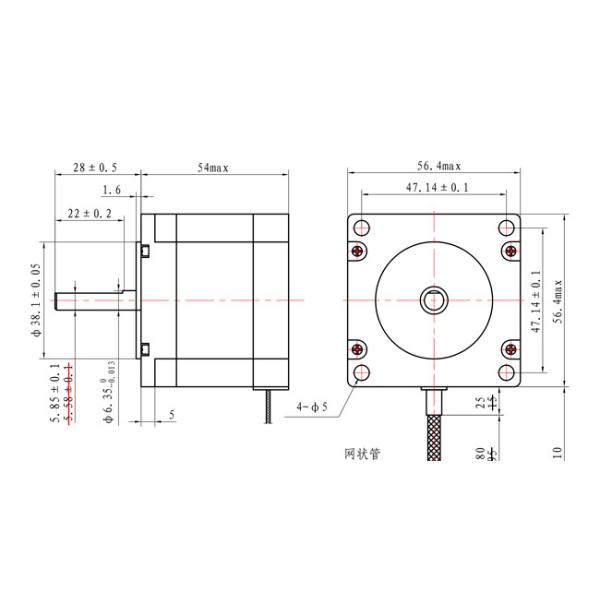

Dimensions

Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC

Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.0 A

Holding Torque

1.2 N.m

Resistance

1.4 ohm

Inductance

5 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC
