Specifications
Brand Name :
Casun
Model Number :
57SHD0807-20B
Certification :
CE, ISO, ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
US $16.00 - 13.68/ Piece
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100000/pcs per month
Delivery Time :
15 workdays
Packaging Details :
Carton:36x29x14cm
shaft :
6.35mm
torque :
2N.m
current :
3A
voltage :
6V
body :
76mm
application :
CNC machine
Customized :
The motor can be designed &manufactured with customized request.
Description

Nema 23 Stepper Motor, 57*57*76mm 1.8 Degree 2 Phase, 2N.m Holding Torque.

High Quality Supplier Nema 23 Stepper Motors 2N.M For Cnc Kit Dc Motor

The 57mm deceleration stepper motor combines the characteristics of stepper motors and reducers, enabling precise positioning control and being suitable for applications that require high-precision positioning.

Open-loop control eliminates the need for position feedback, thereby reducing power consumption.

Features:

  • Bipolar or unipolar versions are available

  • We offer custom services and accept contract manufacturing. Wanted dealers! !

  • Available in single- or double-shaft versions

  • Professional drivetrain solution specialist

  • Customizations on request

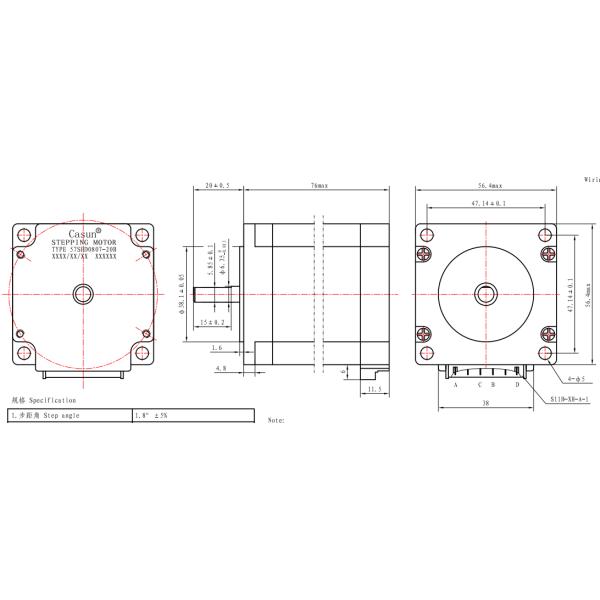

Dimensions

High Precision Stepping Motor Nema 23 76mm Stepper Motors For Cnc Machine

Motor Specifications

Step Angel

 1.8 °

Fram Size

 57 mm

Number of Phase

 2 Phase

Rated Current

 3 A

Holding Torque

 2 N.m

Resistance

 2 hm

Inductance

 8 mH

Rotor Inertia

 460 g-cm²

Motor weight

 1 kg

Shatf

 20 mm

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm		 27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

High Precision Stepping Motor Nema 23 76mm Stepper Motors For Cnc Machine High Precision Stepping Motor Nema 23 76mm Stepper Motors For Cnc Machine High Precision Stepping Motor Nema 23 76mm Stepper Motors For Cnc Machine High Precision Stepping Motor Nema 23 76mm Stepper Motors For Cnc Machine
