Specifications
Brand Name :
Casun
Model Number :
42SHD4287-24BH-2/ 17HS15-1504S1
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$2.5-$5.5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
450mN.m
Current :
1.5A
Motor Length :
40mm
Shaft :
Milling Flat Shaft 24mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description

NEMA 17 2 phase hybrid stepper motor low noise with CE certifications for 3d printer

The 42mm stepper motor is a space-efficient option for installation and arrangement in many industrial automation applications, such as 3D printers, textile machinery, and medical equipment.

Features:

We have been operating in China for 12 years, and we have served more than 800 clients.

Our specialty is providing custom services.

expert in drivetrain solutions

We are actively looking for dealers!

Custom services are available, and contract manufacturing is accepted.

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

450 mN.m

Resistance

2.3 ohm

Inductance

4.4 mH

Rotor Inertia

54 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar

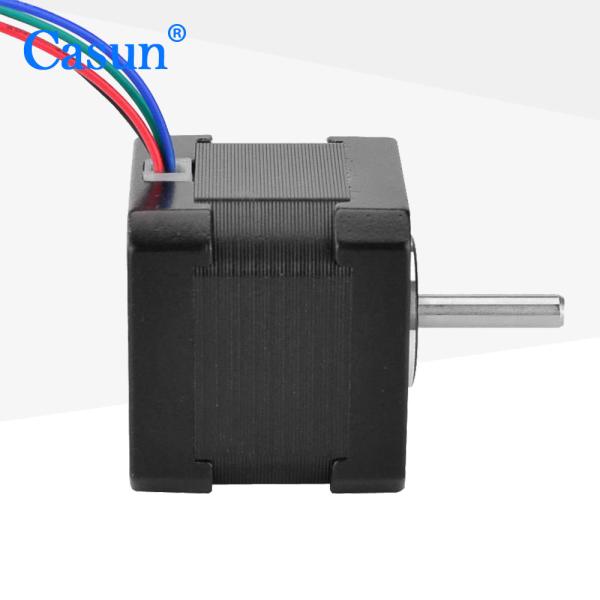

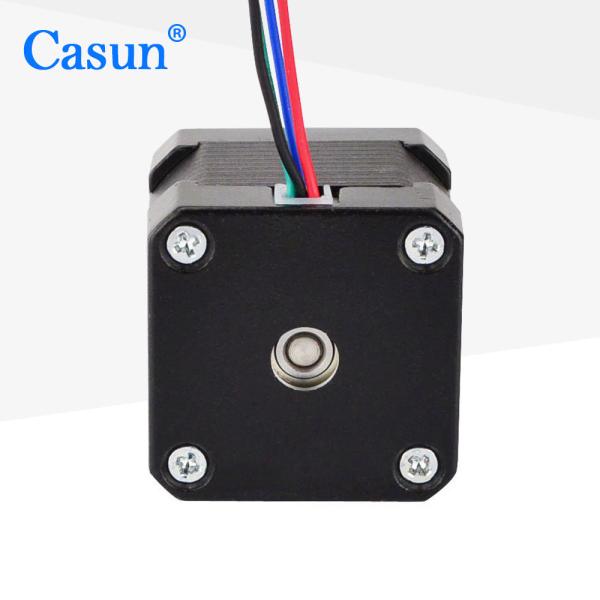

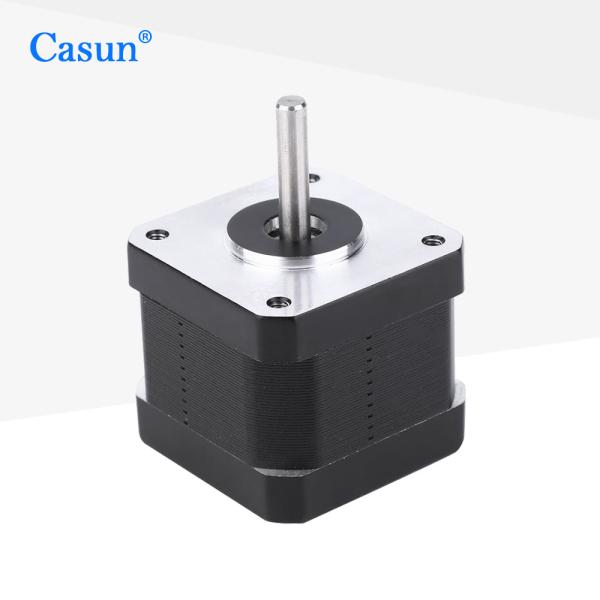

Appearance

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS

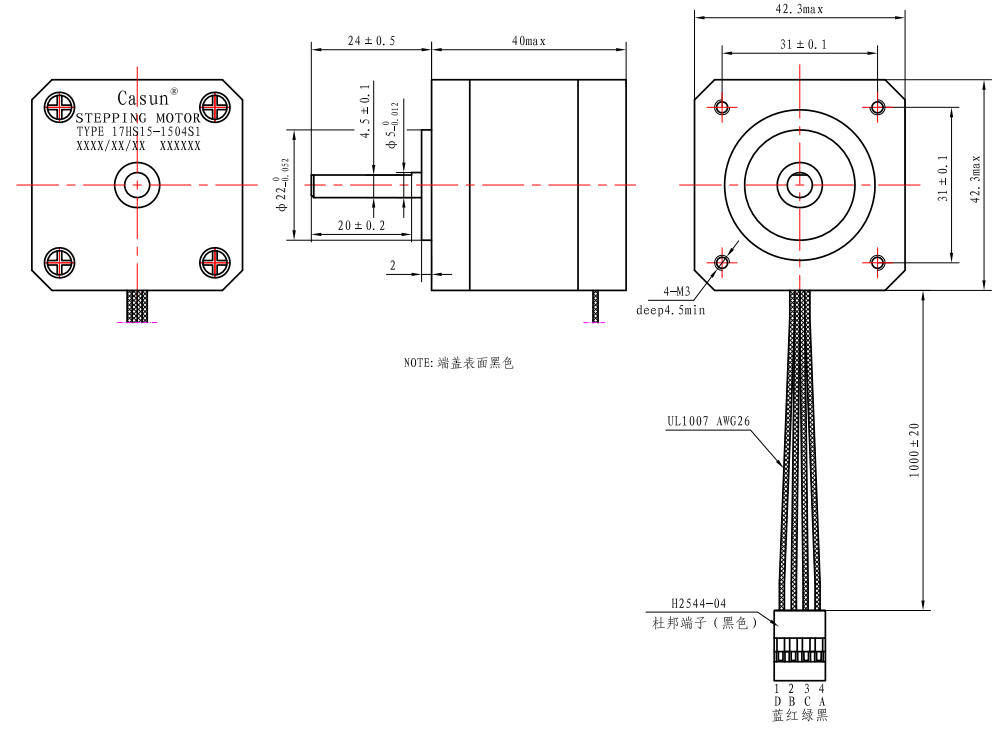

Dimensions

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS


Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A

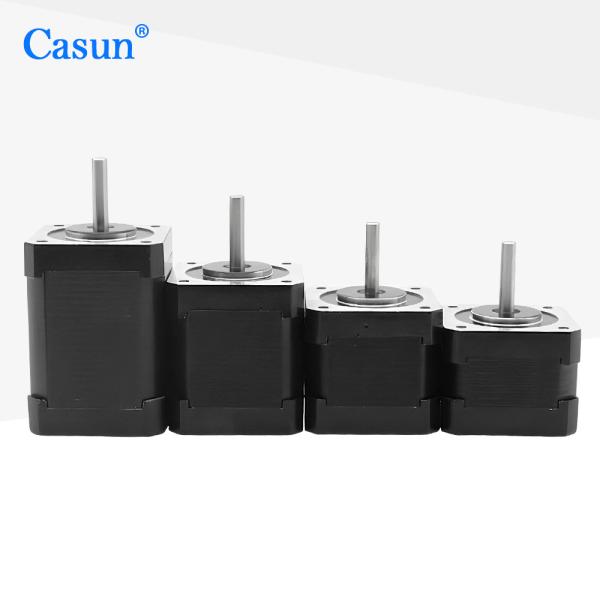

42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
