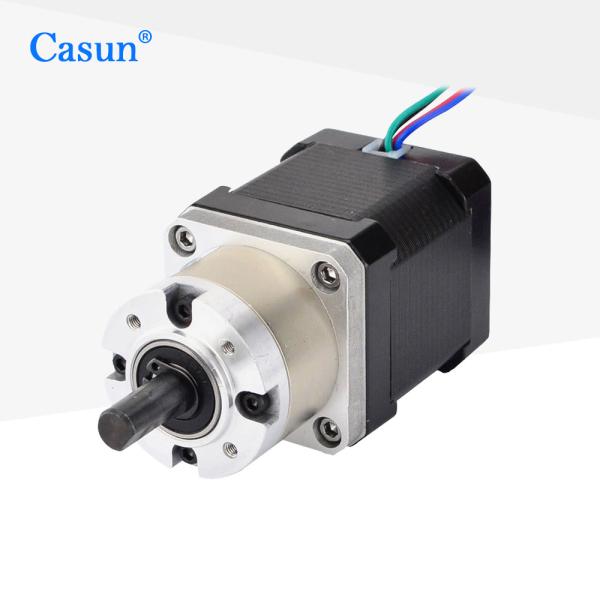

NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm
NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm
NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm
NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm
NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm
NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm
NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm
NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm
Specifications
Brand Name :
Casun
Model Number :
17HS19-1684S-PG27
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$26.46-$29.46
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angle(degrees) :
1.8 Degree
Rated voltage :
2.77V
Motor length :
48MM
Customized :
The motor can be designed &manufactured with customized request.
Reduction ratio :
26.8：1
Description

The deceleration stepper motor can be used in conjunction with various types of sensors and controllers.

The stepper motor itself has the characteristic of open-loop control, which can achieve precise step angle control.

Features:

  • Bipolar or unipolar versions available

  • We provide customized services and engage in contract manufacturing

  • Available in single or double shaft versions

  • Engaged in professional research and development manufacturing

  • Customizations on request

Dimensions

NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

440 mN.m

Resistance

1.65 ohm

Inductance

2.8 mH

Rotor Inertia

38g-cm²

Motor weight

0.5kg

Gear Reduction Ratio

26.8:1

Connection

Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm		 27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm NEMA 17 Ratio 27:1 Planetary Gear Reducer Geared Stepper Motor with gearbox for cnc Mechanical arm
