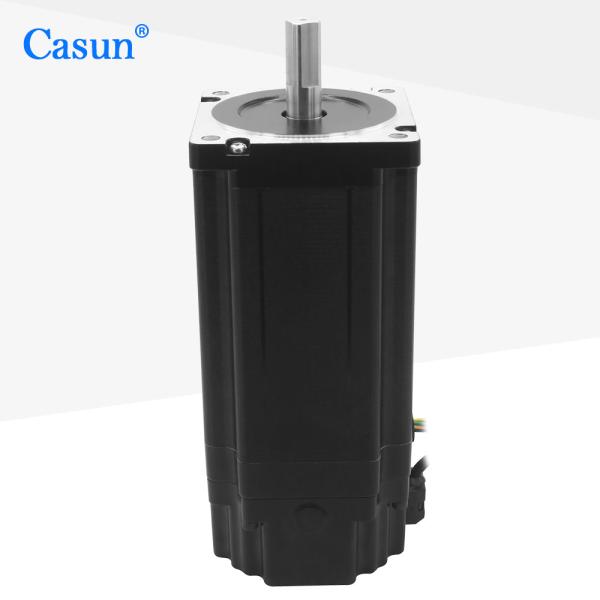

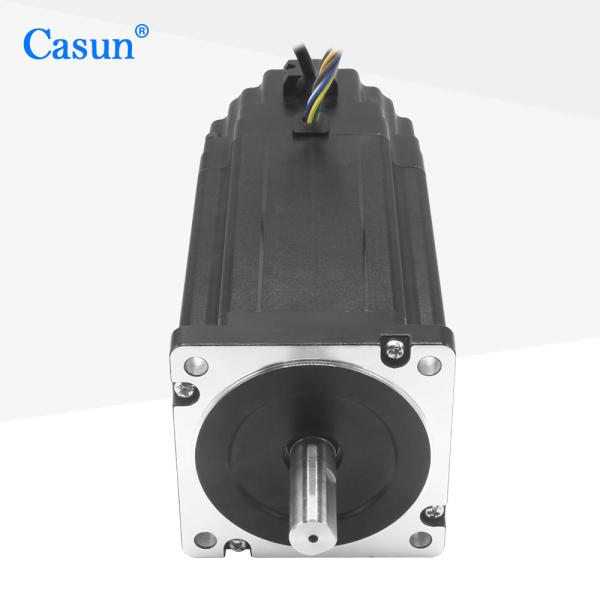

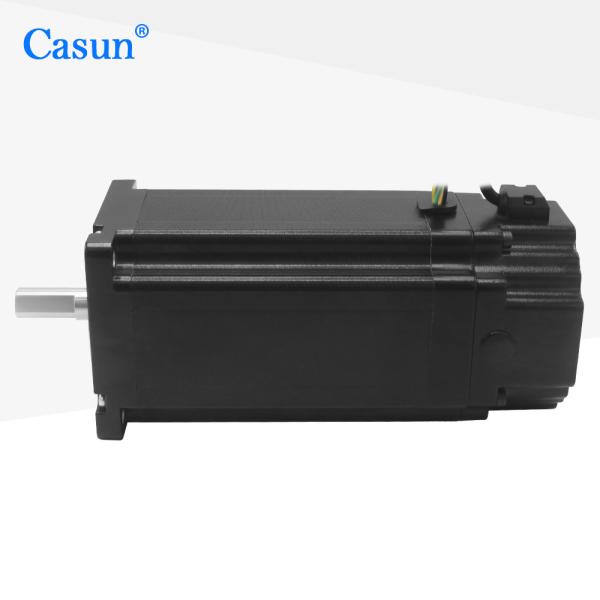

NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
Specifications
Brand Name :
Casun
Model Number :
86SHD8503-37BH-HP86
Certification :
CE,ROSH,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$24.92-$25.96
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
10.6N.m max
Current :
5.7A max
Motor Length :
150mm
Shaft :
Keyway shaft 32mm Length
Description

Suitable for various mechanical and automation equipment, such as CNC machine tools, packaging machinery, textile machinery, etc.

The braking function of the stepper motor can quickly stop the motor when needed.

Features:

  • We welcome contract manufacturing partnerships

  • Enjoy a ten-year warranty and purchase with confidenc

  • Combining proficient R&D with dedicated manufacturing processes

  • Expect to hear from our engineers within 48 hours with the best solution for your needs

  • Specialist in professional drivetrain solutions

Dimensions

NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery

Motor Specifications

Step Angel

 1.8 °

Fram Size

 86 mm

Number of Phase

 2 Phase

Rated Current

 5.7 A max

Holding Torque

 10.6N.m max

Resistance

 0.42ohm

Inductance

 4.7mH

Rotor Inertia

 3600 g-cm²

Motor weight

 5.0 kg

Number of leads

 8

Connection

 Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
86SHD4003-32 4.0N.m 1.8° 69mm Key Shaft-32mm 4.0A
86SHD4101-32 4.5N.m 1.8° 76mm Key Shaft-32mm 4.0A
86SHD4201-37 5.6N.m 1.8° 98mm Key Shaft-37mm 4.0A
86SHD4314-37 6.8N.m 1.8° 112mm Key Shaft-37mm 5.0A
86SHD4404-37 8.0N.m 1.8° 127mm Key Shaft-37mm 5.0A
86SHD4505-37 12.0N.m 1.8° 150mm Key Shaft-37mm 5.5A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery NEMA 34 Stepping Motor With Broke 10.6N.m 8 Wire For Textile Machinery
