H-1 Magnesium Sacrificial Anode Low Resistivity Soils Typically Below 2,000 Ohm-Cm Standard Potential
H-1 Magnesium Sacrificial Anode Low Resistivity Soils Typically Below 2,000 Ohm-Cm Standard Potential
H-1 Magnesium Sacrificial Anode Low Resistivity Soils Typically Below 2,000 Ohm-Cm Standard Potential
H-1 Magnesium Sacrificial Anode Low Resistivity Soils Typically Below 2,000 Ohm-Cm Standard Potential
H-1 Magnesium Sacrificial Anode Low Resistivity Soils Typically Below 2,000 Ohm-Cm Standard Potential
H-1 Magnesium Sacrificial Anode Low Resistivity Soils Typically Below 2,000 Ohm-Cm Standard Potential
Specifications
Brand Name :
OEM
Model Number :
OEM Custom-made high quality American standard C/D/S shape Mg anode , Zn anode, Al anode for cathodic protection
Certification :
ASTM G-97, ISO, DNV
Place of Origin :
China
MOQ :
10 Kilograms
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
300 Metric Ton/Metric Tons per Month
Delivery Time :
1 FCL:14 Days
Packaging Details :
On pallet with steel bundles
Content :
Magnesium Mg
Usage :
Anti-corrosion/Cathodic Protection
Shape :
tear drop
Sacrificial Magnesium :
sacrificial magnesium hull anode
Description

Magnesium anodes for cathodic protection system

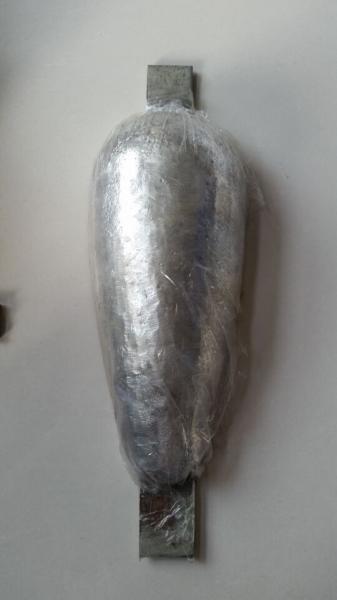

tear drop anode

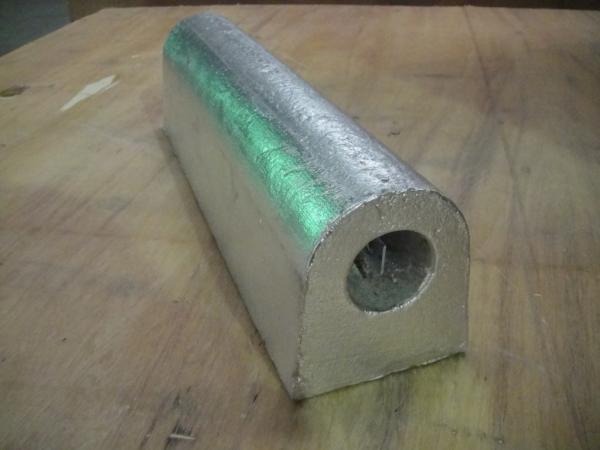

condenser anode

H-1 Magnesium Sacrificial Anode Low Resistivity Soils Typically Below 2,000 Ohm-Cm Standard Potential

Standard : ASTM G-97

Chemical compositions of cast magnesium anode (%)

Element

High potential

AZ63B

AZ63C

AZ63D

Al

<0.01

5.30-6.70

5.30-6.70

5.0-7.0

Zn

---

2.50-3.50

2.50-3.50

2.0-4.0

Mn

0.5-1.30

0.15-0.70

0.15-0.07

0.15-0.70

Si (max)

0.05

0.10

0.30

0.30

Cu (max)

0.02

0.02

0.05

0.10

Ni (max)

0.001

0.002

0.003

0.003

Fe (max)

0.03

0.005

0.005

0.005

Others each

0.05

---

--

---

Others total

0.30

0.30

0.30

0.30

Mg

Balance

Balance

Balance

Balance

Electrochemical Properties of cast magnesium anodes

Item

Open-circuit Voltage

Close-circuit Voltage

Actual capacitance

Current efficiency

(-V)

(-V)

(A.h/g)

(%)

High Potential

1.70-1.75

1.57-1.62

≥ 1.100

≥ 50

Low Potential

(AZ63)

1.50-1.55

1.45-1.50

≥ 1.105

≥ 50

Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)

Application:

anodes are recommended for use in low-resistivity soils typically below 2,000 ohm-cm. Because the anodes have a lower driving voltage than high-potential anodes, they are ideally suited for structures where over protection is of concern. Their lower-current output also allows these anodes to operate longer than their high potential counterparts in more conductive environments.

Company Introduction:

We are a professional anode provider over 16 years ,main Products:

* Magnesium anodes ( ASTM-G97)

* Al-Zn-In anodes (GAIII)

* Zinc anodes (ASTM B418-95 US MILL 18001K)

* High silicon cast iron anodes ( ASTM-A518-3,BS1591)

H-1 Magnesium Sacrificial Anode Low Resistivity Soils Typically Below 2,000 Ohm-Cm Standard Potential

Contact us now:

Vivian Jiang(Ms.)

International Marketing Manager

-----------------------------------------------

China Hunan High Broad New Material Co.Ltd.

70 Chezhan North Road,Changsha, China 410100

Tel:+86-731-85717705 Fax:+86-731-85716569

Mobile/Whatsapp: +86-139-7488-3816

Email: metal@vip.163.com,vivian@hbnewmaterial.com

Skype: vivian.jjy
