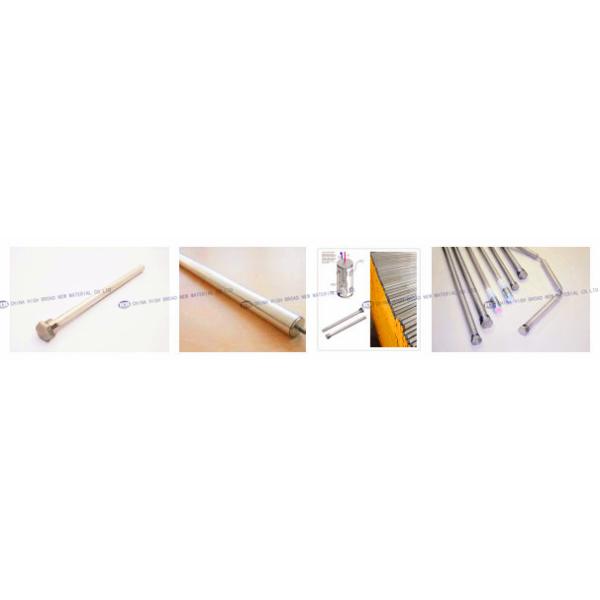

AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
Specifications
Brand Name :
High Broad magnesium anode rod manufacture
Model Number :
magnesium anode rod AZ63B & magnesium anode rod AZ31B ASTM B 843-1995
Certification :
DNV CE ASTM ASTM ISO
Place of Origin :
CHINA HUNAN CHANGSHA
MOQ :
10 kgs boiler magnesium anode
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,credit card
Supply Ability :
5000 tons/year
Delivery Time :
3 work day
Packaging Details :
On Pallet with steel bundles or Wooden Case or as Customer Requested
Mg Anodes :
Magnesium Anodes Rod for Water Heater
astm magnesium anodes :
magnesium anode rod
Sacrificial anode :
Extruded Magnesium Anode Rod for Water Heater
Galvanic Anode :
boiler magnesium anode
mg anode rod :
magnesium anode rod AZ31B ASTM B 843-1995
ASTM B 843-1995 :
ASTM B 843-1995 magnesium anode rod AZ63B
magnesium anode :
magnesium anode az31b az63
Origin :
Changsha Hunan China
water heater anode :
Extruded Magnesium Anode Rod for Water Heater
Diameter :
1.2, 1.6, 2.0, 2.4, 3.0, 4.0mm
Standard :
JIS, GB, DIN, BS, ASTM, AISI
Description

AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater

boiler magnesium anode

1. Magnesium anode for water heater

2. Standard:

ASTM B 843-1995

3. Application:

Water Heater,Water container,Pre-polarization of steel structure in seawater,Gas pipe,Anticorrosion of steel and iron structure where high resistant and electrolyte(soil and water) existed.

4. Chemical Composition

Type Alloy Element Impurity Elements(Max)
Al Zn Mn Mg Fe Cu Ni Si Other
Each Total
MGAZ63B 5.3-6.7 2.5-3.5 0.15-0.60 Balance 0.003 0.01 0.001 0.08 _ 0.30
MGAZ31B 2.7-3.5 0.6-1.4 0.2-1.0 Balance 0.003 0.01 0.001 0.08 0.05 0.30

5. Dimensions

Anode Dia(mm) Core Dia(mm) Screw Unit weight(g/cm)
φ13.97 Φ2.0 NPE-ASMT/BSP/G/R 2.83
Φ19.05 Φ3.4 NPE-ASMT/BSP/G/R 5.66
Φ21.34 Φ3.4 NPE-ASMT/BSP/G/R 6.85
Φ26.67 Φ3.4 NPE-ASMT/BSP/G/R 10.42
Φ33.40 Φ3.4 NPE-ASMT/BSP/G/R 16.08
Φ39.65 Φ4.8 NPE-ASMT/BSP/G/R 23.07
Φ51.40 Φ4.8 NPE-ASMT/BSP/G/R 37.96
*Customized Size Available

magnesium anode

Advantages

(1)Corrosion protection magnesium anode

(2)protect water heater, water containers of steel structure magnesium anode

(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)

Usage:

Anode is mainly used in equipment such as water heaters, heat
exchangers, evaporators, and boilers, etc. It can soften water,
remove dirt, and prolong the life of the main machine. Magnesium
alloy water heater sacrificial anode can be divided into casting type
and extruded type is widely used for the anti-corrosion of water
heater and boiler.
Standards: ASTM B 843-1995 GB/T17731-2004


Magnesium rod quality standards:

1 Magnesium oxide (MgO) content,% ≥ 98.5
2 Calcium oxide (CaO) content,% ≤ 0.3
3 Iron (Fe) content, % ≤ 0.1
4 Silicon (Si) content, % ≤ 0.5
5 Aluminum OxideAl2O3% ≤ 0.3

Testing report:

Item AZ63 As per standards ASTM B-843 1995 Jiaozuo Yirui magneisum Alloy Co.Ltd.
Alloy elements:
Al 5.3-6.7% 5.38%
Zn 2.5-3.5% 2.69%
Mn 0.15-0.60% 0.17%
Mg Balance Remainder

Impurity:(Max) As per standards ASTM B-843 1995 Jiaozuo Yirui Magneisium Alloy Co.,Ltd.
Fe 0.003% 0.002%
Cu 0.010% 0.02%
Ni 0.001% 0.0001%
Si 0.080% 0.012%
Pb BDL(DL:0.0001%)
Other 0.30total -


If any one need samples,feel free to connect me.

AZ63B AZ31B ASTM B 843-1995 Extruded magnesium anode rod for water heater
