Specifications
Brand Name :
HB
Model Number :
Flex 44"
Certification :
ISO ASTM
Place of Origin :
China
MOQ :
1 piece
Price :
depends on order quantity
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 pcs 15 days
Delivery Time :
10 days
Packaging Details :
in wood case on pallet
44%22 :
Magnesium anode FLEX
npt :
NPT 3/4" NPT 1/2 "
section :
4 sections or customized
material :
Mg, AlZn , Al alloys
Description

Magnesium Flexible anode rod Hex plug 44 " , water heater anode rod

Residental Magnesium Flexible Anode Rod, Hex Plug, 44-Inch

Ultra Flexible segmented sacrificial magnesium anode rodaluminum zinc anode rod

Specification : :

Flexible Magnesium anode / aluminum anode rods are designed for those limited spaces where a straight anode rod will be unable to be inserted into the water heater due to limited access directly above, such as low ceilings, closets, attics, under stairwells or in basements. Just bend the anode rod at its flexible section return it back to straight once inserted into your water heater, boiler, etc.

Anode rods are the most important line of defense in preventing corrosion and leaks in your water heater. These devices work because the metal in the rod is sacrificed so the tank does not corrode. As the anode works, the life of the water heater is increased. The anode should be checked and replaced every couple of years.

Application :

Segmented Flexible Magnesium /Aluminum Anodes are usually used in a small diameter anodes requirement,such as for water heaters,boilers,water storage tanks,heat plumbing,gas stations CP systems. This anode is of the highest quality and will fit most Haier, Rheem, Vulcan, Dux, Rinnai and many others.

Chemical compositions Flexible Aluminum Anode Rods :

Type Al Zn Silicon Fe Sn Others Mg
Aluminum anode Balance 4.0-5.0 0.25 0.25 0.05-0.25 0.15 -

* We can do according to customized size and requirements.

Electrochemical properties of Flexible Aluminum Anode Rods:

Type Open-circuit voltage (-V) Close-circuit voltage (-V)Zn Actual capacitance (A·h/kg) Current efficiency (%)
Aluminum anode 1.10-1.18 1.05-1.12 2400 85

* We can do according to customized size and requirements.

Chemical compositions Flexible Magnesium Anode Rods :

Type Al Zn Mn Fe Cu Ni Si Others Mg
AZ31B 2.5-3.5 0.6-1.4 0.2-1.0 0.005 0.01 0.001 0.1 0.3 Balance
Mg-Mn 0.01 - 0.5-1.3 0.03 0.02 0.001 0.05 0.3 Balance

Electrochemical properties of Flexible Magnesium Rod Anodes:

Type Open-circuit voltage (-V) Close-circuit voltage (-V)Zn Actual capacitance (A·h/g) Current efficiency (%)
AZ31B 1.50-1.55 1.45-1.50 ≥1.105 ≥50
Mg-Mn 1.70-1.75 1.57-1.62 ≥1.100 ≥50

* We can do according to customized size and requirements.

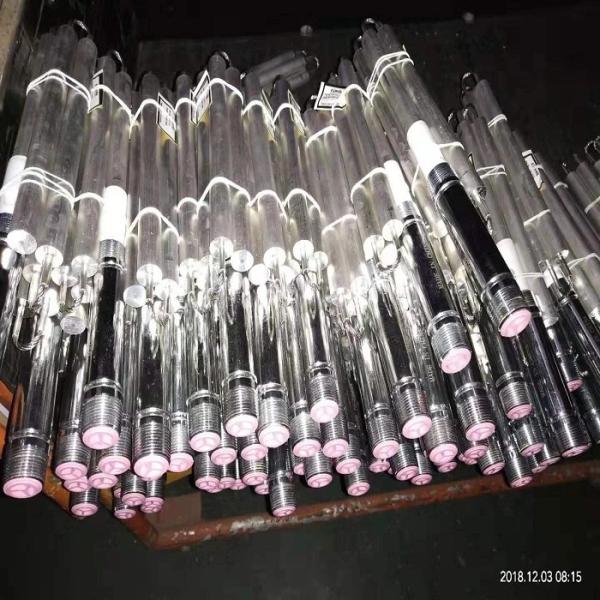

Hex Plug 44

Contact us:

Vivian Jiang

-----------------------------------------------

China Hunan High Broad New Material Co.Ltd.

70 Chezhan North Road,Changsha, China 410100

Tel:+86-731-85717705 Fax:+86-731-85716569

Mobile/Whatsapp: +86-139-7488-3816

Email: vivian@hbnewmaterial.com

Skype: vivian.jjy

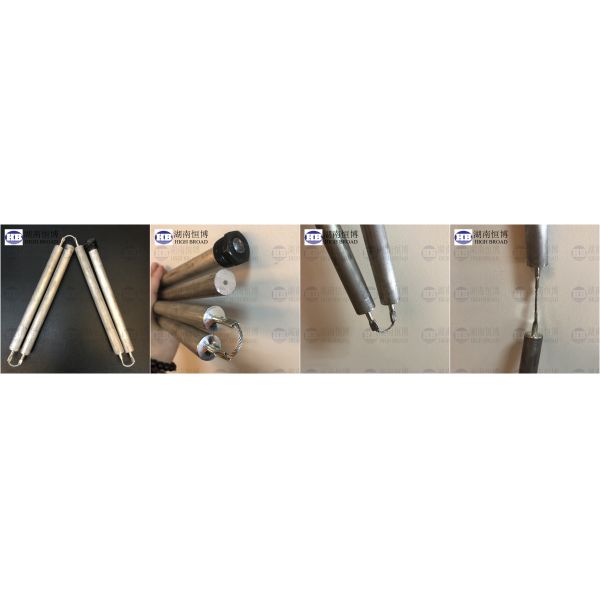

Hex Plug 44
