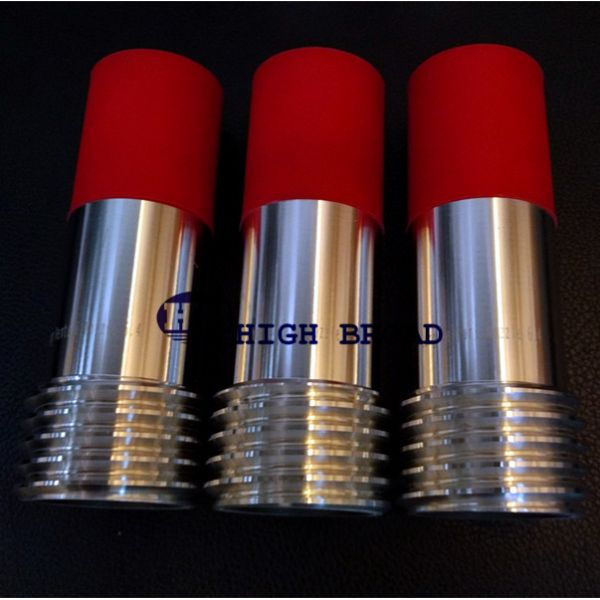

Hot pressed Boron Carbide Venturi Nozzle With Aluminum Jacket
Hot pressed Boron Carbide Venturi Nozzle With Aluminum Jacket
Hot pressed Boron Carbide Venturi Nozzle With Aluminum Jacket
Hot pressed Boron Carbide Venturi Nozzle With Aluminum Jacket
Specifications
Brand Name :
HIGH BROAD
Model Number :
Boron carbide Straight Bore nozzle
Certification :
ISO
Place of Origin :
CHINA
Payment Terms :
T/T, Western Union, MoneyGram,PayPal
Packaging Details :
each nozzle in plastic tube then in export carton
MOQ :
20 pieces
Material :
Boron carbide nozzle with aluminum jacket
Thread :
1-1/4 ,11-1/2 N.P.S.M
Length :
130mm-210mm
I.D :
1/4"(6.4mm)-1/2"(12.7mm)
Type :
Venturi
Other :
Straight
Description

Venturi Nozzle

Gas dynamic of venturi nozzle is better than straight-hole nozzle, the vortex is improved or ceased to exist, greatly reduced the pressure loss in the same pressure conditions. Abrasive exports increased to more than double the speed, efficiency than the straight-hole nozzle to increase 15% -40%, 20% lower abrasive consumption.

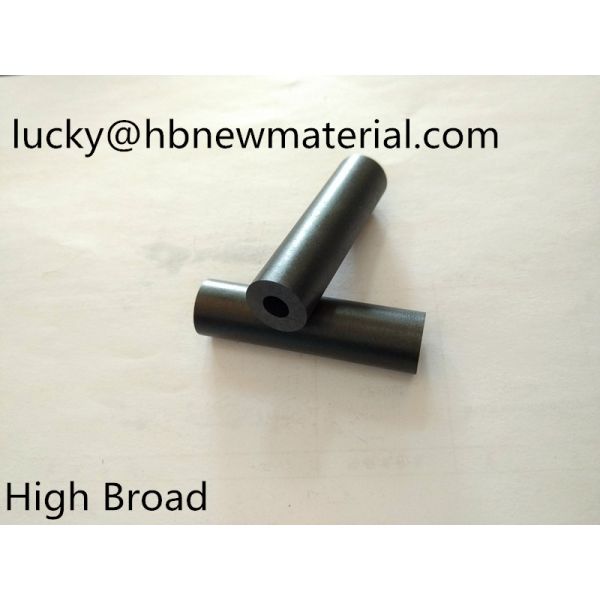

Boron carbide liner with aluminum jacket and threads or flange

Thread Style: 1-1/4 ,11-1/2 N.P.S.M
MODEL NO.
I.D.
O.D.
LENGTH
HB-SBS-4
1/4" (6.4mm)
1-5/8" (42mm)
130mm
HB-SBS-5
5/16"(7.9mm)
1-5/8" (42mm)
150mm
HB-SBS-6
3/8" (9.5mm)
1-5/8" (42mm)
170mm
HB-SBS-7
7/16"(11.1mm)
1-5/8" (42mm)
200mm
HB-SBS-8
1/2" (12.7mm)
1-5/8" (42mm)
210mm

Hot pressed Boron Carbide Venturi Nozzle With Aluminum Jacket

Straight hole nozzle is usurally used withinthe sand-blasting machines,which have low spray

intensity and narrow closed struture.

Hot pressed Boron Carbide Venturi Nozzle With Aluminum Jacket

Product Advantage:

(1)High hardness and wear resistance
(2)Heat resistance and corrosion resistance

(3)High quality, lowest price

(4)Long service live
