Specifications
Brand Name :
High Broad
Model Number :
Magnesium anode
Certification :
ASTM
Place of Origin :
CHINA
MOQ :
1MT
Price :
TBA
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
export 5000MT each year
Delivery Time :
1FCL: 10 Days
Packaging Details :

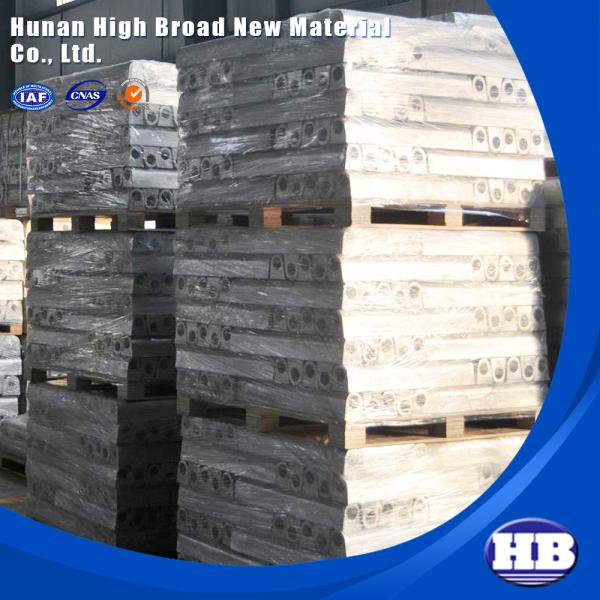

Magnesium anode on pallet with steel bundles
Material :
Magnesium anode
Shape :
D S C
Process :
Cast
Other :
Extruded
Type :
Sacrifical Anodes
Standard :
ASTM
Usage :
Cathodic protection
Description

ASTM Magnesium Anode Used As Sacrificial Anode In Cathodic Protection

Magnesium anodes

Magnesium anode is used as a sacrificial anode in cathodic protection. Magnesium has the highest driving voltage of all the materials used for sacrificial anodes. Magnesium is low on the noble scale, and therefore corrodes easily.

We supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys. The sizes range from 3D3 to 48D5 and 60-pound anodes. Round High Potential one-pound Anodes are also available, as are condenser anodes and all sizes of Extruded Anodes and Magnesium Ribbon.

ASTM Stardards to make sure the high potential magnesium anodes exceed 50% efficiency.
Anode Model
ASTM B843-M1C
ASTM B843-AZ63B
Open Circuit Potential (-V)
1.70-1.75
1.50-1.55
Close Circuit Potential (-V)
1.58-1.62
1.45-1.50
Current Capacity
500A.h/lbs(1100A.h/kg)
550A.h/lbs(1230A.h/kg)
Current efficiency
50%
55%
Reference Electrode
saturated calomel reference
saturated calomel reference

ASTM Magnesium Anode As Sacrificial Anode In Cathodic Protection
Magnesium anode specifications

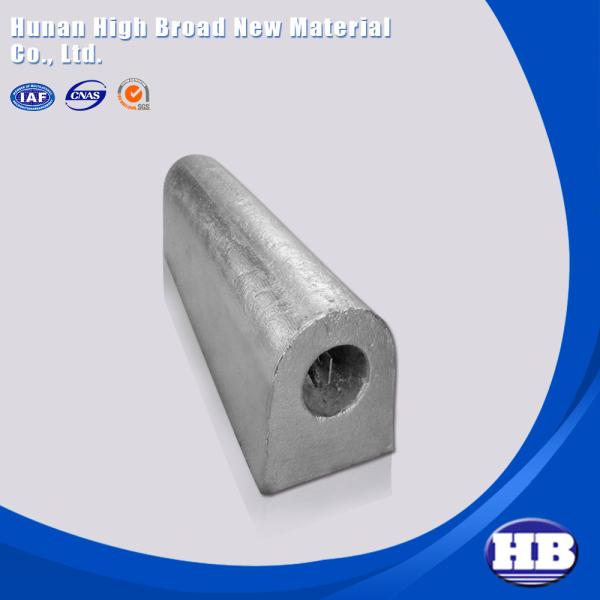

D type

ModelWeightmagnesium alloy Sacrificial anode mm(inch)
ABC
9D24.082(9)69.9(23/4)549.3(215/8)76.2(3)
14D26.350(14)69.9(23/4)850.9(331/2)76.2(3)
20D29.072(20)69.9(23/4)1212.9(473/4)76.2(3)
9D34.082(9)88.9(31/2)352.4(137/8)95.3(3 3/4)
17D37.711(17)88.9(31/2)641.4(251/4)95.3(3 3/4)
32D514.515(32)139.7(51/2)504.8(197/8)146.1(5 3/4)
48D521.772(48)139.7(51/2)765.2(301/8)146.1(5 3/4)
60D427.216(60)114.3(41/2)114.3(41/2)1460.5(57 1/2)

ASTM Magnesium Anode As Sacrificial Anode In Cathodic Protection
S type

ModelWeightmagnesium alloy Sacrificial anode inch(mm)
ABCD
3S31.4(3)3 4/5(96.5)3(76.2)3(76.2)4.7(119.4)
9S24.1(9)2 4/5(71.1)2(50.8)2(50.8)28(711.2)
17S27.7(17)2 4/5(71.1)2(50.8)2(50.8)52.5(1333.5)
32S514.5(32)5(127.0)4 1/5(106.7)5(127.0)21.2(538.5)
40S318.1(40)3 4/5(96.5)3(76.2)3(76.2)60(1524.0)
48S521.8(48)5(127.0)4 1/5(106.7)5(127.0)31.5(800.1)
60S427.2(60)4(101.6)3 1/5(81.3)4(101.6)62(1574.8)

ASTM Magnesium Anode As Sacrificial Anode In Cathodic Protection
C type

ModelDiameter(mm)High potential magnesium anode L(mm)

AZ63 magnesium anode
L(mm)

Weight(Kg)
C25753363252.56
C361142021933.7
C411142302204.2
C771144314127.8
C10011456053610.2
C14514649447214.7
C22717852049722.9
C2741141528146228.2

ASTM Magnesium Anode As Sacrificial Anode In Cathodic Protection

Note: The specification is for reference, If you want to know more details, Please contact us.
